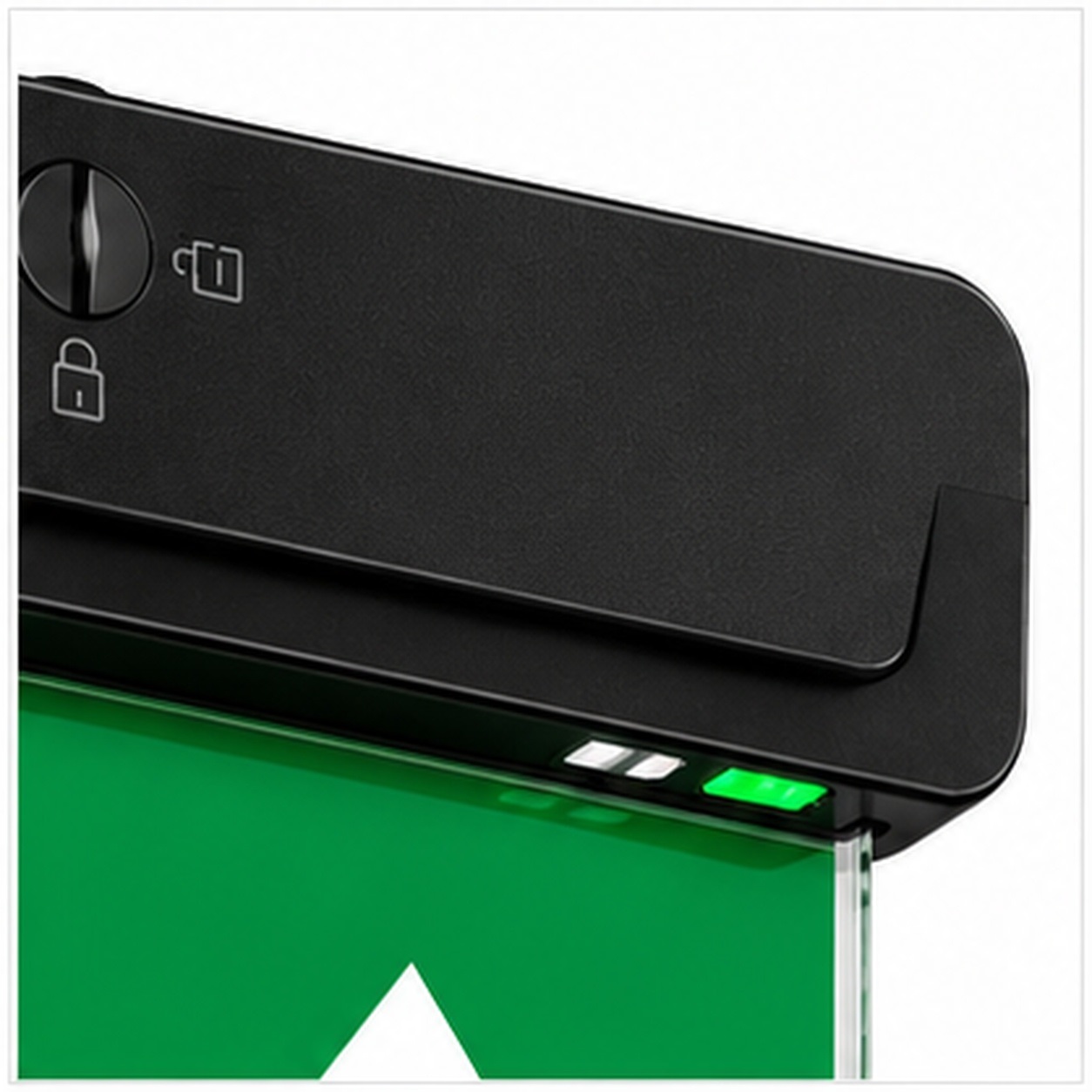

Red Arrow Athena LED Emergency Exit Sign Selectable Self Test Black – ANA/30/ST/V2/B

Description

Red Arrow Athena LED Emergency Exit Sign Selectable Self Test Black – ANA/30/ST/V2/B

Part No                        Description

ANA/30/ST/V2/B          Athena LED Emergency Exit Sign Selectable Self Test Black

The Red Arrow Athena ANA/30/ST/V2/B Multi-Positional LED Emergency Exit Sign is a versatile, energy-efficient emergency lighting solution designed to provide clear and reliable escape route identification in commercial, industrial and public buildings.

Featuring a stylish black RAL9005 finish, the Athena exit sign combines modern aesthetics with dependable emergency lighting performance, making it ideal for offices, schools, hotels, retail premises, corridors and other areas requiring illuminated emergency exit signage.

Designed with installation flexibility in mind, the Athena offers five mounting options, allowing the fitting to be adapted to suit different building layouts and installation requirements.

Versatile Installation – 5 Mounting Options

The Athena emergency exit sign offers exceptional installation flexibility with five mounting configurations:

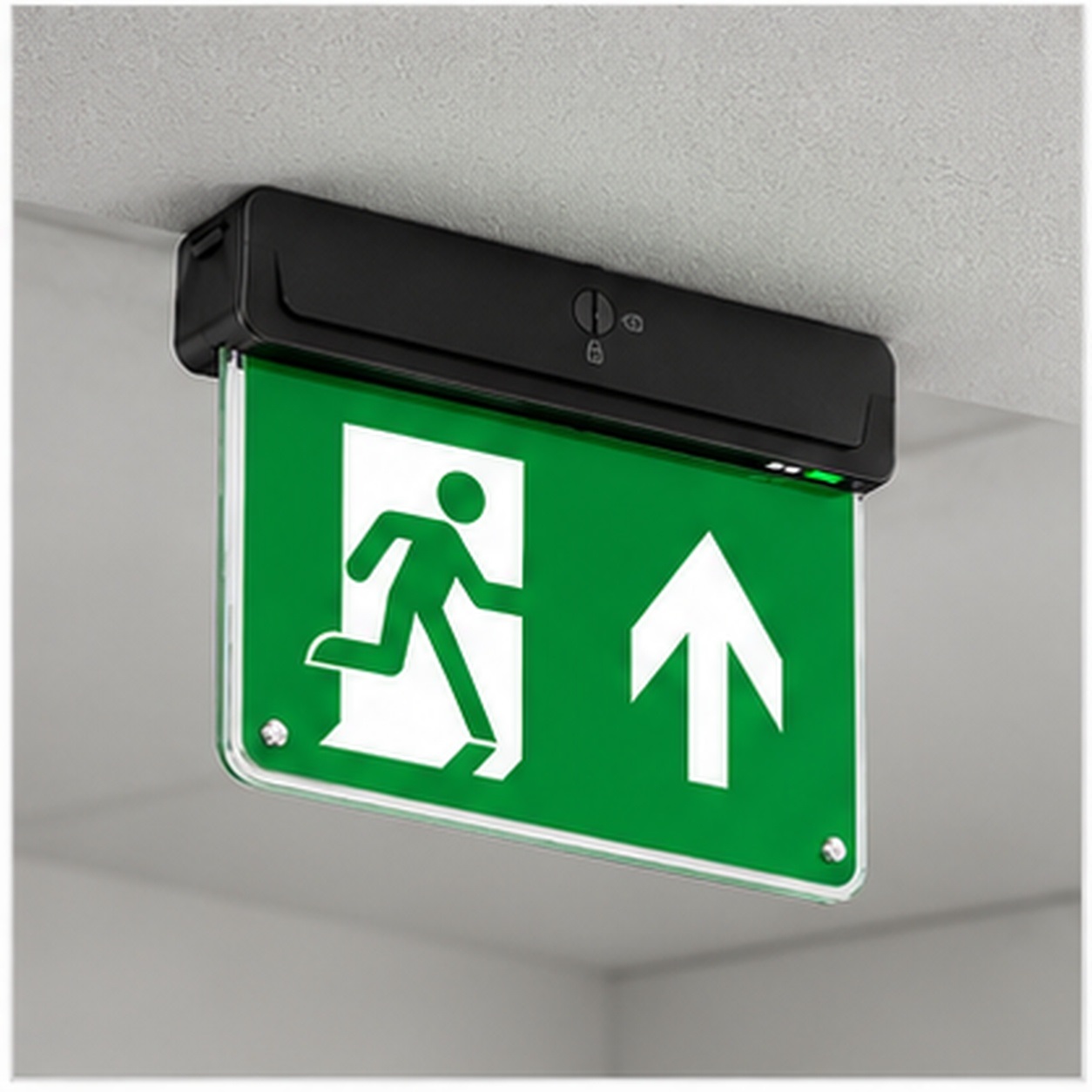

• Surface Ceiling Mounted – Standard mounting option.

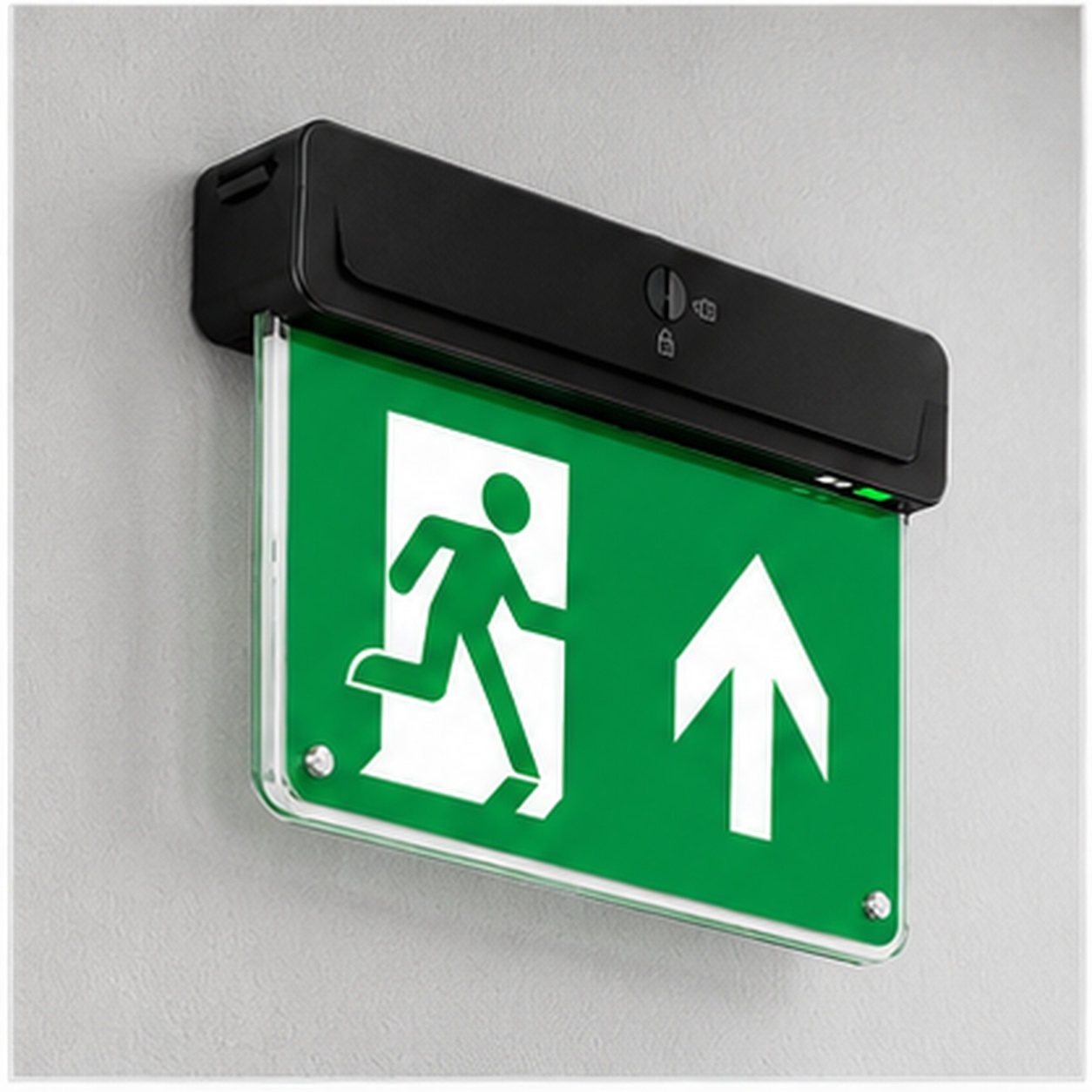

• Wall Mounted – Standard mounting option.

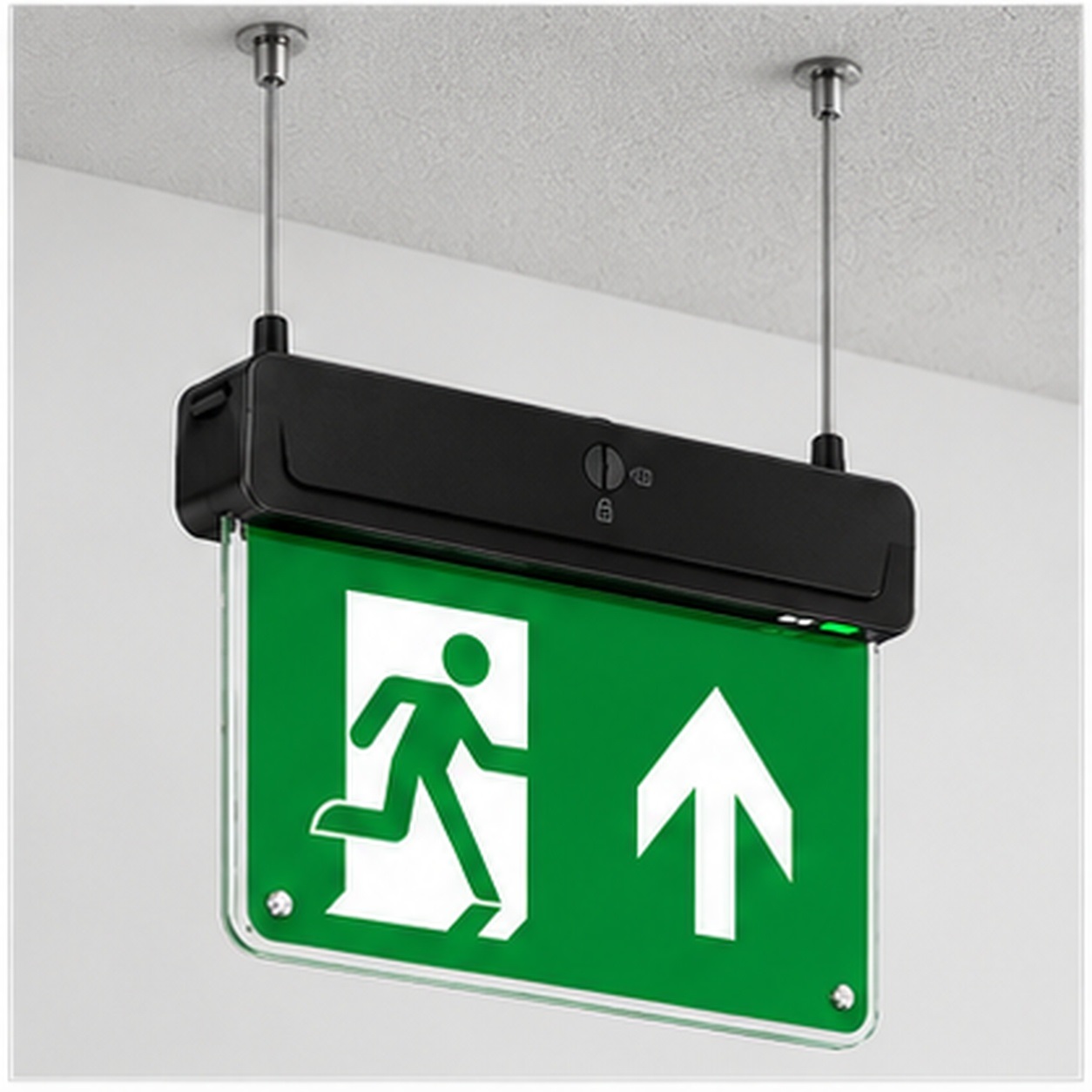

• Suspended Mounted – Optional suspension accessories required.
• Recessed Mounted – Optional recessed mounting accessories required.
• Flag Mounted – Optional flag mounting accessories required.

Surface ceiling and wall mounting are supported as standard, while suspension, recessed and flag mounting accessories are available separately.

Maintained or Non-Maintained Emergency Operation

The Athena exit sign can be configured for either maintained or non-maintained operation, providing flexibility to suit different emergency lighting requirements.

• Maintained Mode: The sign remains illuminated during normal operation and continues operating from its emergency battery during a mains power failure.
• Non-Maintained Mode: The sign illuminates automatically when the normal mains supply fails.

This dual-function capability allows one fitting to accommodate different installation requirements.

Selectable Self-Test or Manual-Test Function

The Athena features selectable self-test and manual-test emergency operation, allowing installers to choose the preferred testing configuration.

Self-test functionality helps simplify routine emergency lighting inspections, while manual-test operation provides an alternative where testing is managed separately.

3 Hour Emergency Battery Backup

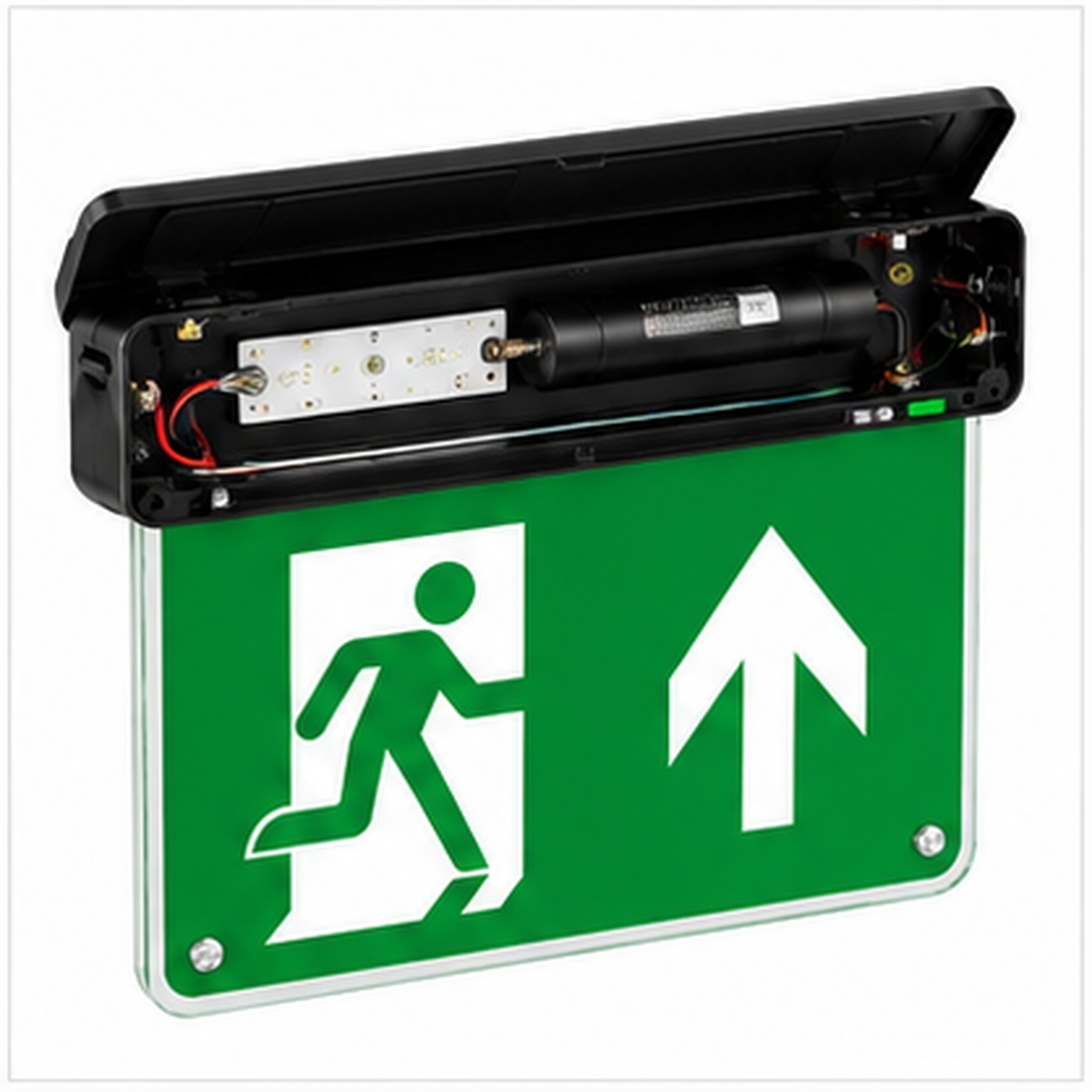

Equipped with modern LiFePO4 (Lithium Iron Phosphate) battery technology, the Athena provides up to 3 hours of emergency illumination following a mains power failure.

The long-lasting battery technology offers reliable emergency operation and is supported by a 5-year emergency battery warranty.

30 Metre Viewing Distance

The Athena exit sign provides a 30 metre viewing distance, helping occupants identify designated escape routes clearly.

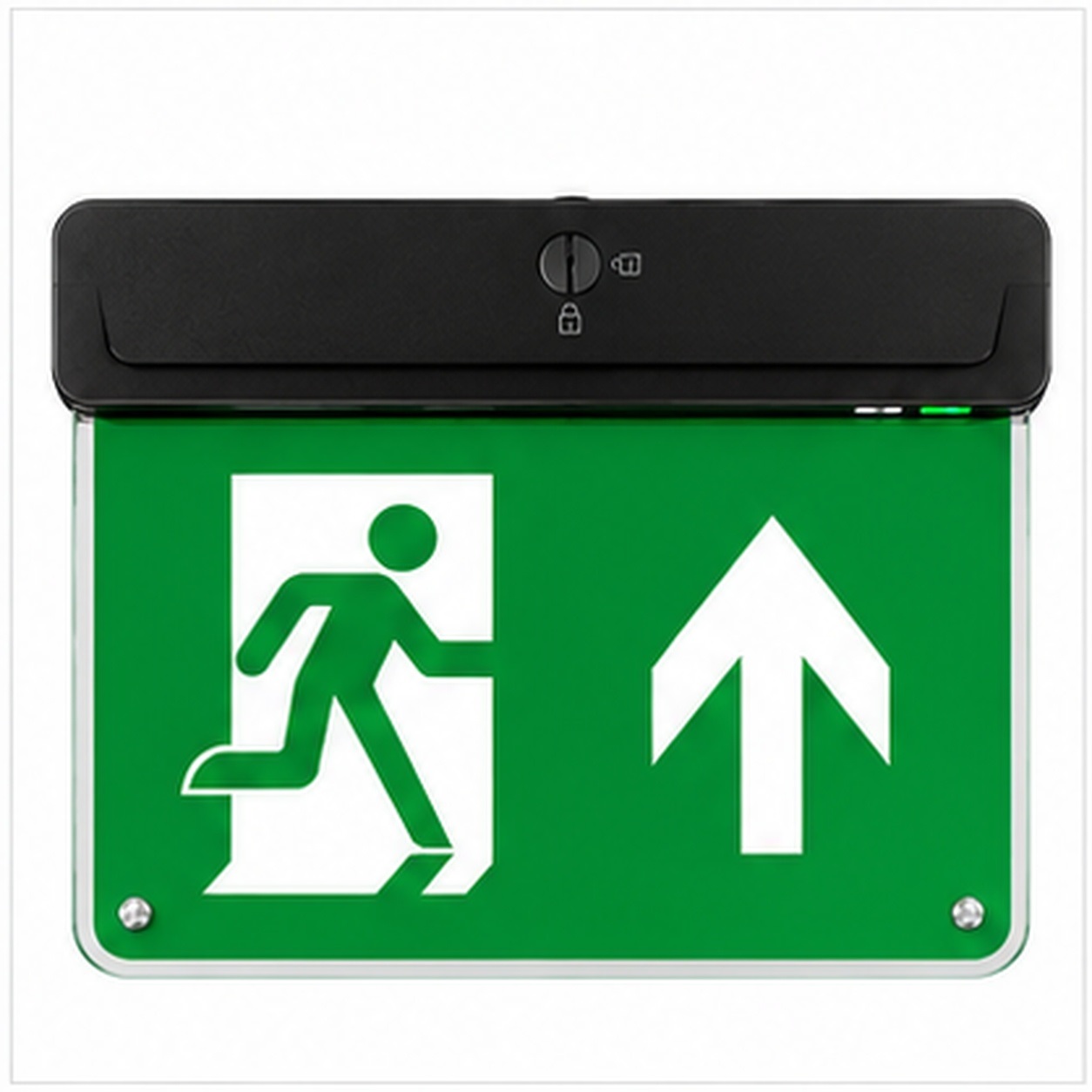

Supplied with an up-arrow running-man legend as standard, the fitting is suitable for indicating straight-ahead escape routes. Additional directional legends are available separately.

Energy-Efficient LED Technology

Using just 2.8W, the Athena delivers energy-efficient LED illumination with a 6500K daylight colour appearance.

The fitting produces 20 lumens and features an LED life expectancy of approximately 36,000 hours, helping reduce ongoing maintenance requirements.

Its durable polycarbonate housing and acrylic cover provide a practical, lightweight construction suitable for indoor installations.

Key Features & Benefits

• 30m Viewing Distance – Clear identification of emergency escape routes.
• 3 Hour Emergency Duration – Reliable battery-backed emergency illumination.
• Selectable Self-Test / Manual Test – Flexible emergency testing options.
• Maintained / Non-Maintained Operation – Configurable to suit installation requirements.
• 5 Mounting Options – Ceiling, wall, suspended, recessed or flag mounting.
• LiFePO4 Battery Technology – Reliable lithium iron phosphate emergency battery.
• 2.8W LED Consumption – Energy-efficient emergency lighting.
• 6500K Daylight LED – Bright, clear illumination.
• Black RAL9005 Finish – Contemporary appearance.
• IP20 Rated – Suitable for indoor applications.
• Class II Electrical Protection – Double-insulated construction.
• Up Arrow Legend Included – Additional legends available separately.
• 5 Year Product & Battery Warranty – With 2-year on-site warranty.
• UKCA & CE Approved – Manufacturer-declared approvals.

Technical Specifications

Specification	Details
Manufacturer	Red Arrow Electrical
Product Range	Athena
Part Number	ANA/30/ST/V2/B
Product Type	Multi-Positional LED Emergency Exit Sign
Colour	Black RAL9005
Voltage	220–240V AC
Frequency	50/60Hz
Wattage	2.8W
Light Output	20 Lumens
Emergency Light Output	20 Lumens
Colour Temperature	6500K Daylight
Emergency Duration	3 Hours
Battery Technology	LiFePO4
Emergency Testing	Selectable Self-Test / Manual Test
Operating Mode	Maintained / Non-Maintained
Viewing Distance	30 Metres
Mounting Options	5
IP Rating	IP20
Electrical Class	Class II
Housing Material	Polycarbonate
Cover Material	Acrylic
LED Life Expectancy	36,000 Hours
Operating Temperature	0°C to +45°C
Dimensions	313 × 42 × 212mm
Net Weight	0.54kg
Product Warranty	5 Years
Emergency Battery Warranty	5 Years
On-Site Warranty	2 Years
Approvals	UKCA / CE
Barcode (EAN)	5055807631570

Typical Applications

The Red Arrow Athena LED Emergency Exit Sign is suitable for a wide range of indoor commercial and public environments, including:

• Offices and commercial buildings
• Schools, colleges and universities
• Hotels and hospitality premises
• Retail shops and shopping centres
• Warehouses and industrial premises
• Hospitals and healthcare facilities
• Corridors, stairwells and designated escape routes

Why Choose the Red Arrow Athena Emergency Exit Sign?

The Red Arrow Athena ANA/30/ST/V2/B combines installation versatility, energy-efficient LED technology and dependable emergency battery backup in one stylish fitting.

With selectable testing, maintained or non-maintained operation, a 30m viewing distance and five possible mounting arrangements, it provides a flexible solution for contractors, electrical installers and facilities maintenance teams.

Backed by a 5-year manufacturer warranty, the Athena is a practical choice for reliable indoor emergency exit signage.

Please Note: The fitting is supplied with an up-arrow legend. Alternative legends and accessories for suspended, recessed and flag mounting are available separately.
