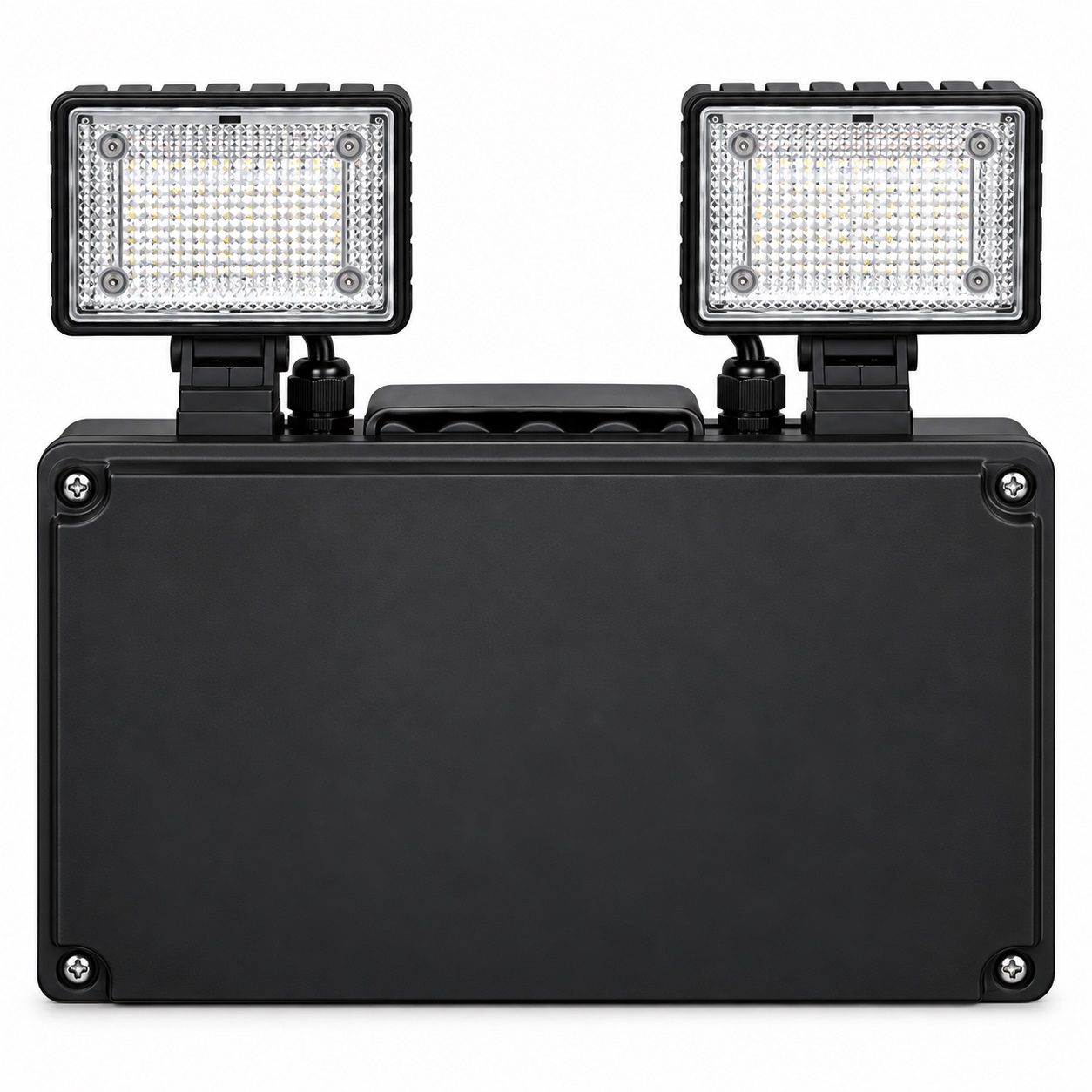

Red Arrow Juno 65 Emergency LED Twin Spot Self Test Black – JUN65/500/ST/V2/B

Description

Red Arrow Juno 65 Emergency LED Twin Spot Self Test Black – JUN65/500/ST/V2/B

Part No                               Description

JUN65/500/ST/V2/B           230V IP65 2 x 3W LED Twin Emergency Spotlight

The Red Arrow Juno 65 JUN65/500/ST/V2/B LED Emergency Twin Spot is a robust, high-performance emergency lighting solution designed to provide reliable illumination during a mains power failure. Featuring two fully adjustable LED projector flood heads, this versatile emergency light delivers 500 lumens of bright 6500K daylight illumination, making it ideal for commercial, industrial and demanding environments where dependable emergency lighting is essential.

Designed for non-maintained emergency operation, the Juno 65 automatically provides emergency illumination when the normal mains lighting supply fails. Its powerful LED output and adjustable twin-head design make it particularly suitable for higher mounting applications where flexible light distribution is required.

With an IP65 weatherproof rating and IK08 impact resistance, the Juno 65 is engineered to withstand challenging conditions, including wet, dusty and industrial environments. The durable black polycarbonate enclosure provides excellent protection while maintaining a professional appearance.

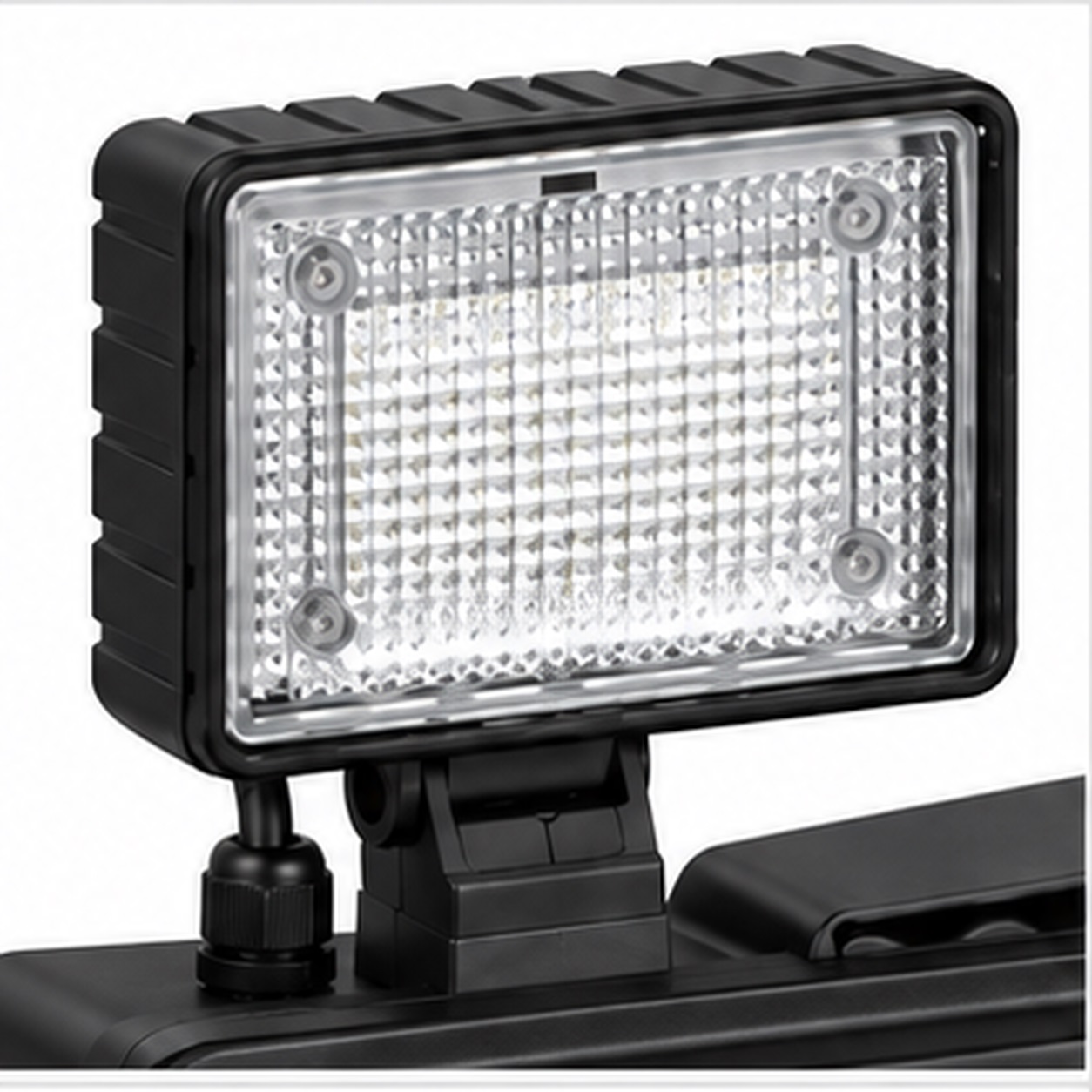

Fully Adjustable Twin LED Flood Heads

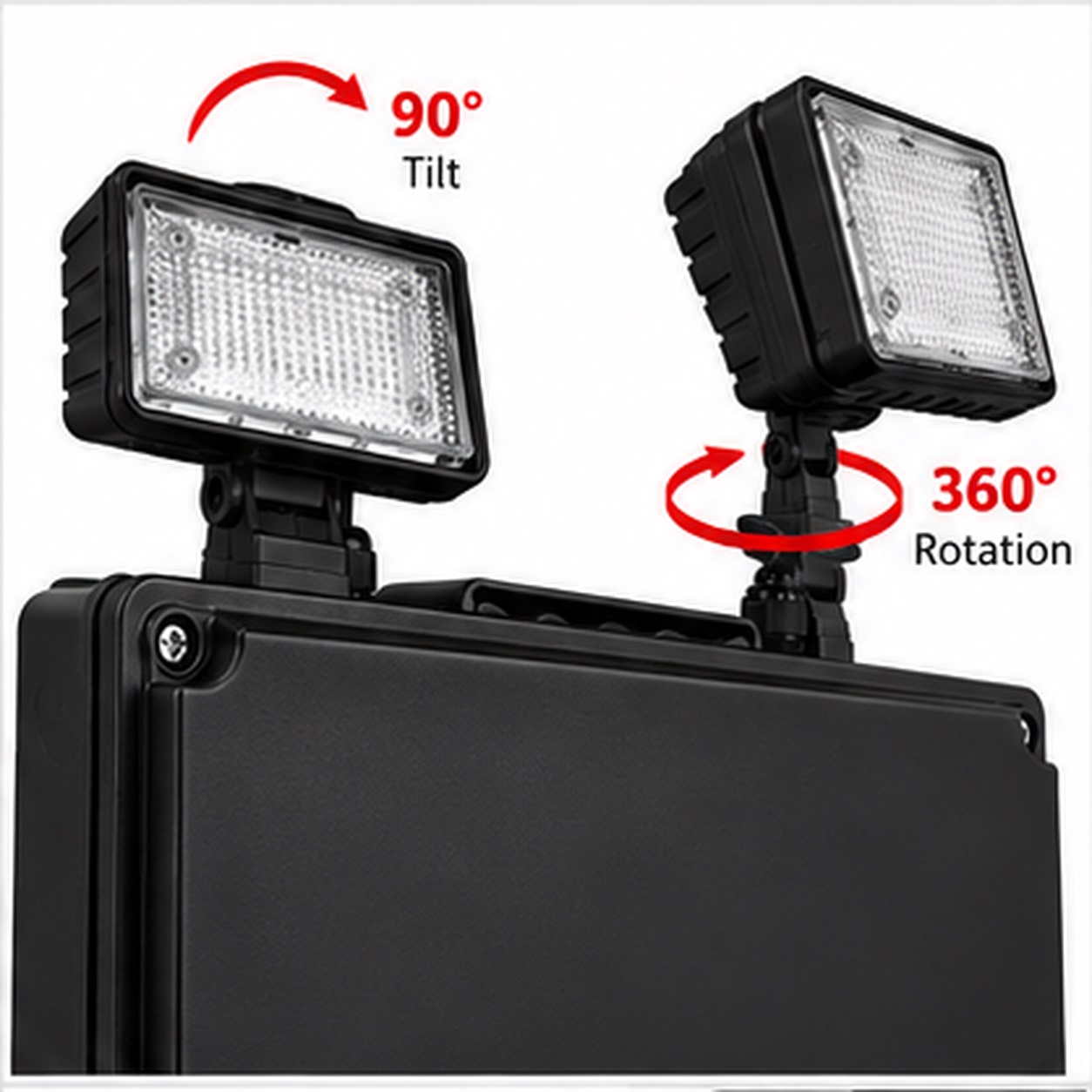

The Juno 65 features two independently adjustable LED projector heads, allowing the direction of emergency illumination to be tailored to the installation.

This flexible design enables light to be directed towards escape routes, exits, walkways and other areas requiring emergency illumination.

Delivering 500 lumens at just 4.5W, the fitting provides an impressive luminous efficacy of 111 lumens per watt, combining effective emergency lighting with energy-efficient LED technology.

Selectable Self-Test or Manual Test

Designed to simplify emergency lighting maintenance, the Juno 65 incorporates selectable self-test and manual test functionality.

This allows the emergency lighting test method to be configured to suit the installation and maintenance requirements.

3 Hour Emergency Duration

Equipped with a LiFePO4 lithium iron phosphate battery, the Juno 65 provides a rated 3-hour emergency operating duration, helping maintain essential illumination during a power failure.

The LiFePO4 battery technology offers dependable emergency lighting performance, supported by a manufacturer’s 5-year emergency battery warranty.

IP65 Weatherproof and IK08 Impact Resistant

Manufactured with a durable polycarbonate housing and diffuser, the Juno 65 is designed for demanding installations.

Its IP65 rating provides protection against dust ingress and water jets, making it suitable for wet and dusty environments.

The IK08 impact resistance provides additional protection against mechanical impacts, making this emergency twin spot suitable for industrial and commercial applications.

Key Features

• 500 Lumens Emergency Output – Bright, effective emergency illumination.
• 3 Hour Emergency Duration – Provides emergency lighting during mains power failure.
• Non-Maintained Operation – Emergency illumination activates upon mains supply failure.
• Twin Adjustable LED Flood Heads – Flexible positioning to direct light where required.
• Selectable Self-Test / Manual Test – Flexible emergency lighting testing options.
• IP65 Rated – Dust-tight and protected against water jets.
• IK08 Impact Resistance – Robust construction for demanding environments.
• 4.5W LED Technology – Energy-efficient emergency lighting.
• 6500K Daylight White – Clear, bright emergency illumination.
• LiFePO4 Battery – Reliable lithium iron phosphate emergency battery technology.
• Class II Electrical Protection – Double-insulated electrical construction.
• Black RAL9005 Finish – Professional black polycarbonate housing.
• 36,000 Hour LED Life Expectancy – Long-lasting LED performance.
• 5 Year Manufacturer’s Warranty – Includes a 5-year emergency battery warranty.

Technical Specifications

Specification	Details
Manufacturer	Red Arrow Electrical
Product Range	Juno 65
Part Number	JUN65/500/ST/V2/B
Product Type	LED Emergency Twin Spot
Emergency Operation	Non-Maintained
Test Function	Selectable Self-Test / Manual Test
Emergency Duration	3 Hours
Wattage	4.5W
Lumen Output	500lm
Emergency Lumen Output	500lm
Luminous Efficacy	111lm/W
Colour Temperature	6500K Daylight
Colour Rendering Index	Ra >80
Supply Voltage	220–240V AC
Frequency	50/60Hz
Power Factor	>0.3
IP Rating	IP65
IK Rating	IK08
Electrical Class	Class II
Battery Technology	LiFePO4
Driver Type	Fixed
Housing Material	Polycarbonate
Diffuser Material	Polycarbonate
Colour	Black RAL9005
LED Life Expectancy	36,000 Hours
Operating Temperature	0°C to +45°C

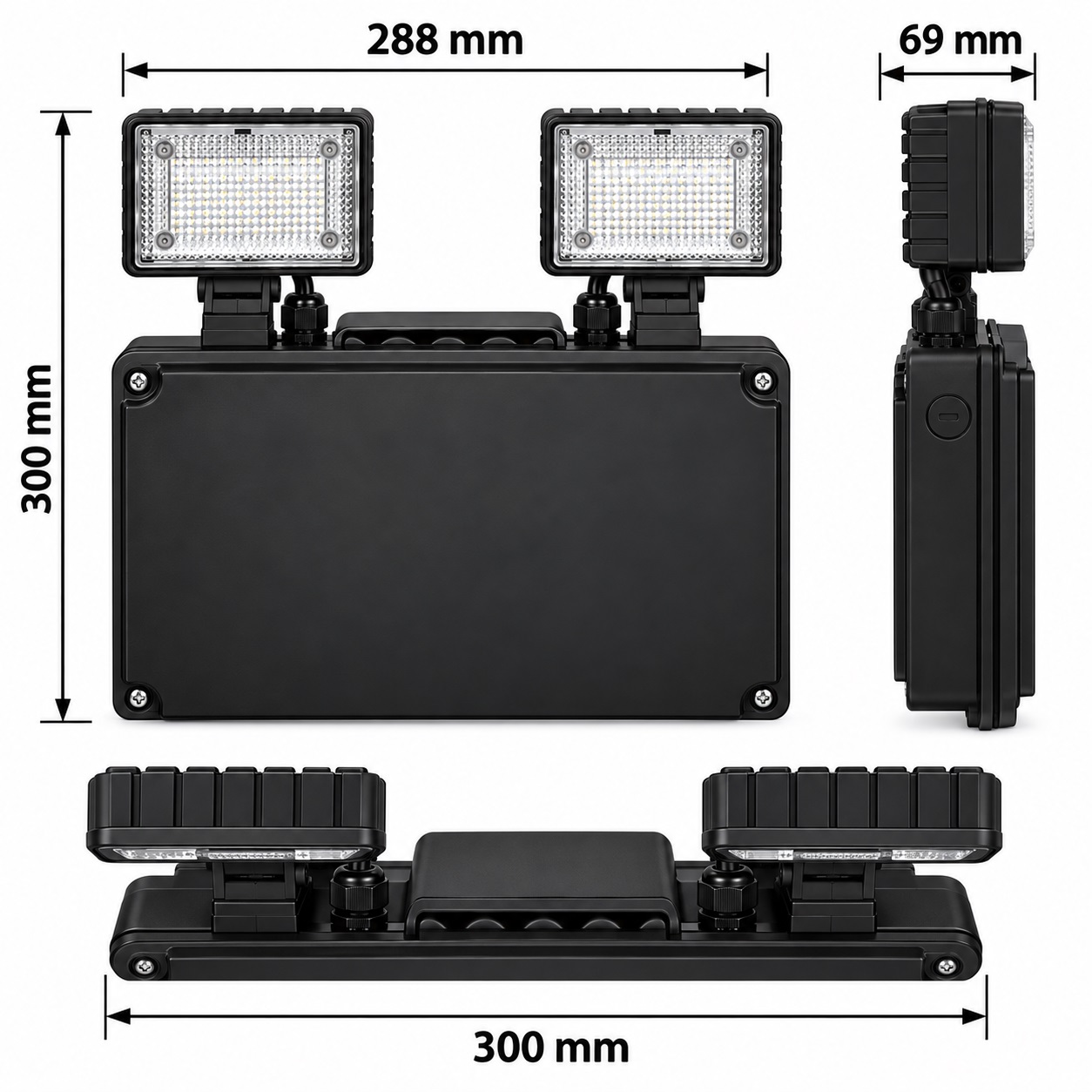

Dimensions	300 × 288 × 69mm (L × W × D)
Net Weight	1.139kg
Approvals	UKCA / CE
Manufacturer’s Warranty	5 Years
Emergency Battery Warranty	5 Years
On-Site Warranty	2 Years
EAN Barcode	5055807631624

Suitable Applications

The Red Arrow Juno 65 LED Emergency Twin Spot is suitable for a wide range of commercial and industrial installations, including:

• Warehouses and distribution centres
• Factories and industrial premises
• Workshops and plant rooms
• Commercial buildings
• Corridors and escape routes
• Loading bays and covered external areas
• Wet and dusty environments
• Higher mounting applications requiring adjustable emergency illumination

Why Choose the Red Arrow Juno 65?

The Red Arrow Juno 65 IP65 Emergency Twin Spot combines powerful emergency illumination, robust construction and flexible installation features in one dependable fitting.

With its adjustable twin LED heads, selectable testing functionality, 3-hour emergency duration and weatherproof IP65 enclosure, it provides a practical emergency lighting solution for demanding commercial and industrial environments.

Backed by a 5-year manufacturer’s warranty, the Juno 65 is an excellent choice for installers, contractors and facilities managers looking for reliable, energy-efficient emergency lighting.

JUN65-500-ST-V2-B – Data Sheet
