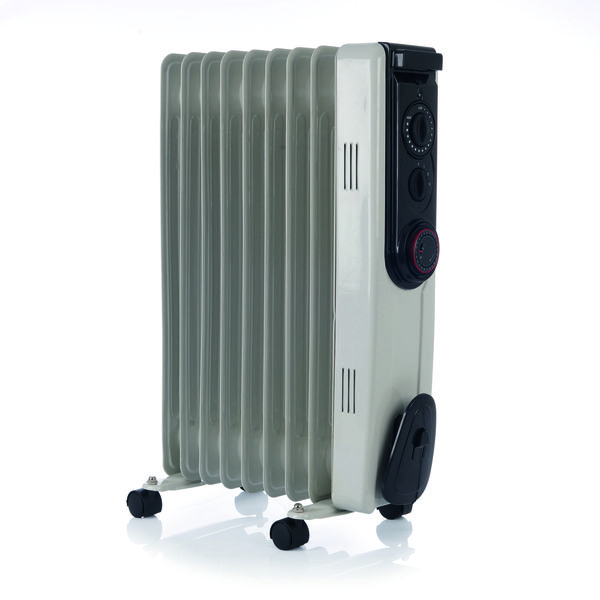

Hyco Riviera Oil Filled Radiator 1.5kW – RAD15Y
Part No Description
RAD15Y Riviera Oil Filled Radiator 1.5kW
Usage:
Portable heater for home and office use.
Features
• Oil filled radiator providing a silent gentle heating solution
• Neon element on indicator
• Moulded pull handle
• This product is only suitable for well insulated spaces or occasional use.
0.7 kW model
• 1 power setting 700 W, adjustable thermostatic control
• 7 fins
• Floor standing on stationary feet
1.5 kW model
• 3 power settings (600, 900 and 1500 W) adjustable thermostatic control
• 7 fins
• Floor standing with smooth rolling castors for easy movement
• Tip over protection
• Cord cable storage
2.0 kW model
• 3 power settings (800, 1200 and 2000 W) adjustable thermostatic control
• 24 hour segment timer
• 9 fins
• Floor standing with smooth rolling castors for easy movement
• Tip over protection
• Cord cable storage
Technical Specification
Outer Casing
Metal
Controls
Thermostat dial.
2.0 kW model only:
24 hour segment timer with 15 minute interval time slots.
Switch to select on all the time or timed operation.
Push segments out for the time interval heater is to be timed on.
Push segments in for the time interval heater is to be timed off.
Safety
Overheat temperature protection.
IP Rating
IPX0
Electrical Connection
Supplied with a pre-wired (1.9m) black flex BS plug, cable entry to the right of the heater.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | Timer | Current (amps) |
|---|---|---|---|
| RAD07Y | 0.7 | No | 3 |
| RAD15Y | 1.5 | No | 6.5 |
| RAD20TY | 2.0 | Yes | 9 |
| Product Code | Height (mm) | Width (mm) | Depth (mm)* | Weight (kg) |
|---|---|---|---|---|
| RAD07Y | 380 | 310 | 100 | 3.6 |
| RAD15Y | 690 | 385 | 160 | 9.8 |
| RAD20TY | 690 | 465 | 160 | 11.8 |
*Depth excluding feet, depth including feet 240mm for 1.5 and 2.0 kW versions and 140mm for 0.7 kW version.
