Wiska Straight Joint Clear c/w 2 Sets of x 4 Insulated Splices 1.5 – 2.5mm² + 2.5 – 6.0mm² – GSA0W
Part No Description
GSA0W Straight Joint Clear c/w 2 Sets of x 4 Insulated Splices 1.5 – 2.5mm² + 2.5 – 6.0mm²

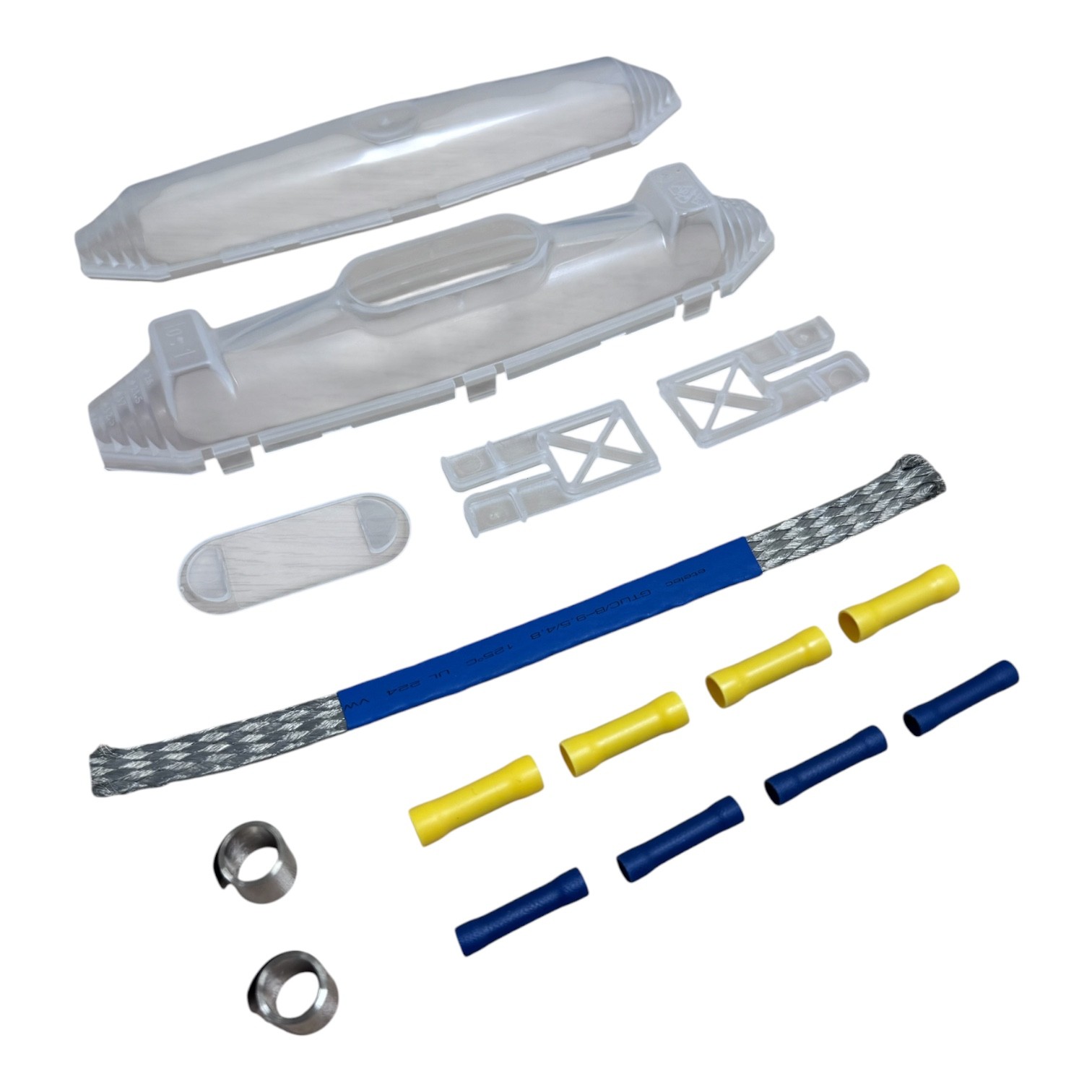

Transparent shell c/w 4 x crimp connectors, 1 x earth braid, 2 x coil springs. Suitable for 1.5-6mm 4 core SWA – NO RESIN INCLUDED
This transparent shell from the Submarine Resin Joints range provides a secure and durable housing for cable connections. Measuring 190 x 45mm, it accommodates cable diameters between 8mm and 26mm with support for up to four cores. The design features half-shells with a snap shut closure for reliability and ease of installation. Supplied with earth braid and spring coils, this enclosure is ideal for maintaining safe, structured connections in electrical installations. Resin is not included.
Key Features
- Transparent shell
- Snap shut closure
- Includes earth braid
- Connector 4 crimp
- 4 cores
- Cable diameter 8 to 26mm
- Min cross section 1.5mm
- Max cross section 6mm
- No resin included
- Half shell design
- Colour / Finish Transparent
Additional Information
- Dimensions (H x W x D) 190 x 45 mm
