Wiska Straight Joint Clear c/w 1 x 5 Pole Insulated Connector Block 4 – 25mm² – GSA2W
Part No Description
GSA2W Straight Joint Clear c/w 1 x 5 Pole Insulated Connector Block 4 – 25mm²

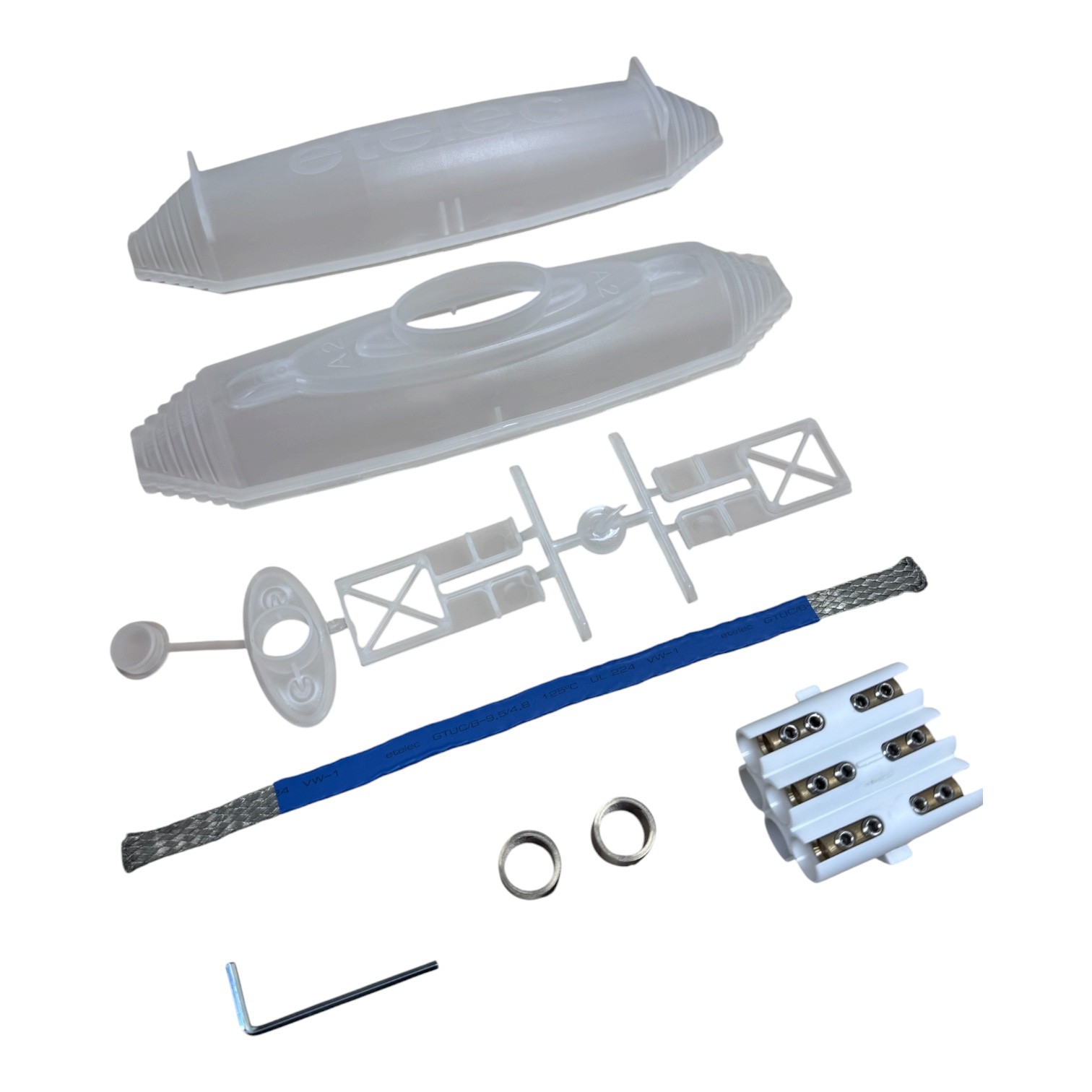

Transparent shell c/w 1 x 5-pole terminal, 1 x earth braid, 2 x coil springs. Suitable for 4-25 5 core SWA – NO RESIN INCLUDED
The GSA2W Submarine Resin Joint Shell provides a durable transparent casing measuring 240 x 62mm, designed for efficient cable protection and inspection. Suitable for cable diameters from 8mm to 35mm, it supports up to 5 cores with cross sections between 1.5mm and 25mm. Featuring snap shut half-shells, the unit includes an earth braid and spring coils for secure connections. This solution is supplied without resin, allowing flexibility for installation requirements.
Key Features
- Transparent shell
- Snap shut closure
- Includes earth braid
- 1 x 5 pole connector
- 5 cores
- Cable diameter 8 to 35mm
- Min cross section 1.5mm
- Max cross section 25mm
- No resin included
- Colour / Finish Transparent
Additional Information
- Dimensions (H x W x D) 240 x 62 mm
