Wiska Combi 206 WH Polypropylene 85 x 49 x 51mm Enclosure White IP66 3×3 Pole Wago Connectors – 10109902
Part No Description
10109902 Combi 206 WH Polypropylene 85 x 49 x 51mm Enclosure White IP66 3×3 Pole Wago Connectors
Complete with 3 x Wago 221-413 3 Pole Connectors
Material | Polypropylene |
Material sealing gasket | TPE |
Temp. range min | -30 °C |
Temp. range max | 100 °C |
Temperatures during install. | -5 °C – 60 °C |
Protection class | IP66 / IP67 |
Glow wire test | 750 °C |
Voltage | 400 V |
Rated cross section | 1,5 mm² |
Terminals/poles | 4 mm² |
Fixing | 4 internal openings |
Ø cable diameter min | 3 mm |
Ø cable diameter max | 12 mm |

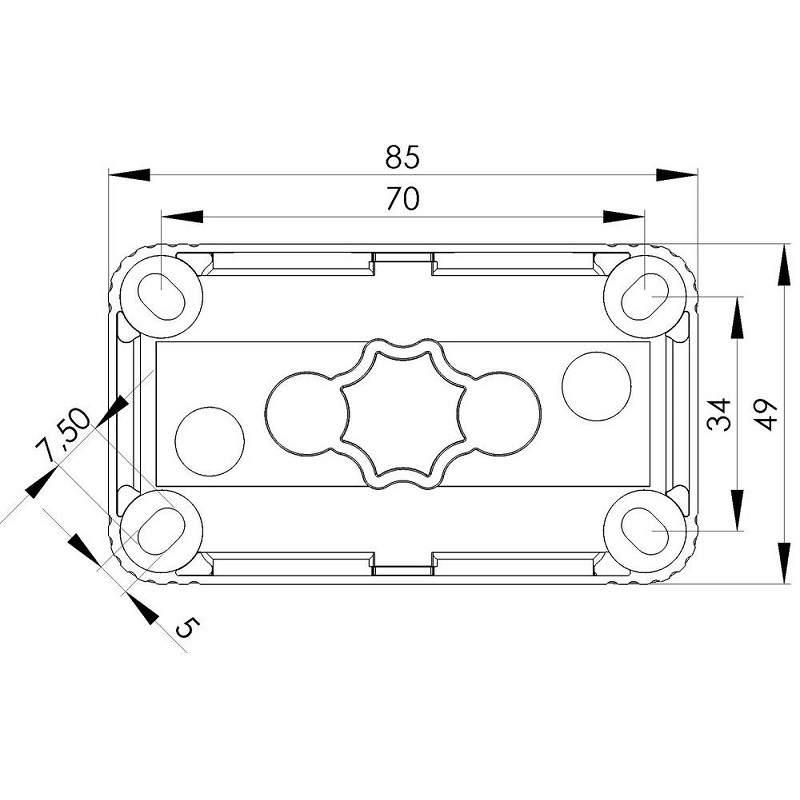

External dimensions LxWxH | 85 x 49 x 51mm |
Using for cable gland | |
Product Color | RAL 9001 |
Order no. RAL 9001 | 10109902 |
Type | COMBI 206 WH / 3xWAGO 221-413 |
