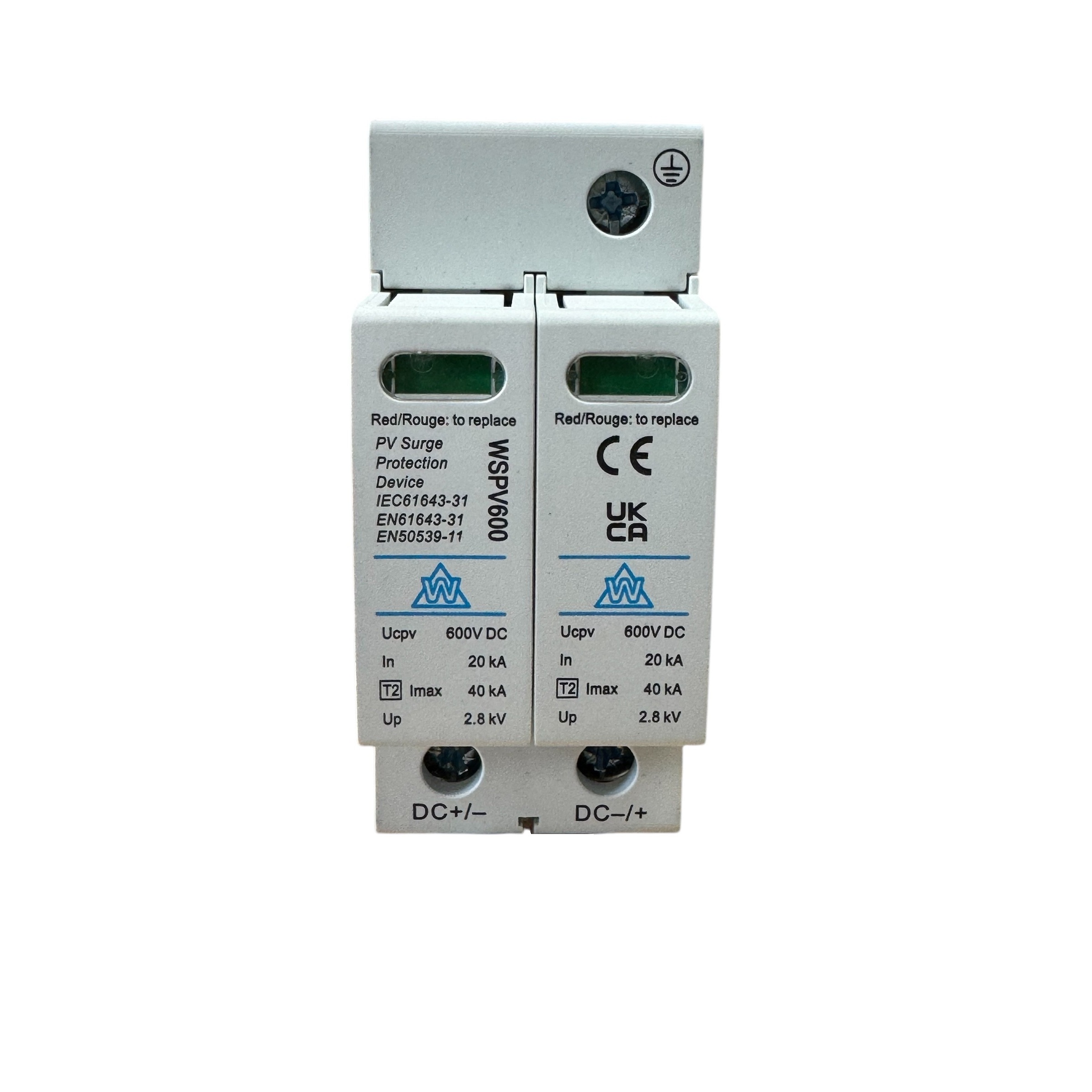

WCED 600VDC Photovoltaic Surge Protection Device (2 Mod) – WSPV600
Part No Description
WSPV600 600VDC Photovoltaic Surge Protection Device (2 Mod)
WSPV PV surge protection devices are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode.
Key Features
Nominal discharge current: (In 8/20us) 20kA
Max. Discharge current: (Imax 8/20us) 40kA
Protection level 3.5KV ≤
Flag indication: / Green = Good Red = Replace
Plug-in module design with status indication
Recommended Torque: 2.5N.m
Complies with IEC61643-31 & EN 50539-11
Surge protection device must be installed upstream of an RCD within the installation
Application
WSPV PV Surge Protection Device (SPD) for photovoltaic PV solar applications. For installation of DC side to protect the terminal device in a PV system, like solar panels and inverters against the effects of lightning surge current.

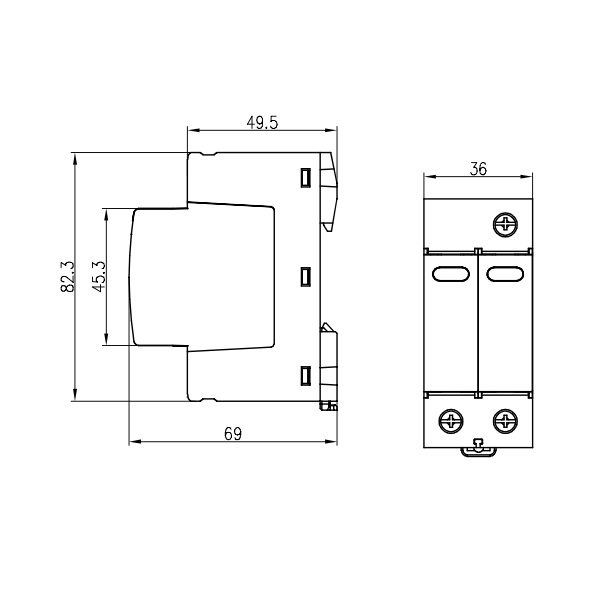

Dimensions (HxWxD): 83mm x 36mm x 69mm
