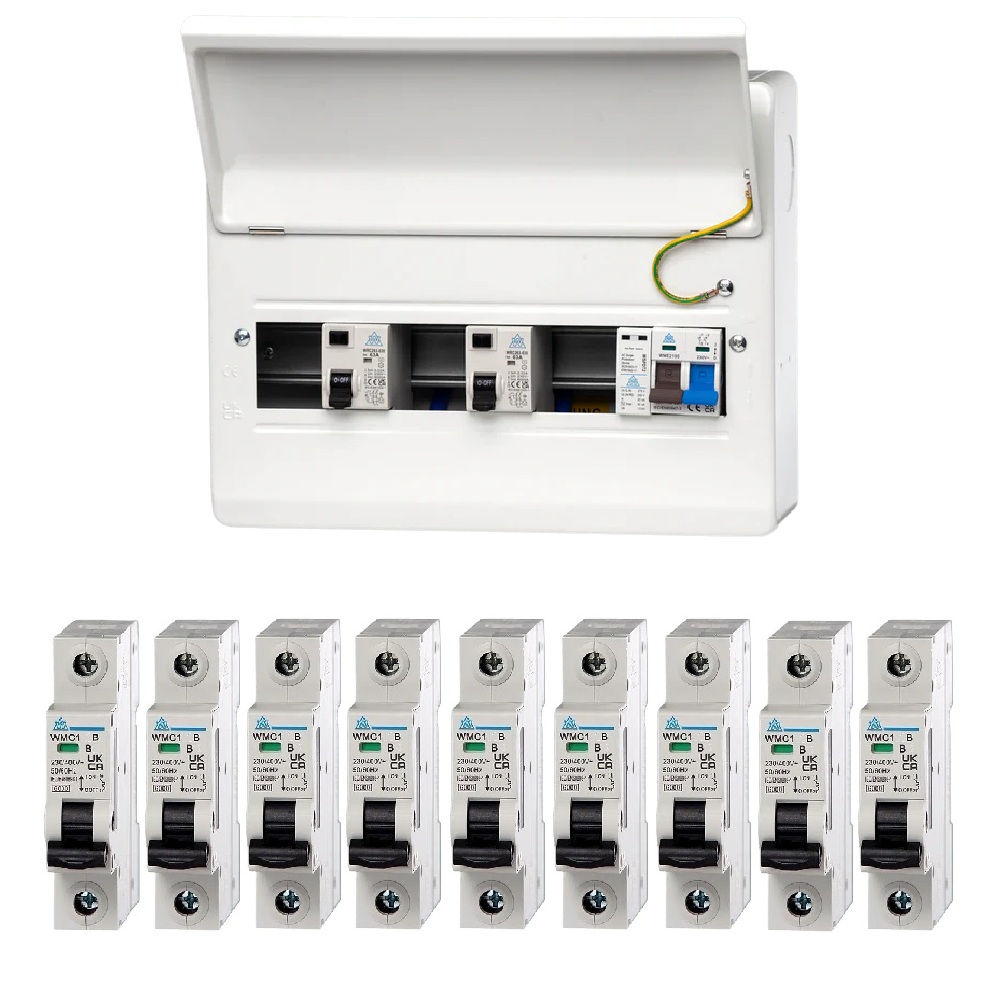

WCED 16 Way Split Load Board c/w 100A M/S, 2x63A RCD + SPD + 9 MCBs (3x6A, 2x16A, 3x32A, 1x40A) – WME1663TR/SP9MCB
Part No Description
WME1663TR/SP9MCB 16 Way Split Load Board c/w 100A M/S, 2x63A RCD + SPD + 9 MCBs (3x6A, 2x16A, 3x32A, 1x40A)
WCED metal consumer units are finished in white polyester powder coating. Multiple circular cable entry knock-outs (25 & 32mm) on top and bottom, 40mm on the sides and back plus larger rear slots.
Raised key holes for secure easy installation. Raised din rail improves cable routing. Supplied with neutral and earth terminal bars, neutral cable and pin style bar.
- Fitted with 1 x 100A 2 Pole Mains Switch
- Fitted with 2 x Type A DP 63A 30mA RCD
- Fitted with 3x6A, 2x16A, 3x32A. 1x40A MCBs
- Multiple circular cable entry knock-outs (25 & 32mm) on the top and bottom, 32mm on the sides, and back plus larger rear slots.
- Raised key holes for secure easy installation.
- Raised Din rail improves cable routing.
- Modern style finished in white polyester powder coating to RAL9010.
- Large and accessible wiring space, with extra space for RCBOs, MCBs.
- Flexible connection allows for various configurations of protected ways.
- Installation clip, busbar caps.
- IP40.
- BSEN1439-3.
Dimensions
16 Way (WxHxD) – 376mm x 240mm x 112mm
