WCED 125A 4 Module Plastic Enclosed Changeover Switch IP65 – WPECOS125IP65
£25.20 Excl. VAT
WCED 125A 4 Module Plastic Enclosed Changeover Switch IP65 – WPECOS125IP65
Part No Description
WPECOS125IP65 125A 4 Module Plastic Enclosed Changeover Switch IP65
The WCED WPECOS125IP65 125A Changeover Switch is a robust, enclosed switching solution designed to provide safe and reliable manual changeover between two electrical power sources, such as a mains electricity supply and a backup generator.
Featuring a 125A 4-pole changeover switch with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, the unit allows the user to manually select between alternative power supplies, helping prevent simultaneous connection of the two sources when correctly installed.

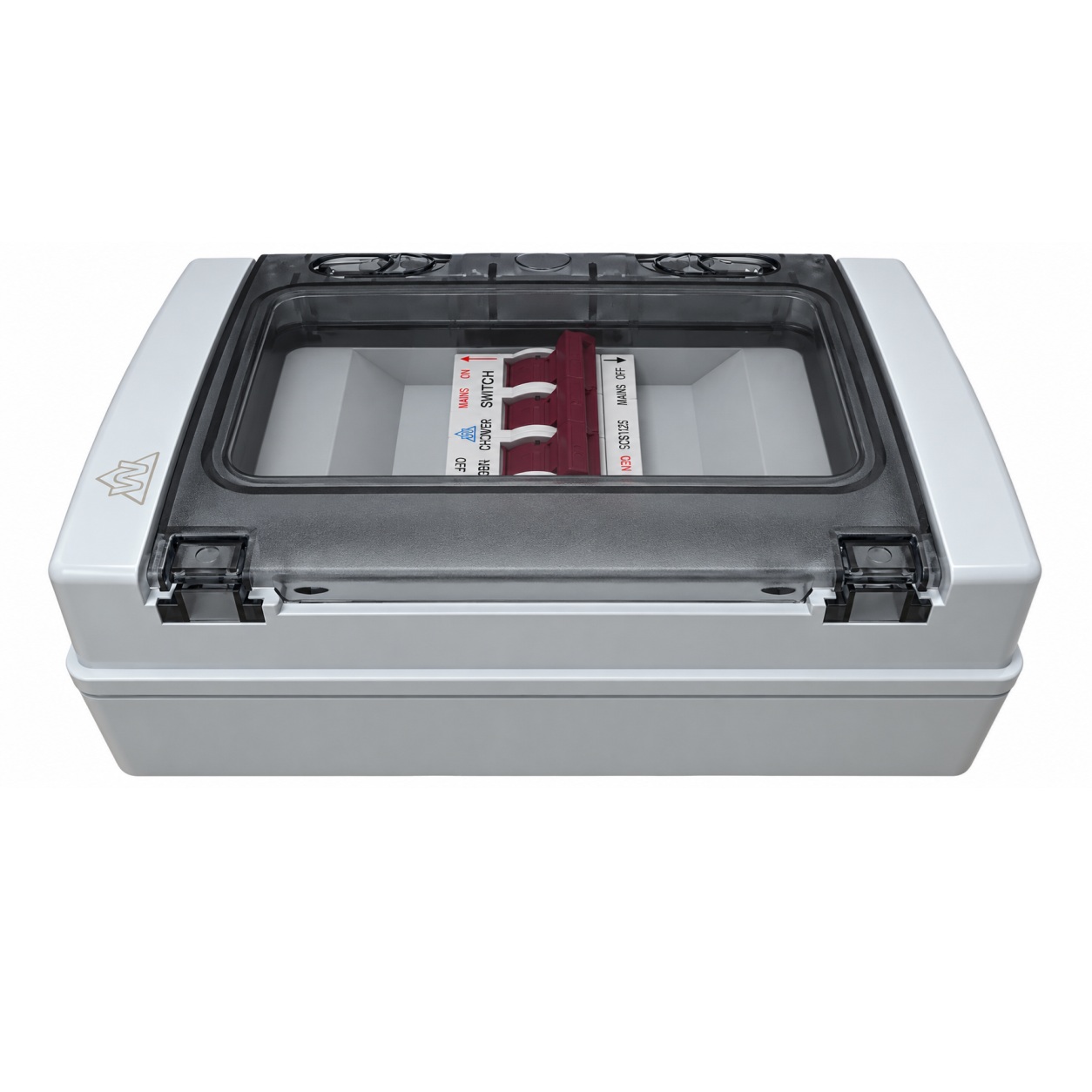

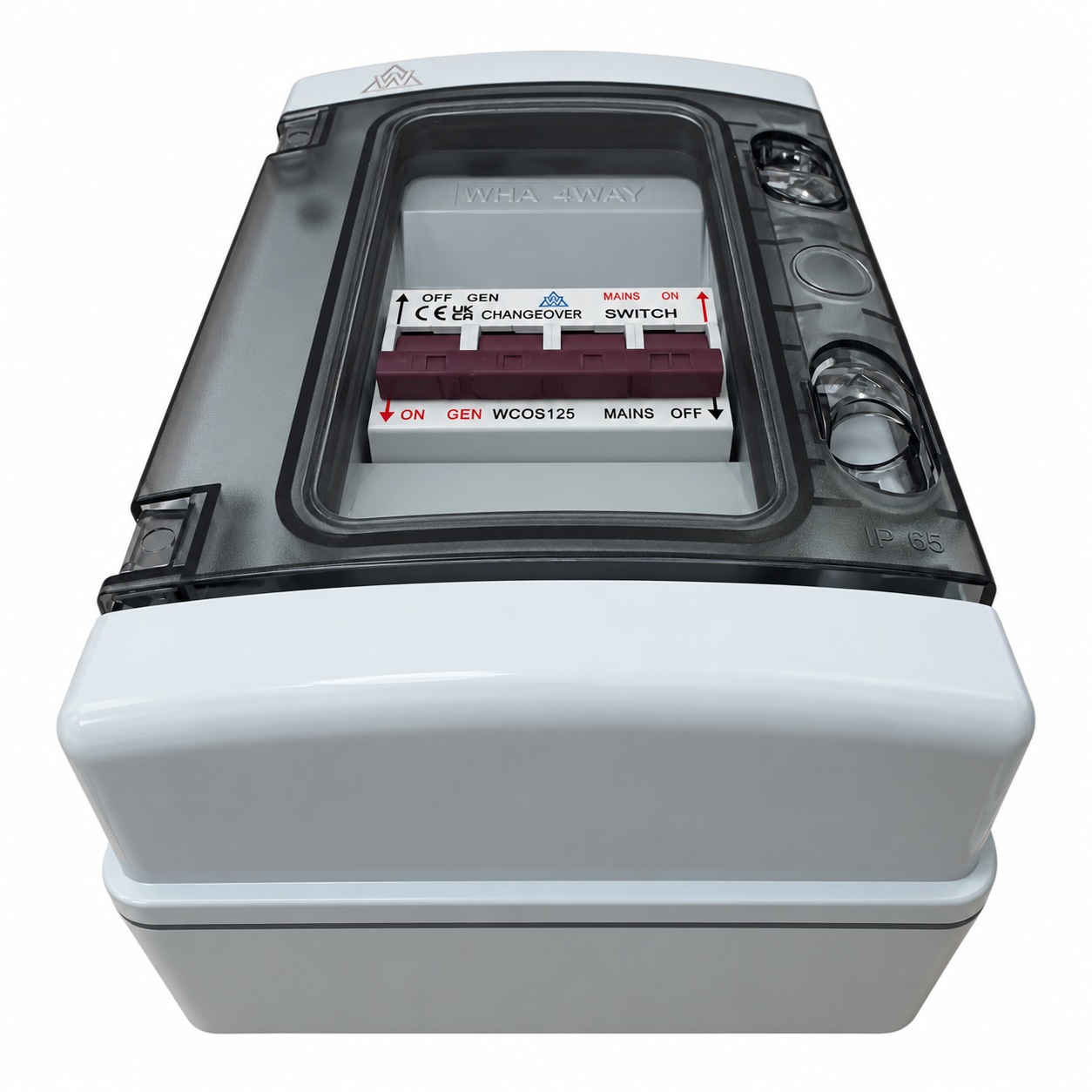

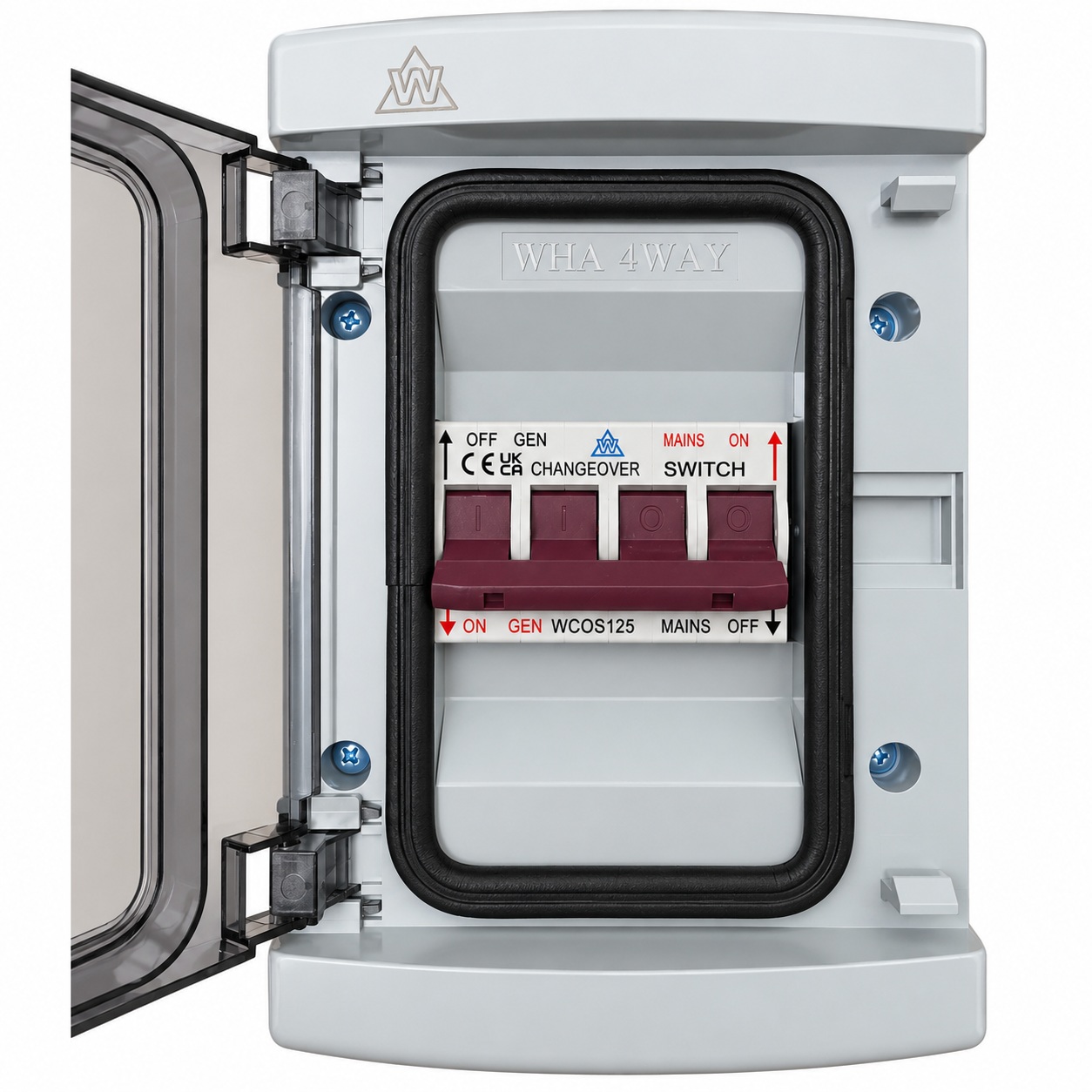

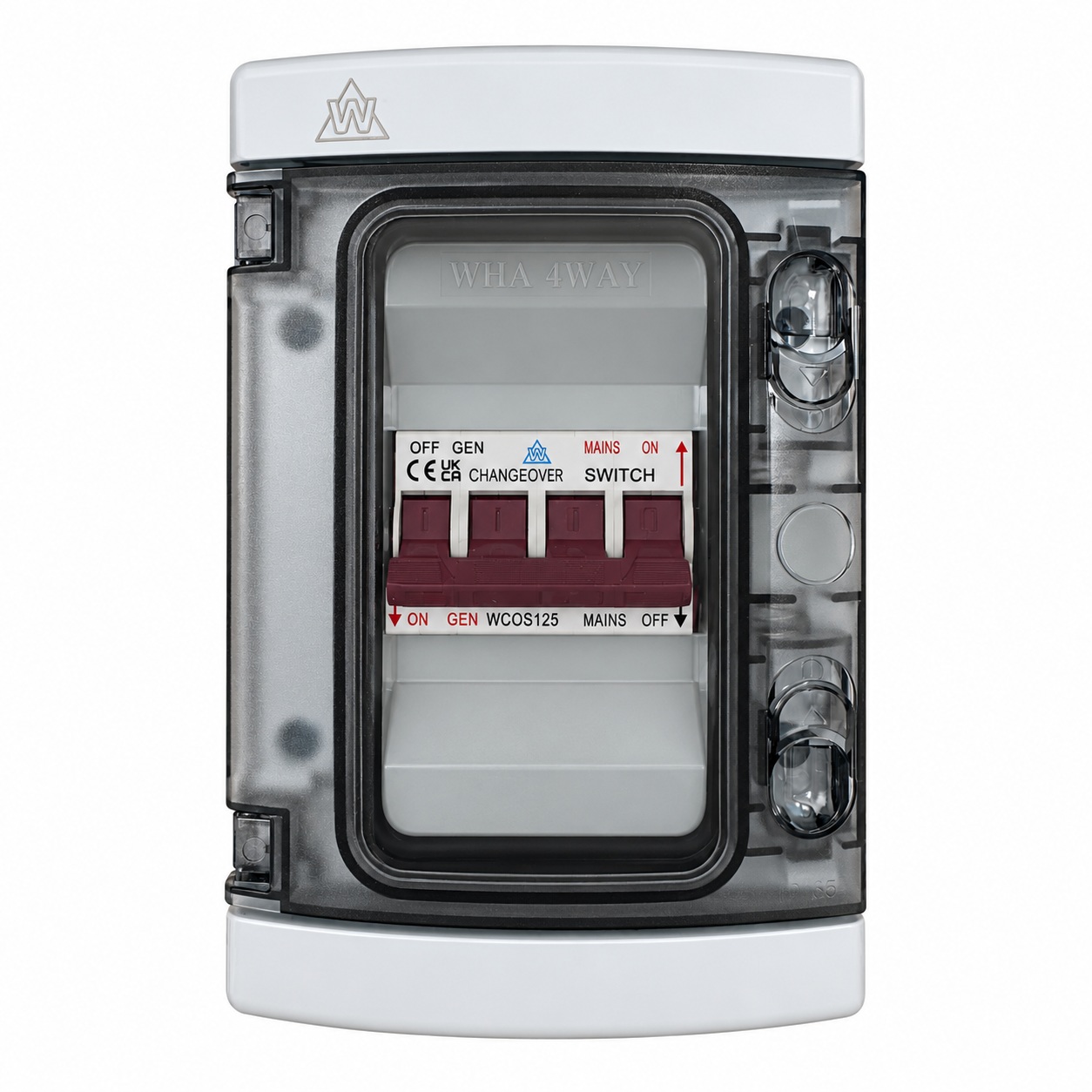

The changeover switch is housed within a durable IP65-rated plastic enclosure, providing protection against dust and water ingress. Suitable for indoor and outdoor installations, the weatherproof housing features a smoked transparent hinged cover, allowing the switch position to be viewed without opening the enclosure.
Designed for residential, commercial and light industrial applications, the WPECOS125IP65 is particularly suitable for installations requiring manual switching between mains power and an alternative supply, including backup generator systems.
Key Features
- 125A Rated Changeover Switch – Suitable for high-current electrical switching applications.
- 4-Pole Configuration – Incorporates 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
- Manual Mains/Generator Changeover – Allows controlled selection between two electrical supplies.
- IP65 Weatherproof Enclosure – Provides protection against dust and water ingress.
- Smoked Transparent Cover – Allows visual inspection of the switch without opening the enclosure.
- Durable Plastic Construction – Robust enclosure suitable for indoor and outdoor environments.

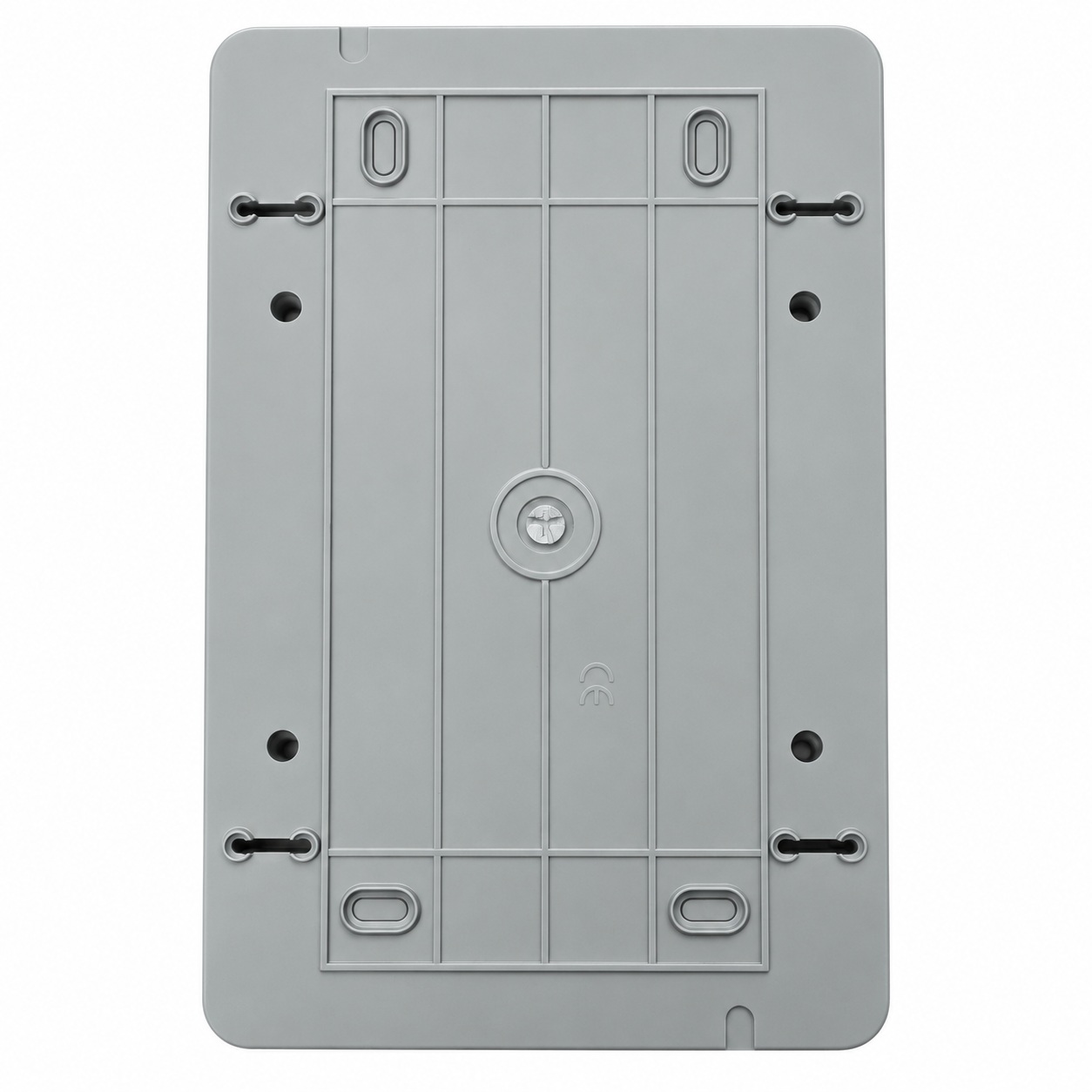

- Wall-Mountable Design – Convenient for fixed electrical installations.

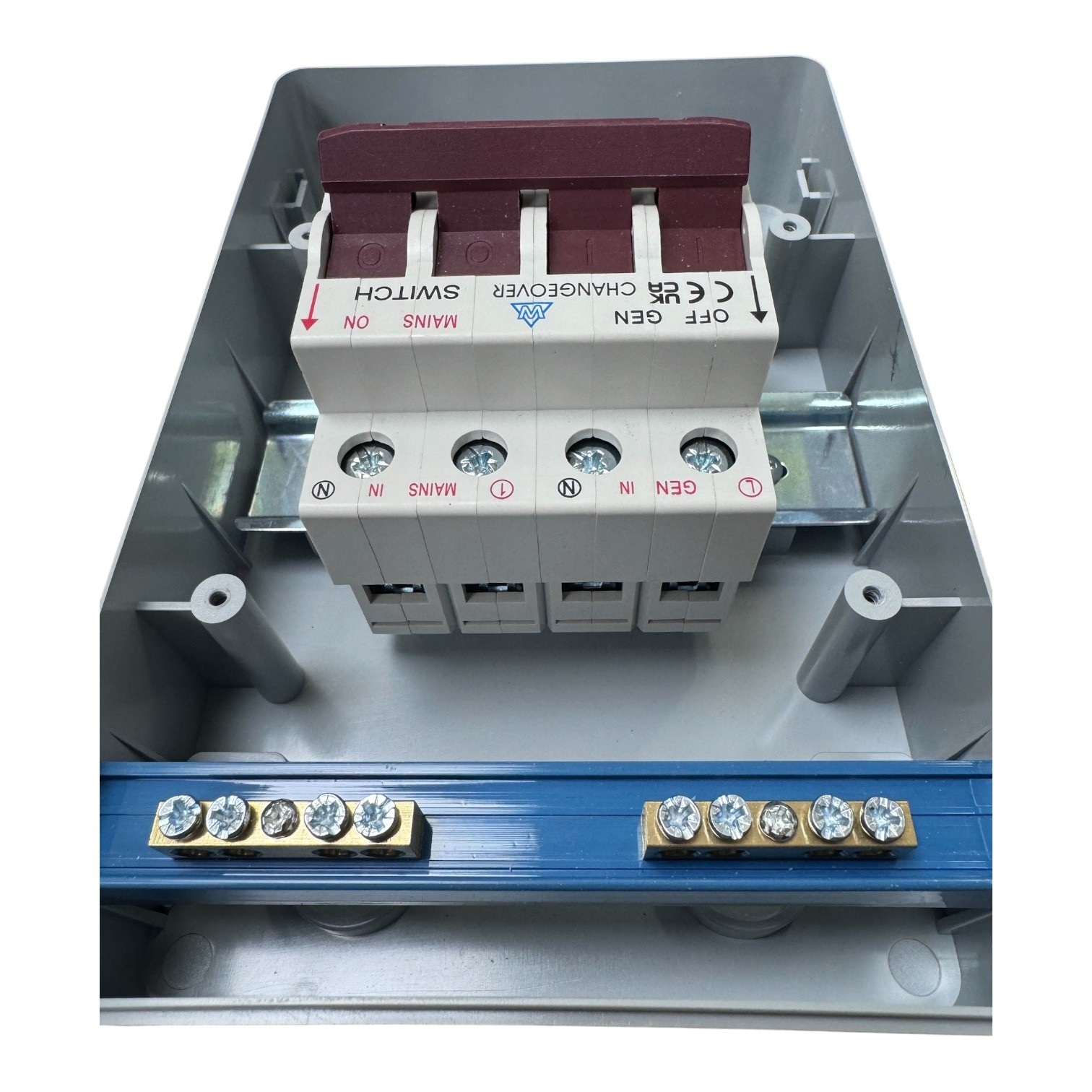

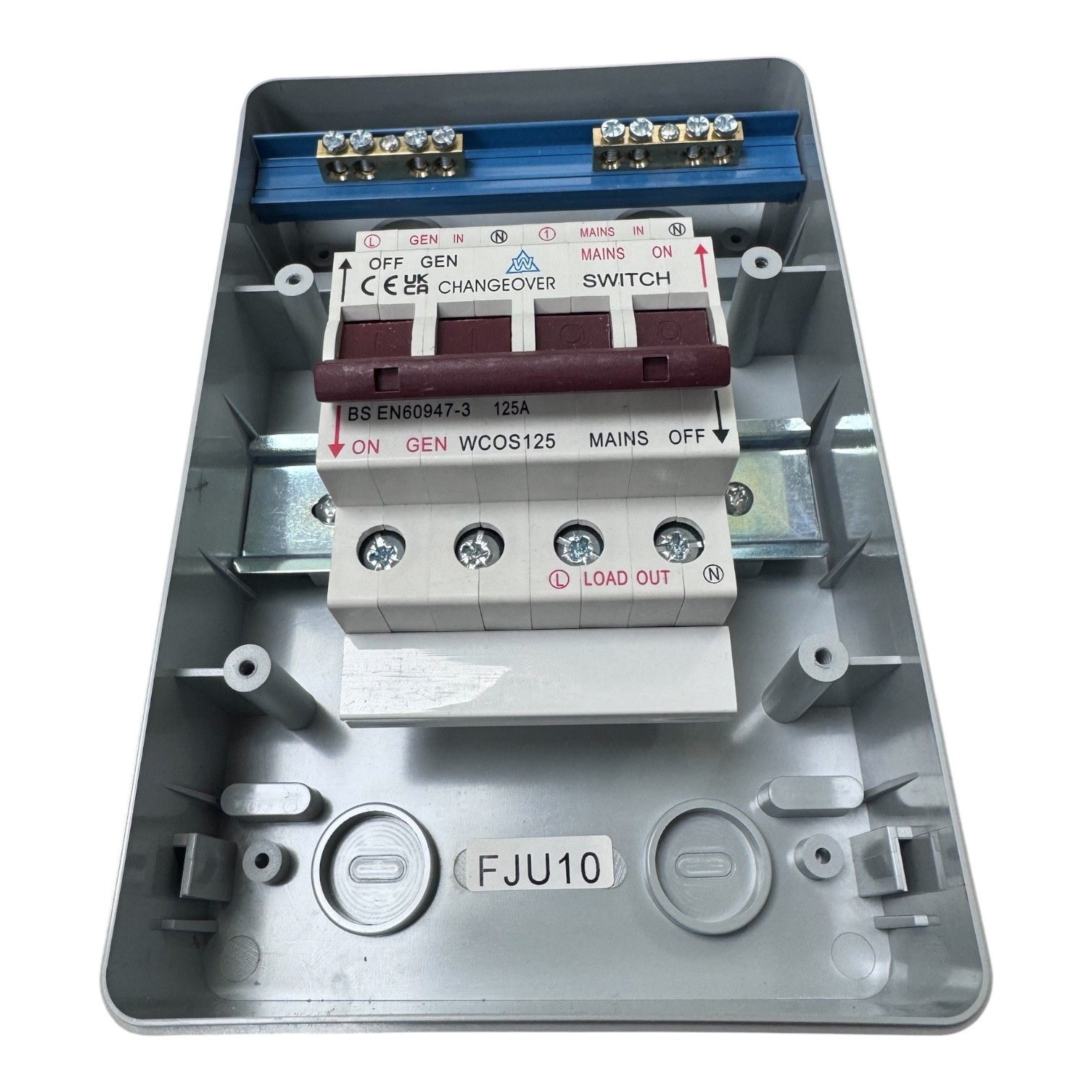

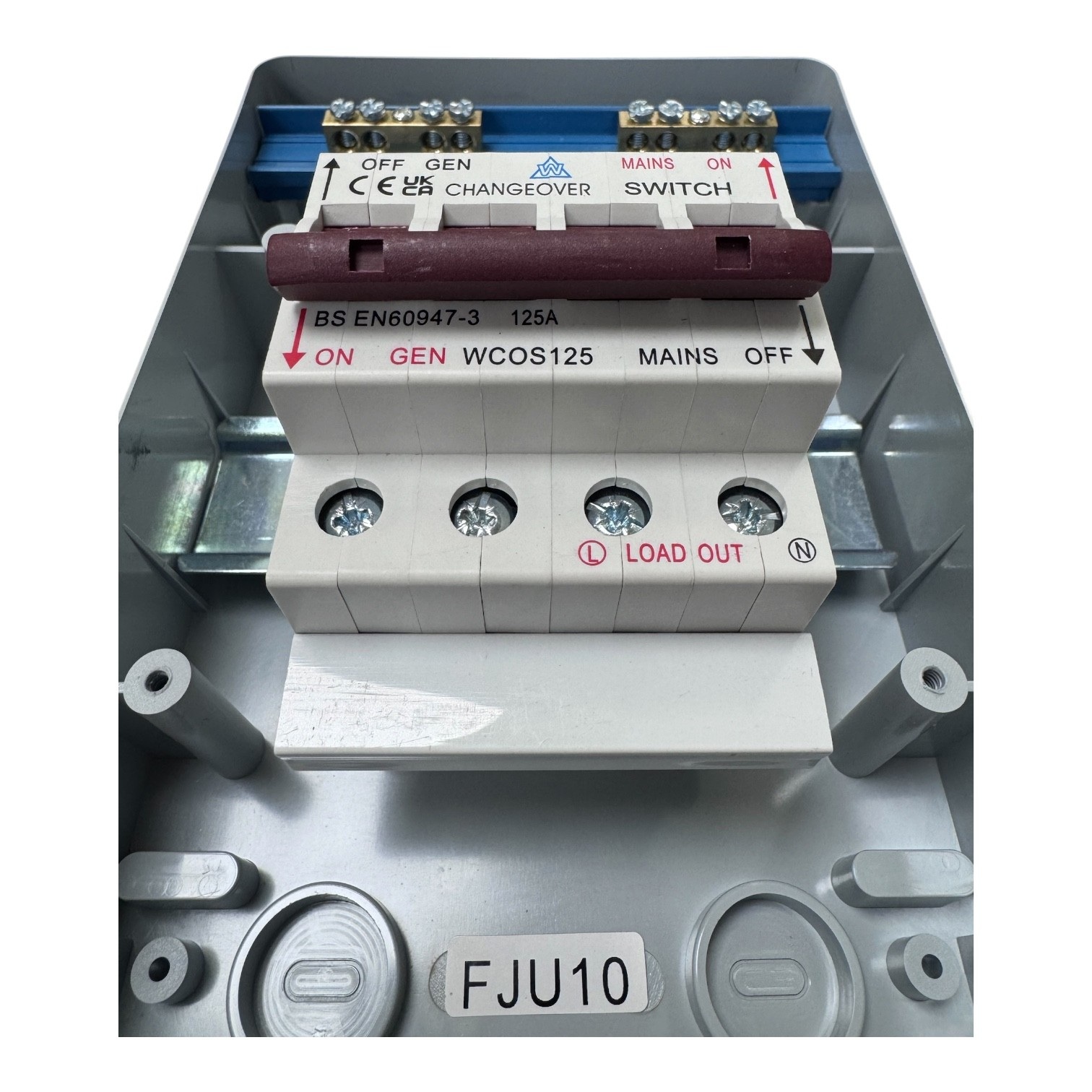

- Complete Enclosed Assembly – Supplied with the WCED WCOS125 changeover switch fitted inside the enclosure.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | WPECOS125IP65 |
| Brand | WCED |
| Product Type | Enclosed Manual Changeover Switch |
| Rated Current | 125A |
| Number of Poles | 4 Pole |
| Contact Configuration | 2NO + 2NC |
| Switch Model | WCOS125 |
| Enclosure Type | Plastic Weatherproof |
| IP Rating | IP65 |
| Enclosure Colour | Grey / White |
| Cover | Smoked Transparent Hinged |
| Mounting | Wall Mounted |
| Installation Location | Indoor / Outdoor |
| Enclosure Dimensions | 205mm (H) × 140mm (W) × 95mm (D) |
Typical Applications
- Mains to generator changeover installations
- Backup electrical power systems
- Residential standby generator supplies
- Commercial electrical installations
- Alternative power source selection
- Electrical distribution and supply management
Installation Note: Installation must be carried out by a suitably qualified electrician, ensuring correct circuit protection, isolation arrangements, earthing and compliance with applicable electrical regulations.
