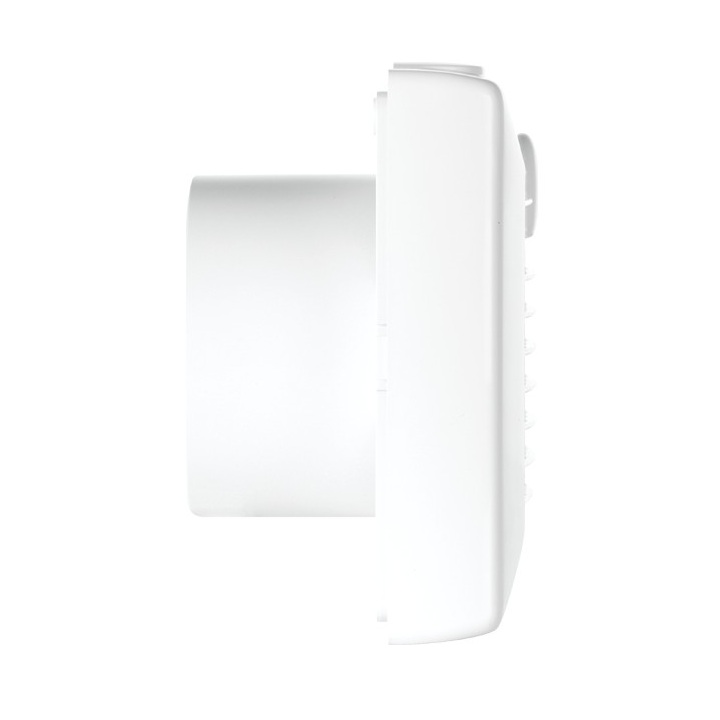

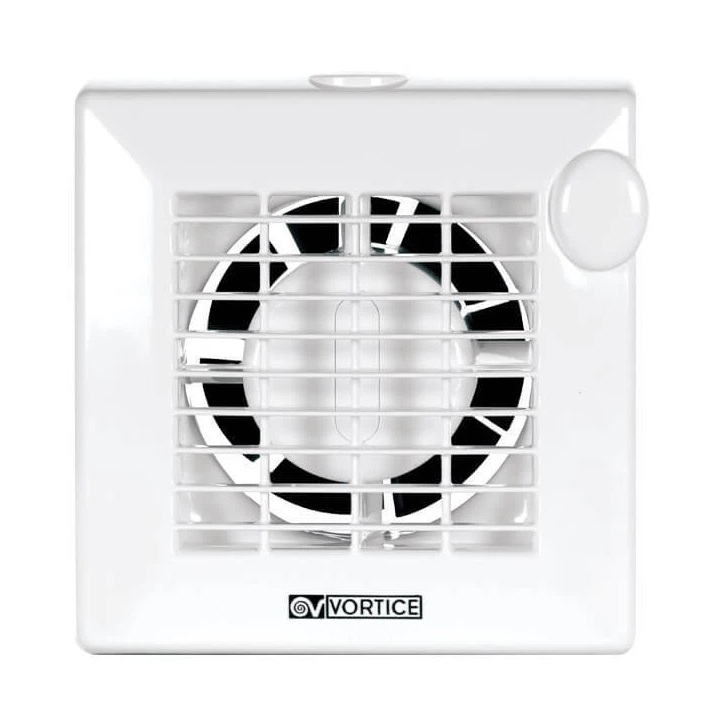

Vortice Punto M100/4″ T White Wall Axial Extractor Fan With Adjustable Timer 100mm / 4 Inch 240V – 11211

Part No          Description

11211             Punto M100/4″ T White Wall Axial Extractor Fan With Adjustable Timer 100mm / 4 Inch 240V

The Vortice Punto M 100/4” T (11211) is a wall/window axial fan with timer, which offers intermittent extraction of bathrooms, shower rooms and en suites. The fan has a high airflow rate and operates with low noise levels and low power consumption thanks to the wing profile blade and motor support.

• Mains 220/240V AC 50Hz
• Power consumption: 18W
• Amps Max: 0.10A
• RPM Max: 2300 rpm
• Extraction rate: 25 litres per second (90 cubic metres per hour)
• Max Pressure: 3mmH2O |29Pa
• Sound Output: 37.5dB (A) @ 3m
• Max Temperature: 50°C
• Back Draught Shutter
• Can be mounted on wall or ceiling
• Conforms to the following standards: CEI EN 60335-2-80 (part 2: Particular requirements for fan), CEI EN 60529 (code IP) and CEI107-53/1986
• UKCA & CE certified
• Weight: 0.60Kg

Dimensions

Height: 159mm
Width: 159mm
Depth: 100mm
Profile: 47mm
Spigot Diameter: 99mm

Key Features

• Wide range: 53 models (Ø100–150mm) with various features.
• Multiple control options: available with automatic shutters, timer, pull cord, humidistat, microprocessor, and PIR sensor.
• IPX4 rated.

Technical Features

• Durable motor: shielded poles with bronze or ball bearings, thermal cut-out.
• UV-resistant build: motor support and grille made of anti-UV ABS.
• Optimised performance: high airflow, low noise, and energy-efficient motor.
• 12V versions: 8 models, with or without automatic shutters.
• PIR models: auto-activates when a person enters; runs 3–20 min after exit
• T-HCS models: adjustable humidity activation (RH: 60%, 70%, 80%, 90%), auto shut-off when RH normalises.
