Vortice Axial Bathroom 100/4″ Fan with Integral Backdraught Shutter and Timer Black – 10127

Part No          Description

10127              Axial Bathroom 100/4″ Fan with Integral Backdraught Shutter and Timer Black

Easy to install and suitable for wall or ceiling mounting. This model is for operation with the room light switch. When the light is switched on the fan comes on, when the light is switched off the fan continues to run for a pre-set time. Requires permanent live, switched live and neutral (3 wires excluding earth) at the fan position in order to operate correctly. Please note that the timer function cannot be used unless you have these three wires to connect.

• Mains 220/240V AC 50Hz
• Power consumption: 15W
• Amps Max: 0.09A
• RPM Max: 2400 rpm

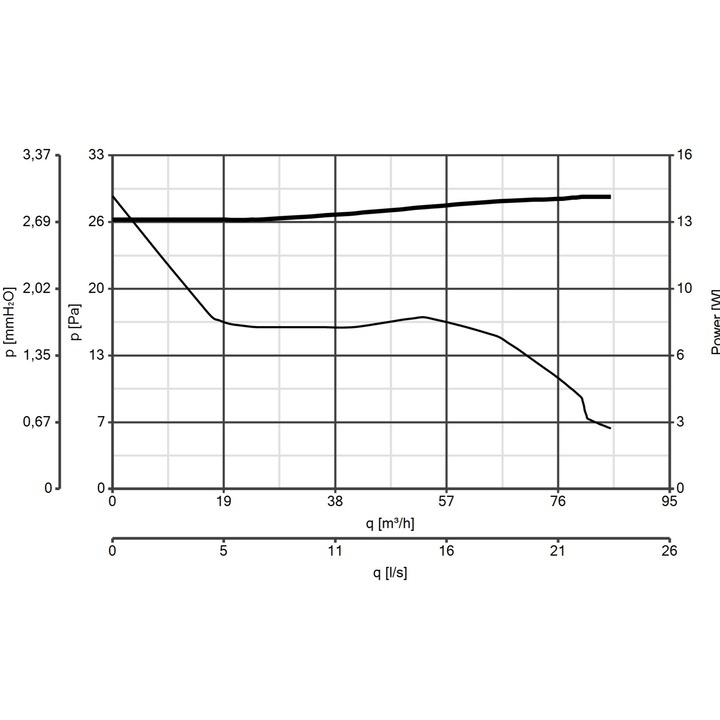

• Extraction rate: 24 litres per second (85 cubic metres per hour)
• Max Pressure: 3mmH2O |29Pa
• Sound Output: 31dB (A) @ 3m
• Max Temperature: 50°C
• Back Draught Shutter
• Can be mounted on wall or ceiling
• Conforms to the following standards: CEI EN 60335-2-80 (part 2: Particular requirements for fan), CEI EN 60529 (code IP) and CEI107-53/1986
• UKCA & CE certified
• Weight: 0.51Kg

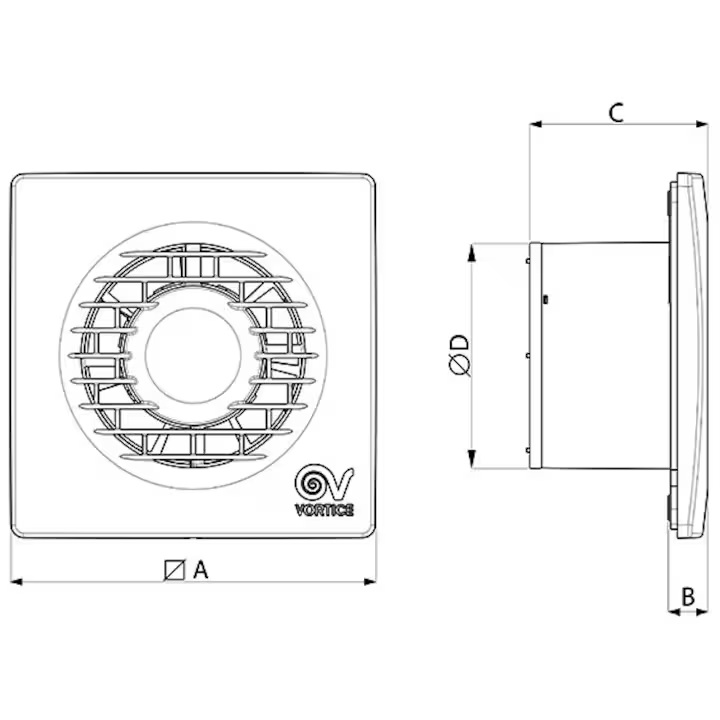

Dimensions

Height: 159mm
Width: 159mm
Depth: 77mm
Profile: 17mm
Spigot Diameter: 98mm

Key Features

• Compact design: slim 17mm profile with a sleek, minimal aesthetic.
• Splashproof option: available in IPX5 (model 10218) for added protection against water exposure.
• IPX5 version: offers 8 year warranty for extra peace of mind.
• Colour options: choose between White or Black finishes to complement modern bathroom decor.
• Butterfly backdraught shutter: effectively prevents air backflow for improved performance.
• IPX4 rated.

Technical Features

• Durable ABS casing: shock-proof, UV-resistant.
• Quiet and efficient motor: shaded pole or ball-bearing (LL models) for low noise and longevity.
• Optimised airflow: airfoil-shaped axial impellers for high performance with minimal noise.
• Timer models (T): auto shut-off (3–20 min, default 3 min).
• Humidity sensor models (T-HCS): auto-activates fan based on RH levels (60%, 70%, 80%, 90%).
• Presence sensor models (PIR): auto-activates fan when occupants are detected, with a timer-controlled shut-off.
