Voltaris VWS1 100A Single Phase MID Approved Meter Import Only Standard Cover – SPWVOB
Part No Description
SPWVOB VWS1 100A Single Phase MID Approved Meter Import Only Standard Cover
The Voltaris VWS1 range delivers a selection of 100A single phase meters suitable for a wide variety of measuring applications. This highly accurate meter, (±1%), can be used to bill for the consumption of energy in accordance with the Measuring Instruments Directive (MID).
The bi-directional model can be utilised in a variety of renewable applications such as solar generation. It features an LED indicator that blinks red to indicate imported energy, and green for exported. The model including a net energy reading is suitable for a variety of battery storage applications and the range is available with either a standard, or extended terminal cover for additional security and safety
All models offer a clear 6+1 display, a push button to scroll through readings and a pulse output set to 1000 imp/kWh.
Features
- Suitable for single phase supplies up to 100A
- MID Approved
- Accuracy Class B (±1%)
- Measures imported, exported & net energy
(model dependant) - Pulse output for imported and exported energy
- Standard or extended terminal cover available
- Suitable for residential billing and renewable
applications
Specification

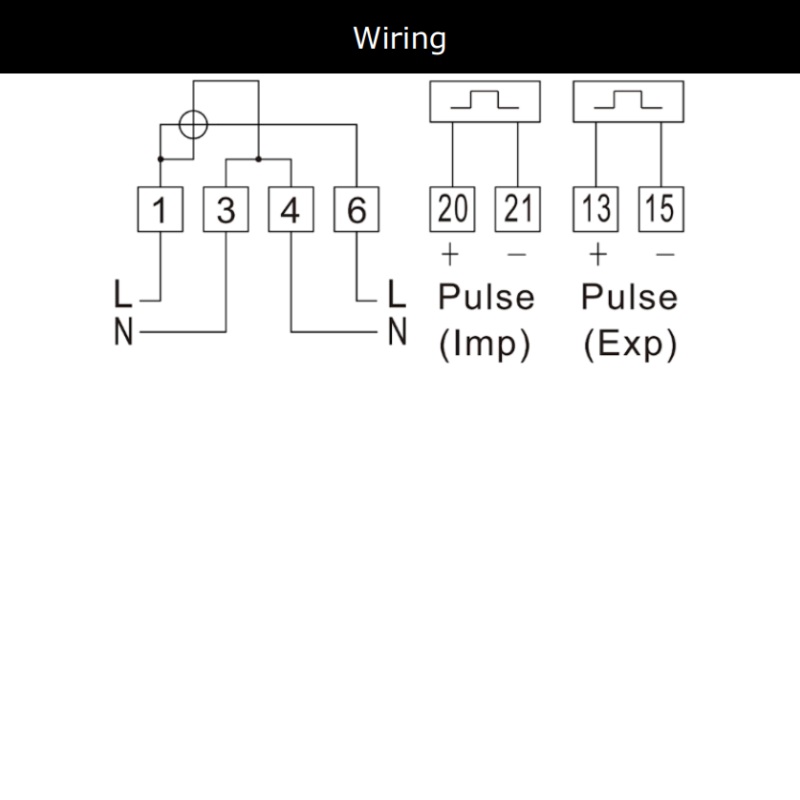

Meter Type: 1 Phase 2 Wire
Accuracy: Cl. B (EN 50470-3)
Rated Voltage: 230V
Frequency: 50Hz
Basic Current: 5A
Maximum Current: 100A
Starting Current: 0.004lb
Power Consumption: Voltage Circuit (Un) ≤1.8W/10VA
Current Circuit (In) ≤2.2VA
Impulse Constant: 1000 imp/kWh
Standard: EC62052-11, IEC62053-21
LED: 1 bi-colour pulse LED output
import current, flashes red
export current, flashes yellow
Display: 6+1
Terminal Block: BS 7856
Operating Temperature: -40℃ to +70℃
Protection Class: IP54
Meter Case Meter Case: PC
Terminal: Bakelite
Weight: Approx. 0.6kg
