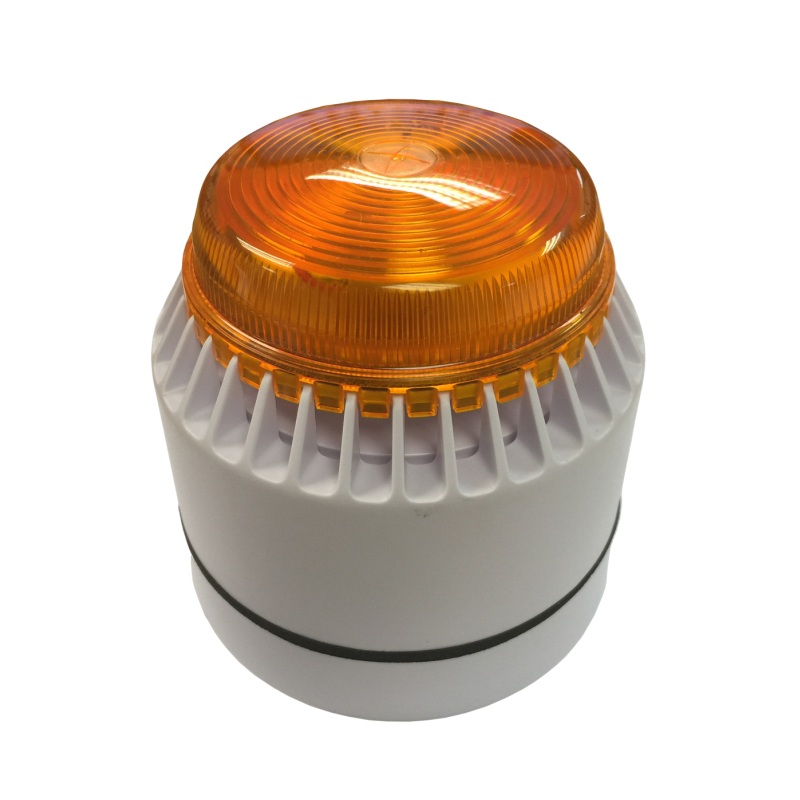

SCL Amber 24VDC Combined Sounder/Beacon White Shallow Base IP65 – FL/AL/W/S/SEP/SW
Part No Description
FL/AL/W/S/SEP/SW Amber 24VDC Combined Sounder/Beacon White Deep Base IP65
- 32 Selectable Tones – Selectable via the built in Dip Switch, located on the rear of the Alarm
- 2 Tones Available – The primary selected tone has an alternative sound immediately selectable via the third terminal
- Simple Wiring – Duel terminal blocks for simple wiring
- Sound Synchronisation – Fitted with synchronisation facility for adjacent sounder/beacons
- Volume Control – Fitted with and adjustable volume control, the sounder can be adjusted from 67dB to 92dB
- Flame Retardant – Sounder constructed from flame retardant polyamide (V0 to UL94)
- Deep Base – Deep base supplied completed with 2 x 20mm conduit entry knockouts
Specification
| Approvals | CE |
|---|---|
| Colour | Amber |
| Materials (Body) | PC/ABS |
| Ingress Protection | IP40 |
| Voltage | 18-28VDC |
| Operating Temperature | -10 to +55℃ |
| Light Output Life | XENON DISCHARGE TUBE 0.7J |
| Flashes Per Minute (FPM) | 0.5 CD -1F PER SECOND |
