SCL 800A 1200mm Busbar Chamber – CBB800A-1200
Part No Description
CBB800A-1200 800A 1200mm Busbar Chamber
Fully rated and certified busbar chamber in steel enclosure with top and bottom blank gland plates and removable side panels. Panels fixed with key hole slots.
Technical Data
Standard: BS EN 61439-1
Rated Current In: 800A
Rated Voltage Ue: 230/400V
Rated Insulation Voltage Ui: 690V
Rated Frequency: 50/60Hz
Rated Conditional ShortCircuit Current (Icc): 36kA
Enclosure: 1.6mm mild steel
Finish: Matt grey to RAL 7035
IP Rating: 3X
Pollution Degree: 3
No of Poles: 4
Cable Entry: Top/Bottom glandplates
BusBar Connection: CBBC240-800A clamp (4 off – M10 bolts)
Earth Connection: M10
Ambient Operating Temp.: -5 to 40 °C
Weight: 43kg

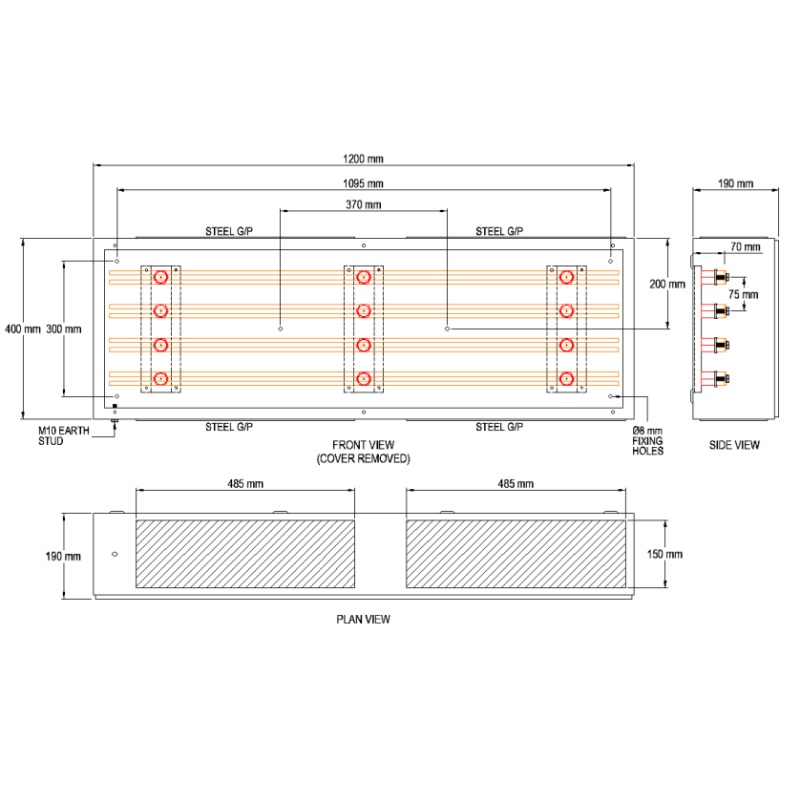

Dimensions
Width 1200mm
Height 400mm
Depth 190mm
Weight 43 Kg
Accessories
CBBC240-800A – 300-800A Copper Busbar Chamber Clamp 240mm Capacity
