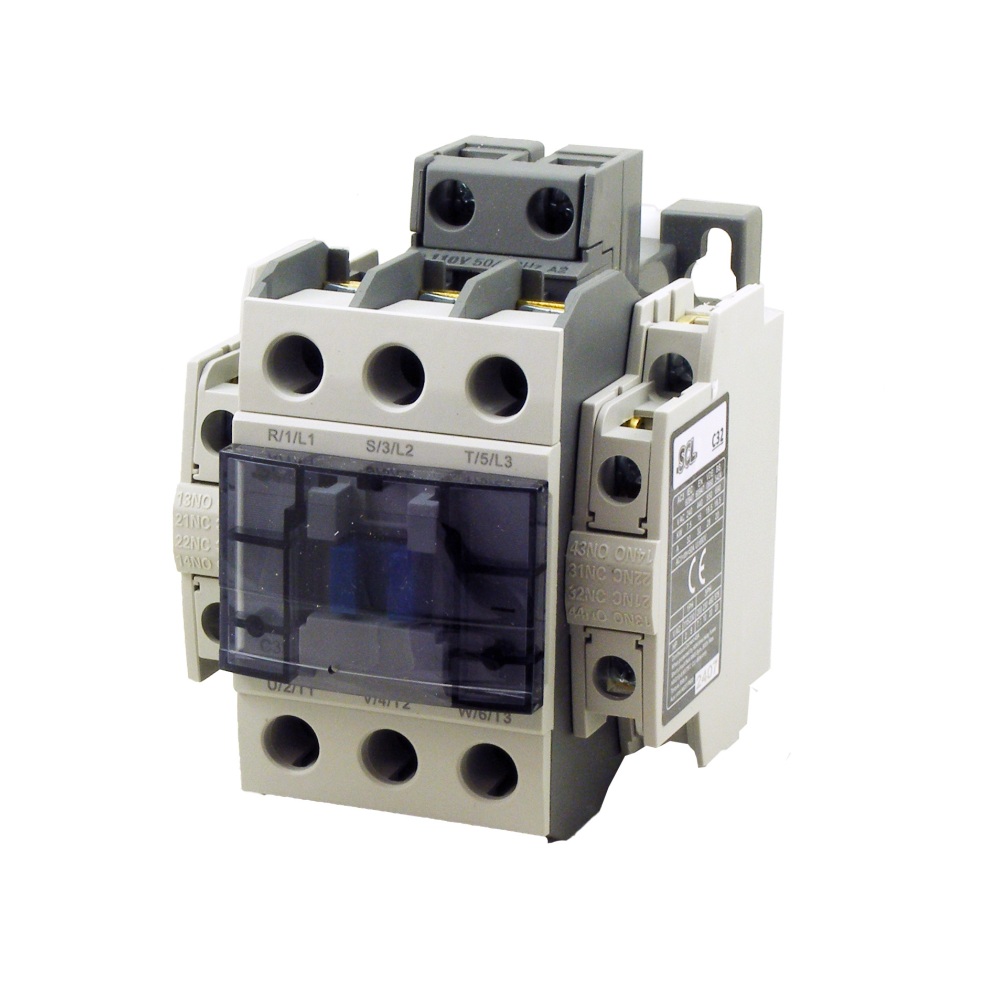

SCL 40A Contactor 18.5kW 3 Pole 240VAC 2NO/2NC – C40-22-3P-240VAC
Part No Description
C40-22-3P-240VAC 40A Contactor 18.5kW 3 Pole 240VAC 2NO/2NC
- 40 A Standard Contactor
- AC3 IEC60947 – UL508
- Touchproof Terminals
- DIN Rail and Base Mount
- 3 pairs of Main Contacts
- 50/60Hz AC Coil
- 24V, 110V, 240V & 415V Coils
- 12V & 48V Coils available on request
- 2 NO + 2 NC Auxiliary Contact
- Thermal Overload Relay Type TO-40
- Overload Relays and additional
Specifications
- Auxiliary Contact: 2 NO / 2 NC
- Coil Voltage: 240V AC
- Colour: Black/Grey
- Contact Configuration: 3 NO
- Current Rating Ac1: 60A
- Current Rating Ac3: 40A
- Dimensions: (H) 82mm x (W) 68mm x (D) 94.5mm
- Frequency: 50/60 Hz
- Guarantee: 1 Year
- Material: Metal/Plastic
- Mounting: DIN Rail / Screw Mounting
- Number of Poles: 3 Pole
- Standards: IEC 60947-4-1
- Suitable For: Heating, Motor and Lighting Loads
- Type: C40
- Voltage Rating: 660V
- Weight: 0.54kg
- kW Rating: 18.5kW
