SCL 400A 1800mm Busbar Chamber – CBB400A-1800
Part No Description
CBB400A-1800 400A 1800mm Busbar Chamber
Fully rated and certified busbar chamber in steel enclosure with top and bottom blank gland plates and removable side panels. Panels fixed with key hole slots.
Technical Data
Standard: BS EN 61439-1
Rated Current In: 400A
Rated Voltage Ue: 230/400V
Rated Insulation Voltage Ui: 690V
Rated Frequency: 50/60Hz
Rated Conditional ShortCircuit Current (Icc): 36kA
Enclosure: 1.6mm mild steel
Finish: Matt grey to RAL 7035
IP Rating: 3X
Pollution Degree: 3
No of Poles: 4
Cable Entry: Top/Bottom glandplates
BusBar Connection: CBBB10-800A clamp (4 off – M10 bolts)
Earth Connection: M10
Ambient Operating Temp.: -5 to 40 °C
Weight: 45kg

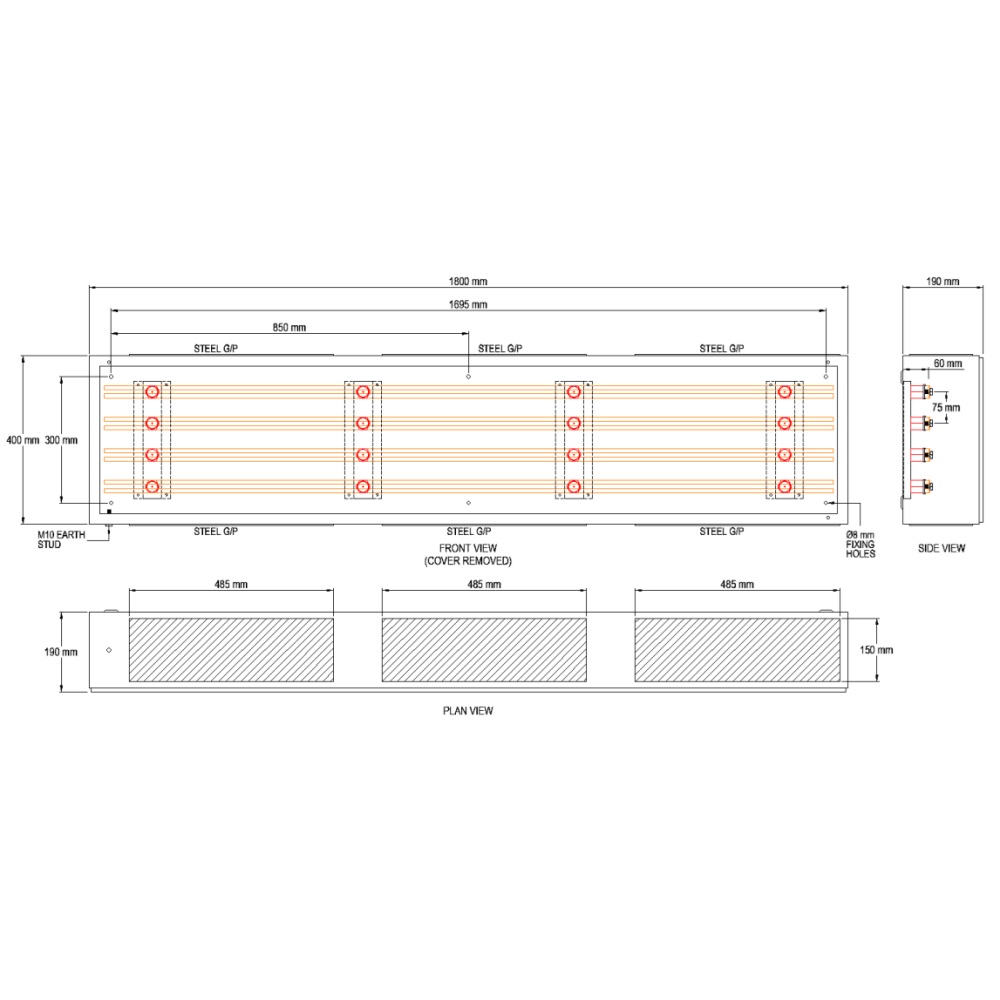

Dimensions
Width 1800mm
Height 400mm
Depth 190mm
Weight 45 Kg
Accessories
CBBB10-800A – 300-800A M10 Busbar Bolt Clamp 150mm Capacity
