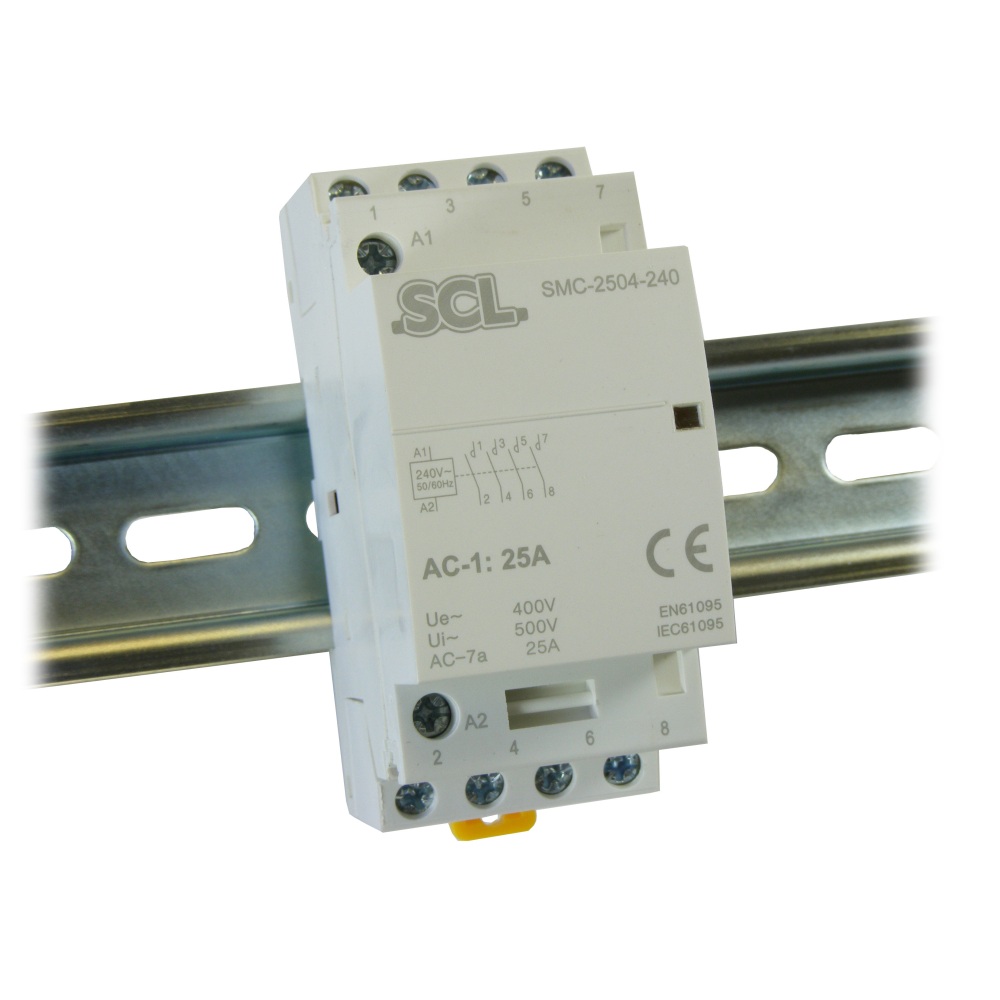

SCL 4 Pole 25A Modular Contactor 4NC 240V – SMC-2504-240
Part No Description
SMC-2504-0240 4 Pole 25A Modular Contactor 4NC 240V
No of Poles: 4 Pole
Contact Arrangement: 4 x NC
Rated Current AC-7A: 25A
Control Voltage AC 50/60Hz: 240V
Rated Terminal Capacity (Coil): 1.5 – 2.5mm²: 2 x 1.5mm²
Rated Terminal Capacity: 1.5 – 6mm²
35mm Din Rail Mount
IP20 Touch Proof Terminals
UKCA & CA Approved
Manufactures to IEC61095
Dimensions: 81 x 36 x 68mm
Technical Specification
Low Power Consumption: Optimized electromagnetic system significantly reduces holding power, effectively eliminating the high energy consumption of traditional contactors.
High Reliability Design: New structural design improves product reliability. Over 60% of the manufacturing process is automated, with key processes continuously monitored to ensure consistent quality.
Low Noise Operation: Noise commonly associated with traditional contactors is eliminated through advanced design and precision manufacturing.
Wide Application Range: Suitable for remote control of lighting, heating, ventilation, rolling curtains, public hot water systems, and mechanical ventilation systems, especially in low inductive and micro-inductive load environments.
Visual Status Indicator: Flag indicator clearly displays the contactor ON/OFF status.
RoHS Compliant: Fully compliant with RoHS environmental standards.
