SCL 200A 600mm Busbar Chamber – CBB200A-600
Part No Description
CBB200A-600 200A 600mm Busbar Chamber
Fully rated and certified busbar chamber in steel enclosure with top and bottom blank gland plates and removable side panels. Panels fixed with key hole slots.
Technical Data
Standard: BS EN 61439-1
Rated Current In: 200A
Rated Voltage Ue: 230/400V
Rated Insulation Voltage Ui: 690V
Rated Frequency: 50/60Hz
Rated Conditional ShortCircuit Current (Icc): 36kA
Enclosure: 1.6mm mild steel
Finish: Matt grey to RAL 7035
IP Rating: 3X
Pollution Degree: 3
No of Poles: 4
Cable Entry: Top/Bottom glandplates
BusBar Connection: CBBB8-200A clamp (4 off – M8 bolts)
Earth Connection: M10
Ambient Operating Temp.: -5 to 40 °C
Weight: 13.5kg

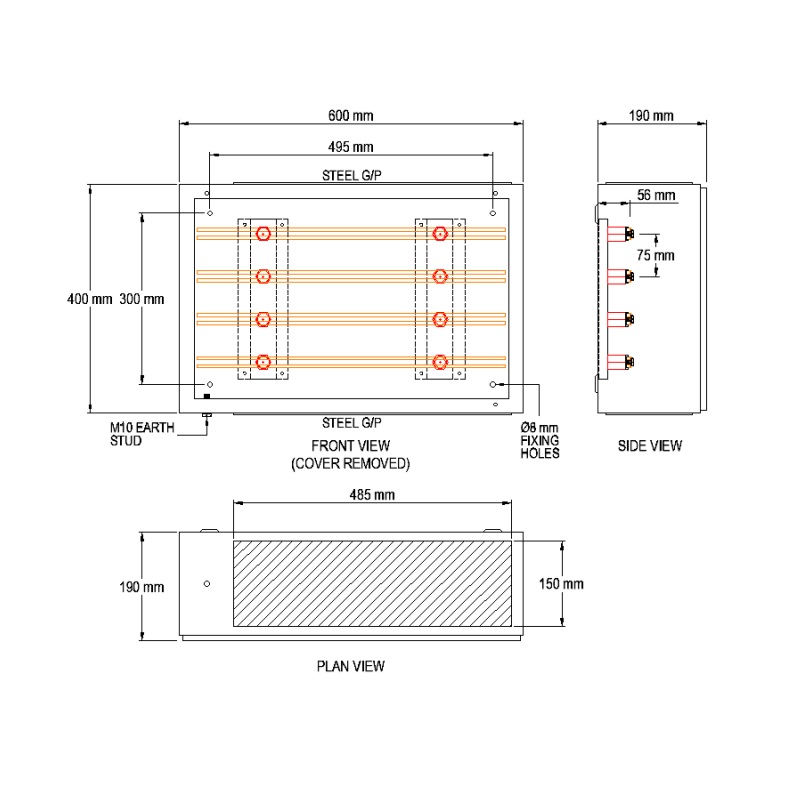

Dimensions
Width 600mm
Height 400mm
Depth 190mm
Weight 13.5 Kg
Accessories
CBBB8-200A – 100-200A M8 Busbar Bolt Clamp 150mm Capacity
