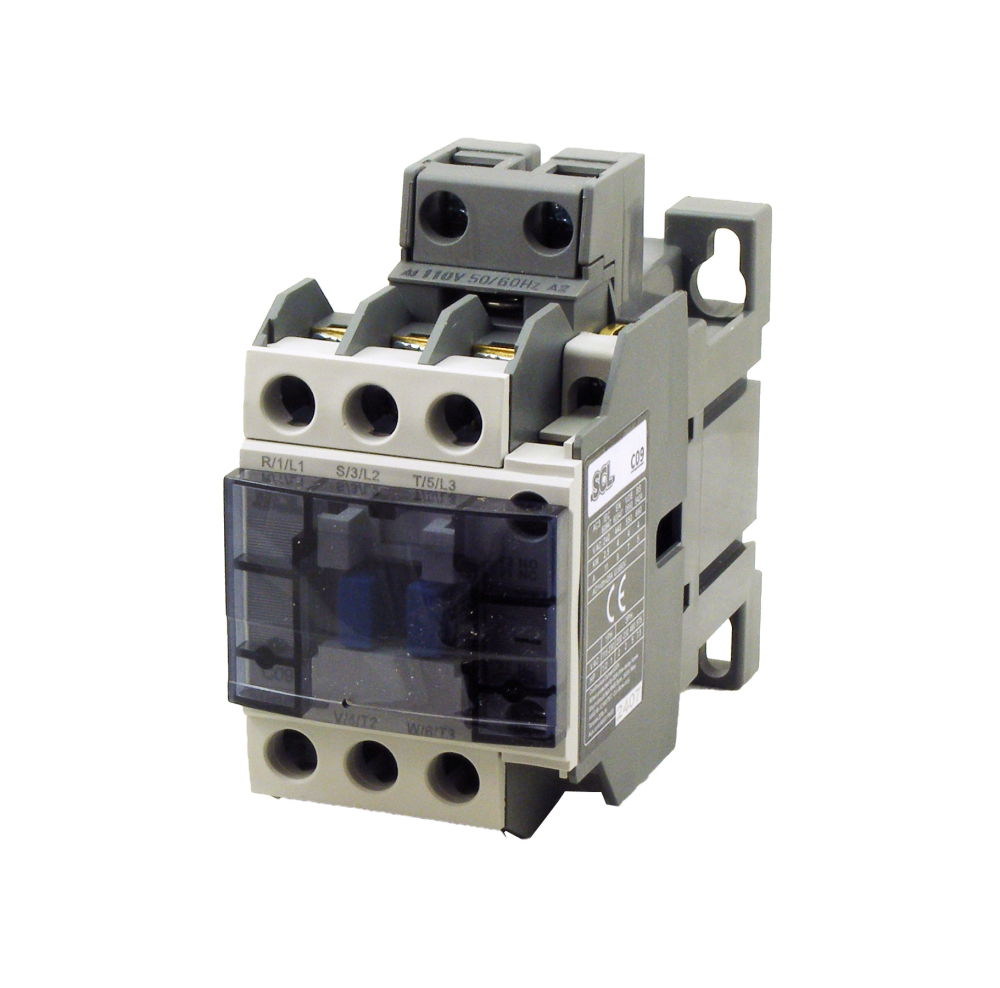

SCL 12A Contactor 5.5kW 3 Pole 24VAC 1NO/1NC – C12-11-3P-24VAC
Part No Description
C12-11-3P-24VAC 12A Contactor 5.5kW 3 Pole 24VAC 1NO/1NC
- 12 A Standard Contactor
- AC3 IEC60947 – UL508
- Touchproof Terminals
- DIN Rail and Base Mount
- 3 pairs of Main Contacts
- 50/60Hz AC Coil
- 24V, 110V, 240V & 415V Coils
- 12V & 48V Coils available on request
- 1 NO + 1 NC Auxiliary Contact
- Thermal Overload Relay Type TO-22
- Overload Relays and additional
Specifications
- Auxiliary Contact: 1 NO / 1 NC
- Coil Voltage: 24V AC
- Colour: Black/Grey
- Contact Configuration: 3 NO
- Current Rating Ac1: 25A
- Current Rating Ac3: 12A
- Dimensions: (H) 80mm x (W) 56mm x (D) 86.8mm
- Frequency: 50/60 Hz
- Guarantee: 1 Year
- Material: Metal/Plastic
- Mounting: DIN Rail / Screw Mounting
- Number of Poles: 3 Pole
- Standards: IEC 60947-4-1
- Suitable For: Heating, Motor and Lighting Loads
- Type: C12
- Voltage Rating: 660V
- Weight: 0.34kg
- kW Rating: 5.5kW
