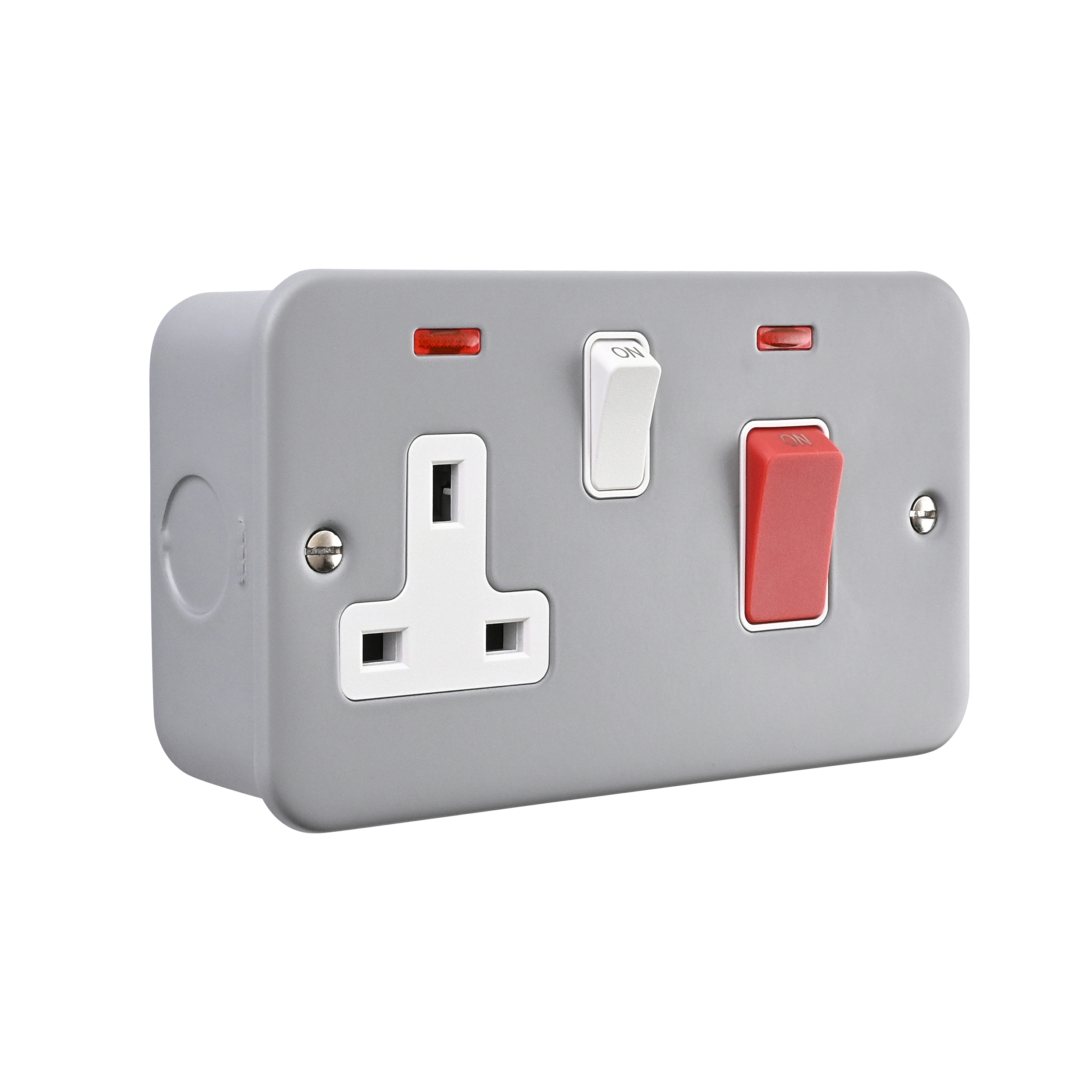

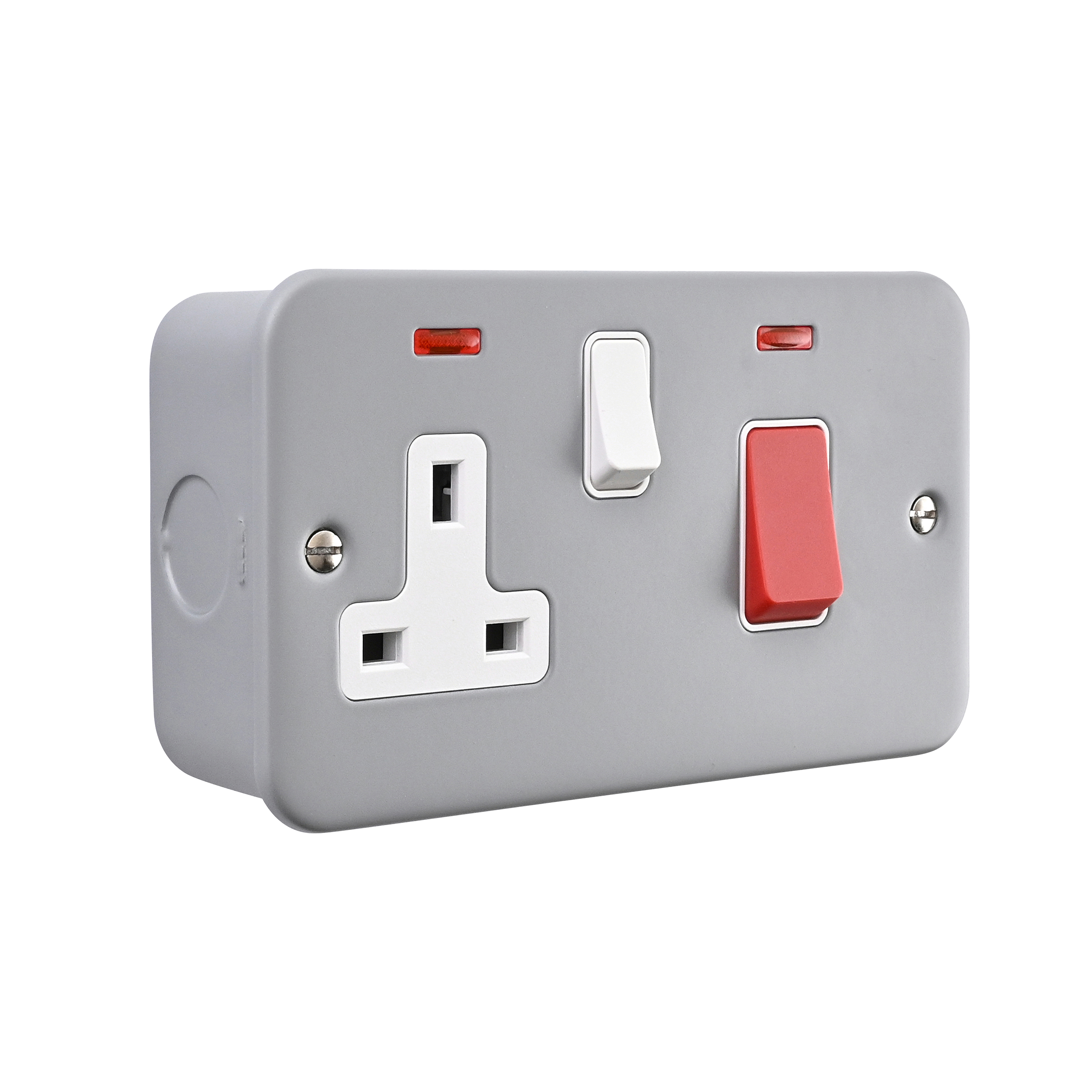

Saxby Metal Clad 45A DP Cooker Switch with 13A Socket with Neon – MC551
Part No Description
MC551 Metal Clad 45A DP Cooker Switch with 13A Socket with Neon
- Our 45A / 13A rated switch socket boasts captive screws which provide for quick, easy and a hassle free installation
- 13A socket has been provided for an additional power outlet
- Supplied with fixing screws
- Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
- Double pole switching for the peace of mind of a safer installation of your socket
- Flush neon power indicator on faceplate
- Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing
- Finished in a high quality powder coating to help protect against scratches
- We recommend using a standard metal surface box with a depth of 40mm – MC902
- Certified to BS 4177
Colour Finish: Silver effect paint
Captive Terminal Screw: YES
Fixing Screws Supplied: YES
Terminal Capacity (mm): 6²*1/ 4²*1/ 2.5²*3
Number of Earth Terminals: 1
Screw Caps: NO
Socket Type: 1G UK 13A
Switch Ytpe: DOUBLE POLE
Screw Caps: NO
Socket Type: 1G UK 13A
Switch Ytpe: DOUBLE POLE
Anti-Microbial Property: YES
Operating Voltage: 250V 50Hz
Dimensions: Height (mm) 82 x Width (mm) 142 x Depth (mm) 42.2
