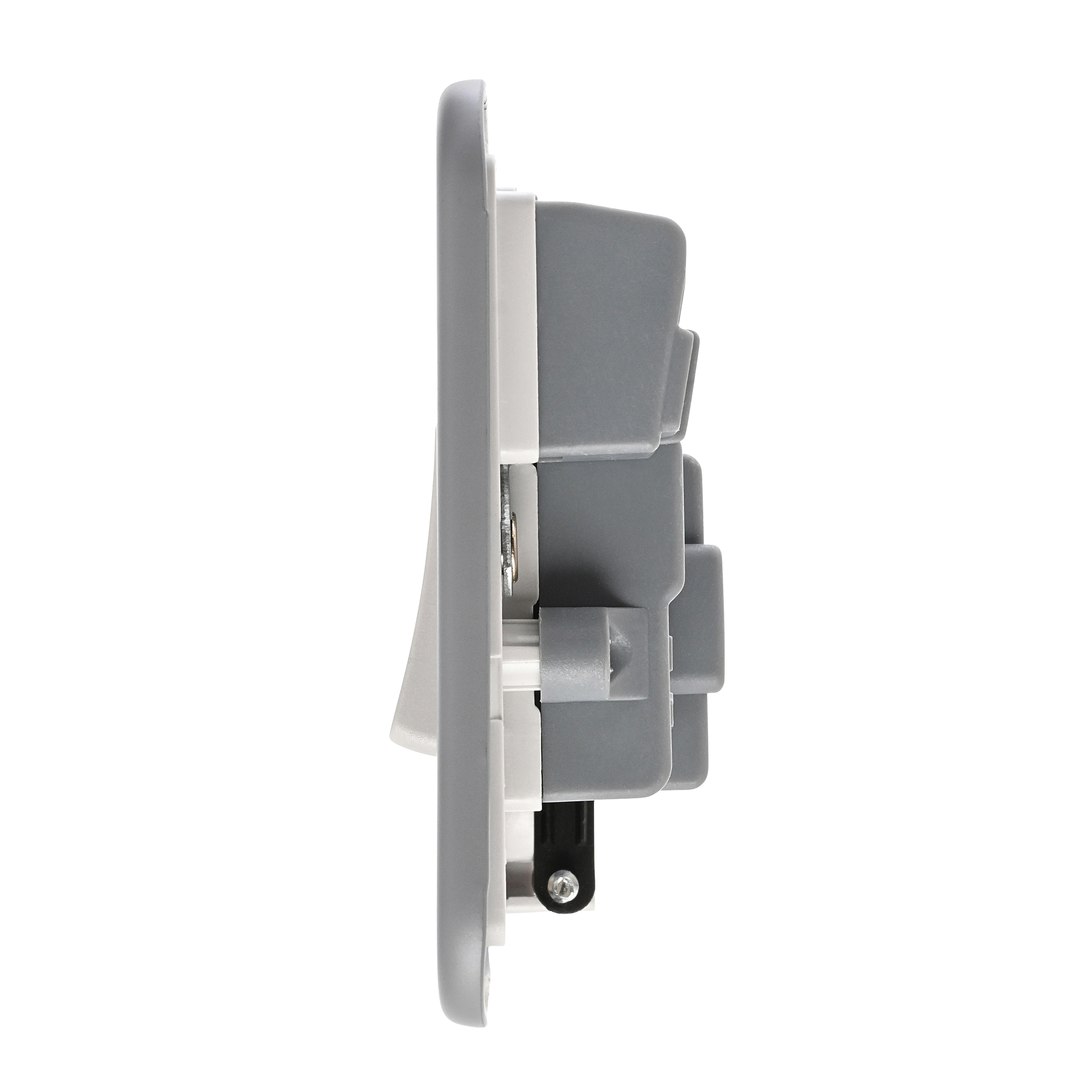

Saxby Metal Clad 13A Switched Fused Spur Unit with Flex Outlet – MC321
Part No Description
MC321 Metal Clad 13A Switched Fused Spur Unit with Flex Outlet

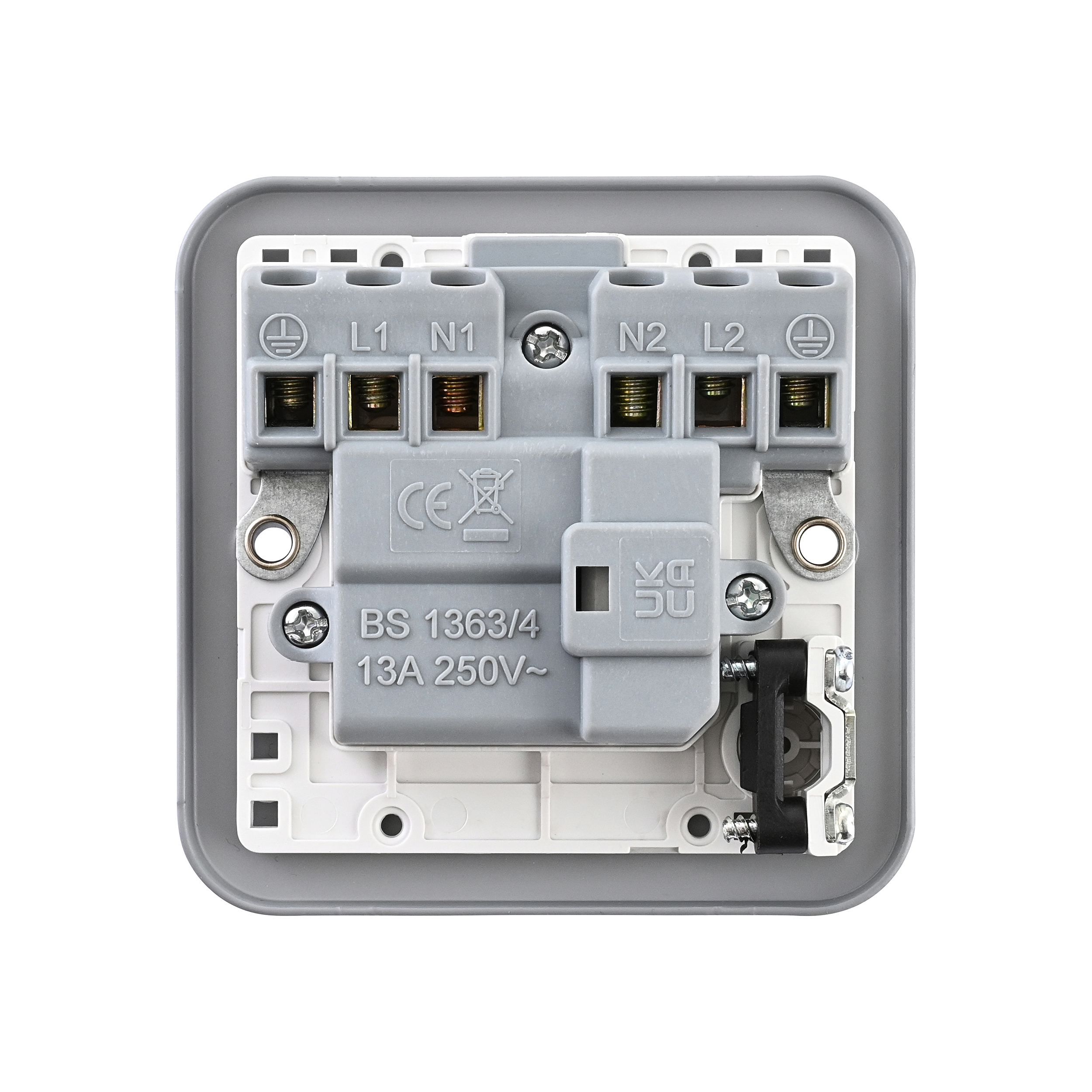

- Our 13A rated fuse spur socket boasts angled in-line terminals with captive screws which provide for quick and easy access and a hassle free installation
- Supplied with fixing screws
- Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
- Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing
- Finished in a high quality powder coating to help protect against scratches
- We recommend using a standard metal surface box with a depth of 40mm – MC901
- Certified to BS 1363-4
Colour Finish: Silver effect paint
Captive Terminal Screw: YES
Fixing Screws Supplied: YES
Terminal Capacity (mm): 6²*1/ 4²*1/ 2.5²*3
Number of Earth Terminals: 1
Terminal Arrangement: Angled-in line
Terminal Arrangement: Angled-in line
Screw Caps: NO
Switch Type: DOUBLE POLE
Anti-Microbial Property: YES
Operating Voltage: 250V 50Hz
Dimensions: Height (mm) 82 x Width (mm) 82 x Depth (mm) 42.2
