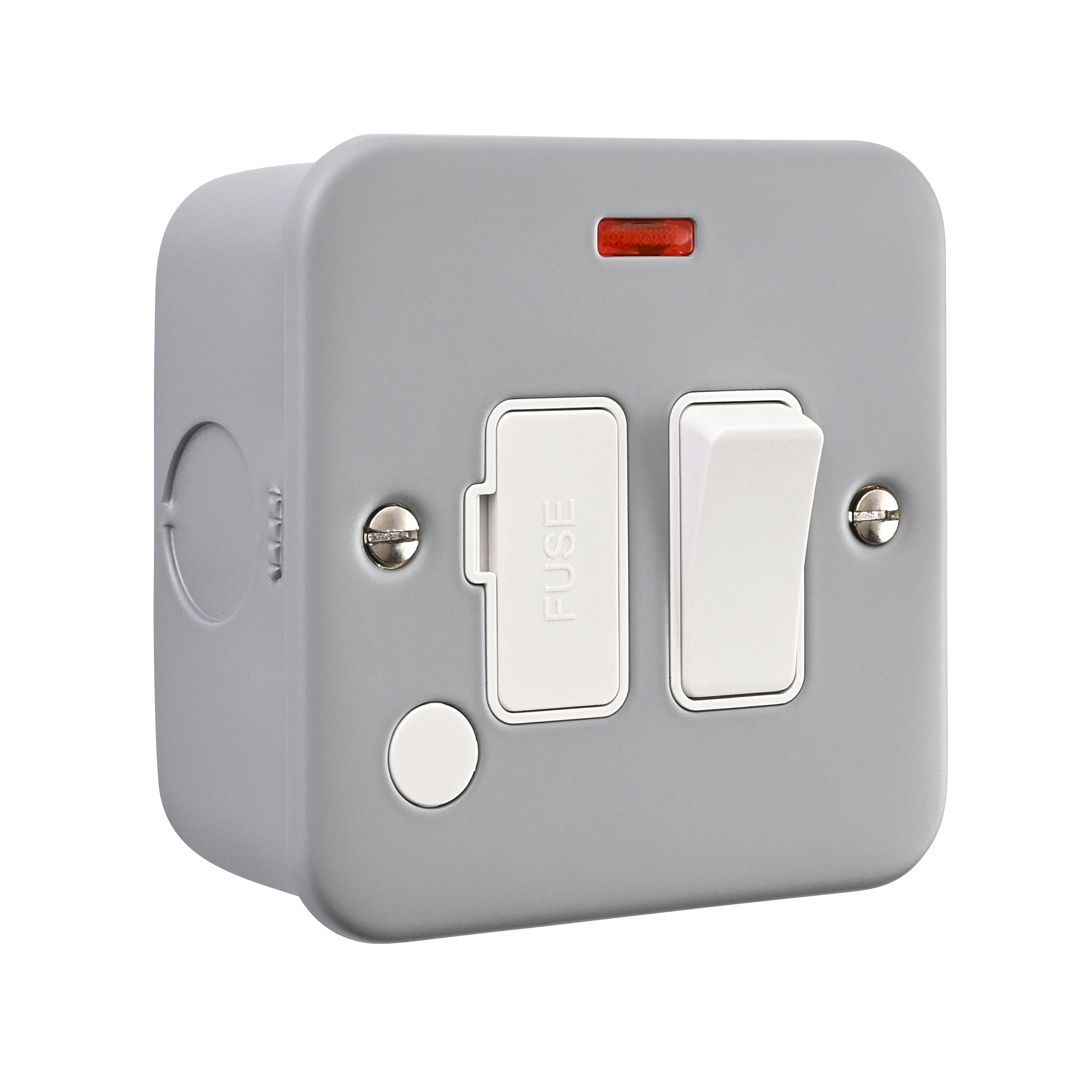

Saxby Metal Clad 13A Switched Fused Spur Unit with Flex Outlet and Neon – MC323
Part No Description
MC323 Metal Clad 13A Switched Fused Spur Unit with Flex Outlet and Neon
- Our 13A rated fuse spur socket boasts captive screws which provide for quick, easy and hassle free installation
- Supplied with fixing screws
- Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection

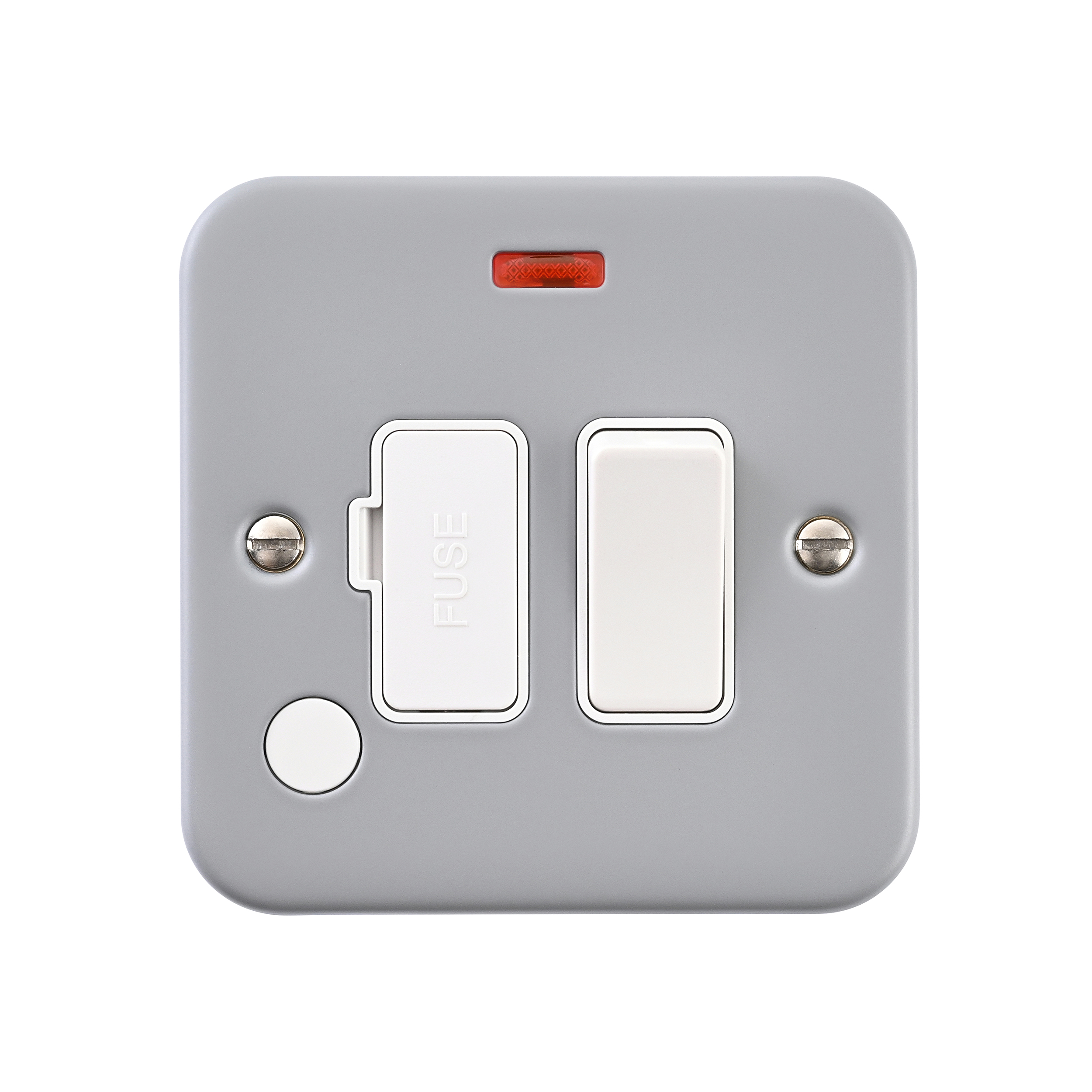

- Flush neon power indicator on faceplate
- Integrated flex outlet on face plate with cord grip on the rear with removable knockout
- Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing
- Finished in a high quality powder coating to help protect against scratches
- We recommend using a standard metal surface box with a depth of 40mm – MC901
- Certified to BS 1363-4
Colour Finish: Silver effect paint
Captive Terminal Screw: YES
Fixing Screws Supplied: YES

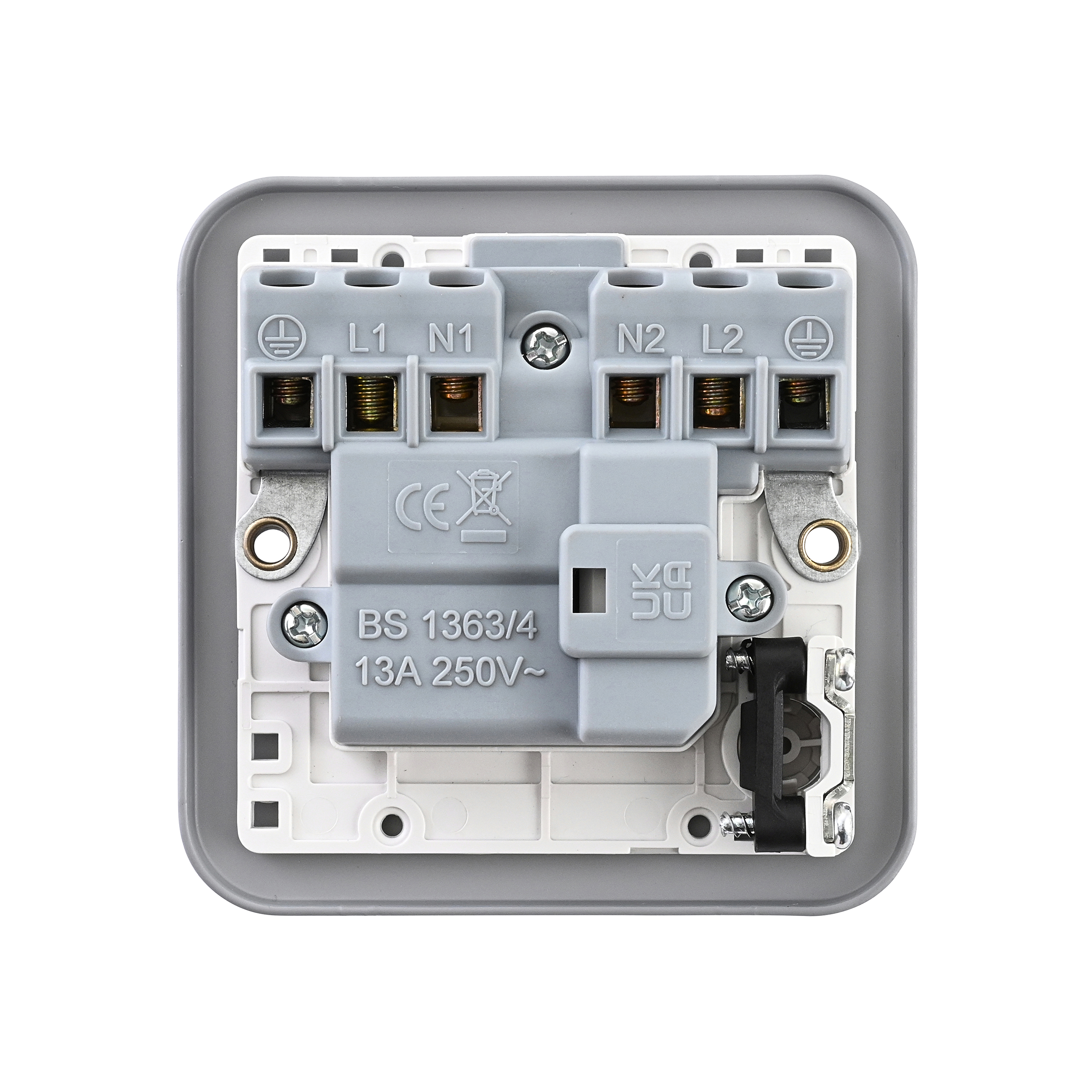

Terminal Capacity (mm): 6²*1/ 4²*1/ 2.5²*3
Number of Earth Terminals: 1
Terminal Arrangement: Angled-in line
Terminal Arrangement: Angled-in line
Screw Caps: NO
Switch Type: DOUBLE POLE
Anti-Microbial Property: YES
Operating Voltage: 250V 50Hz

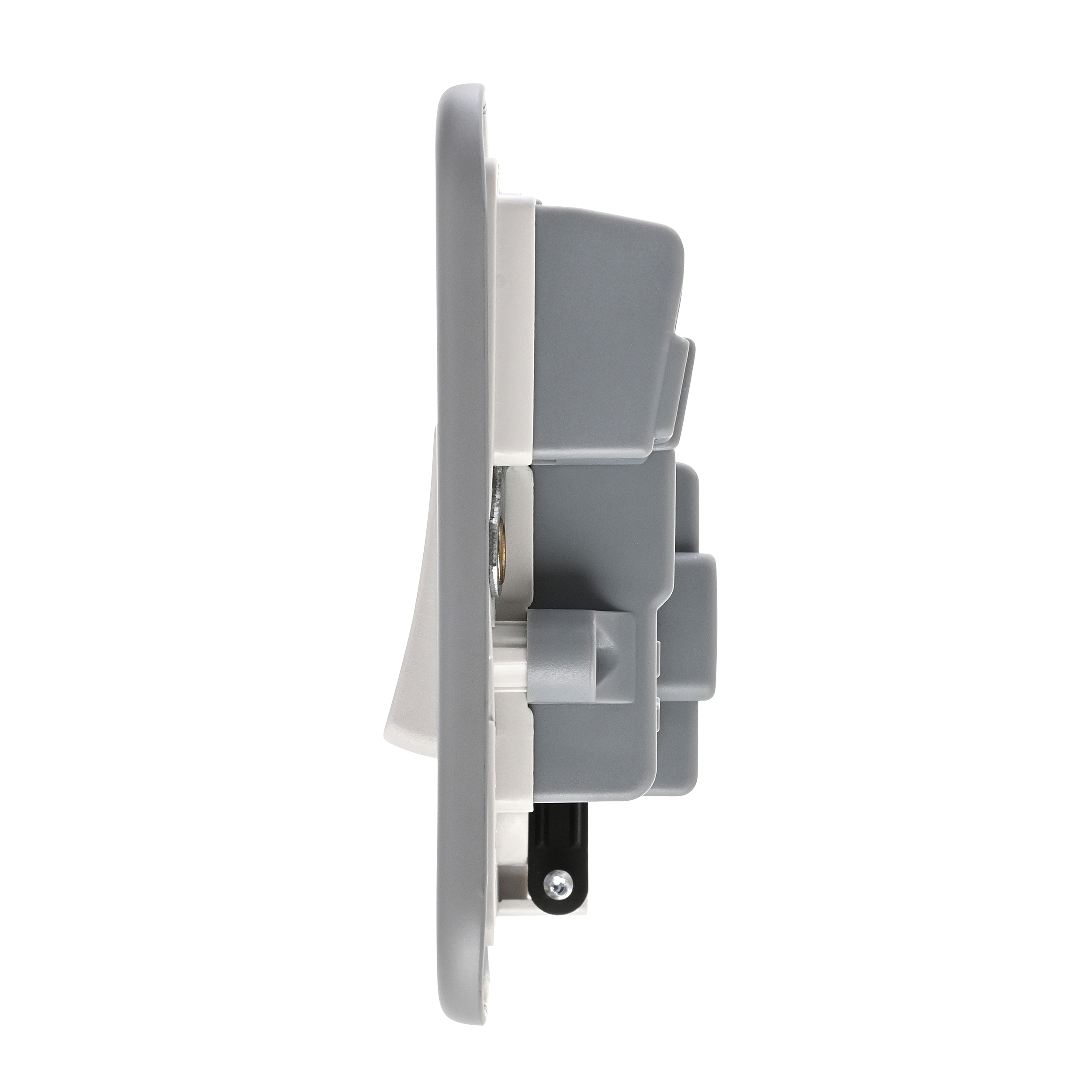

Dimensions: Height (mm) 82 x Width (mm) 82 x Depth (mm) 42.2
