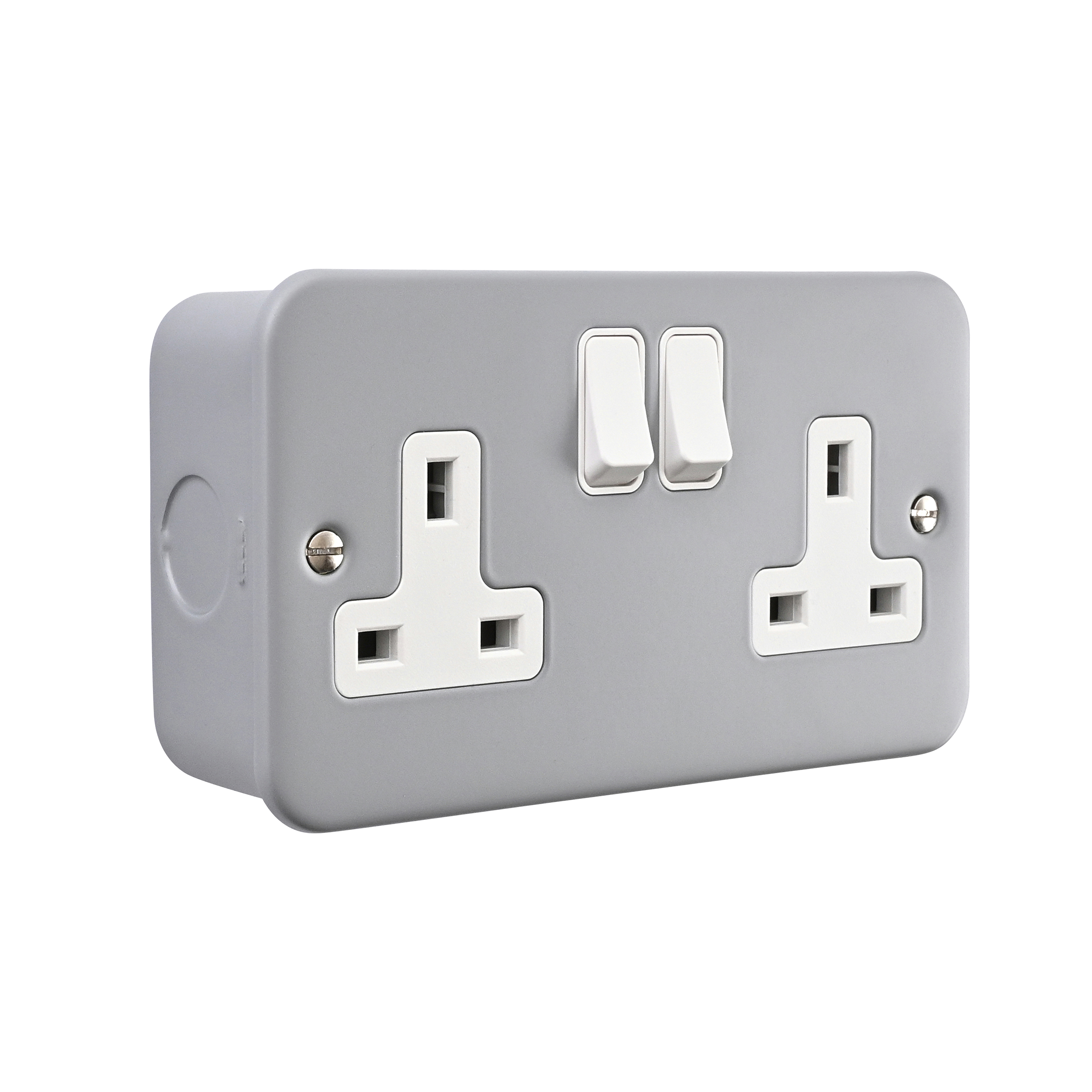

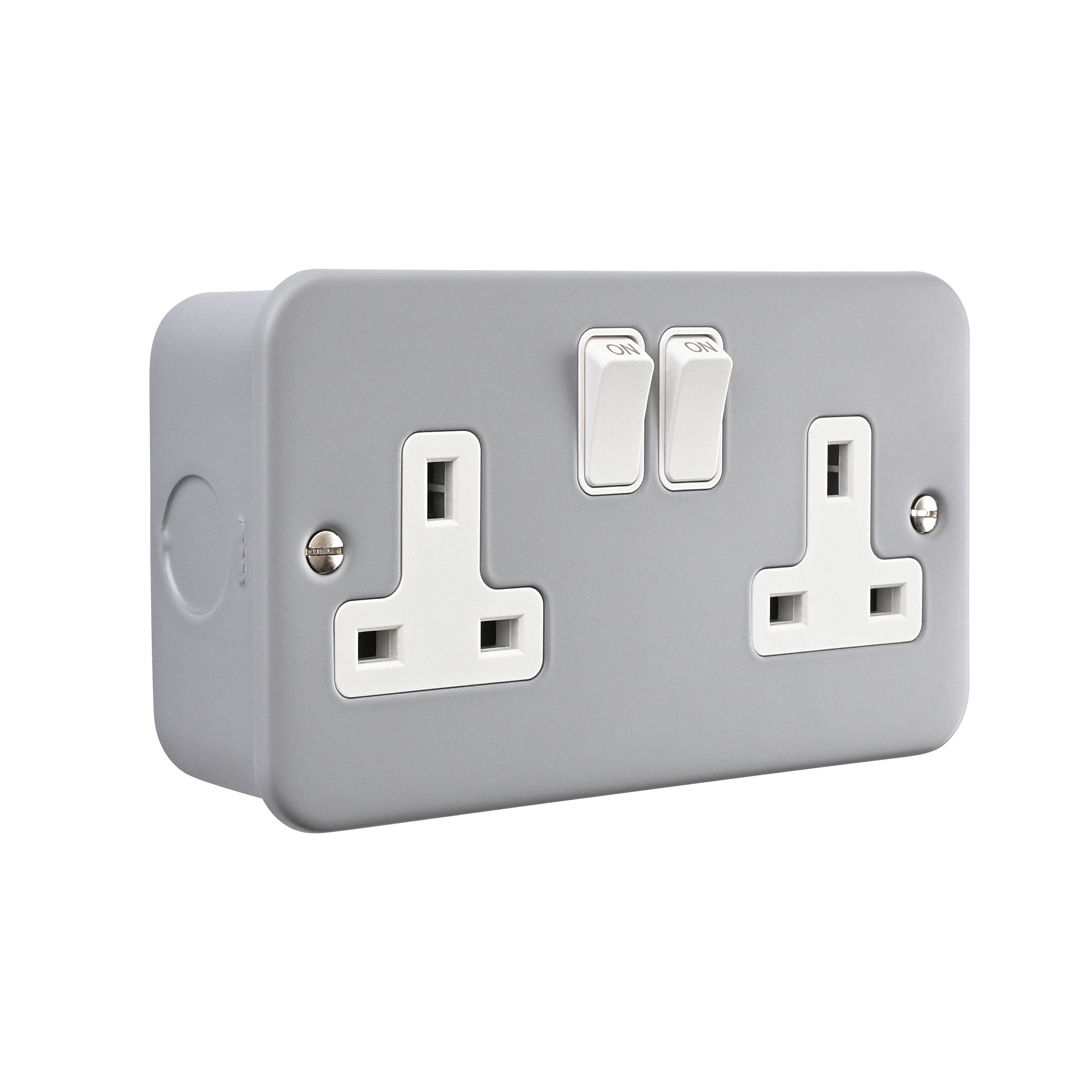

Saxby Metal Clad 13A 2G DP Switched Socket – MC422
Part No Description
MC422 Metal Clad 13A 2G DP Switched Socket
- Our 13A rated socket boasts captive screws which provide for quick, easy and hassle free installation
- Supplied with fixing screws

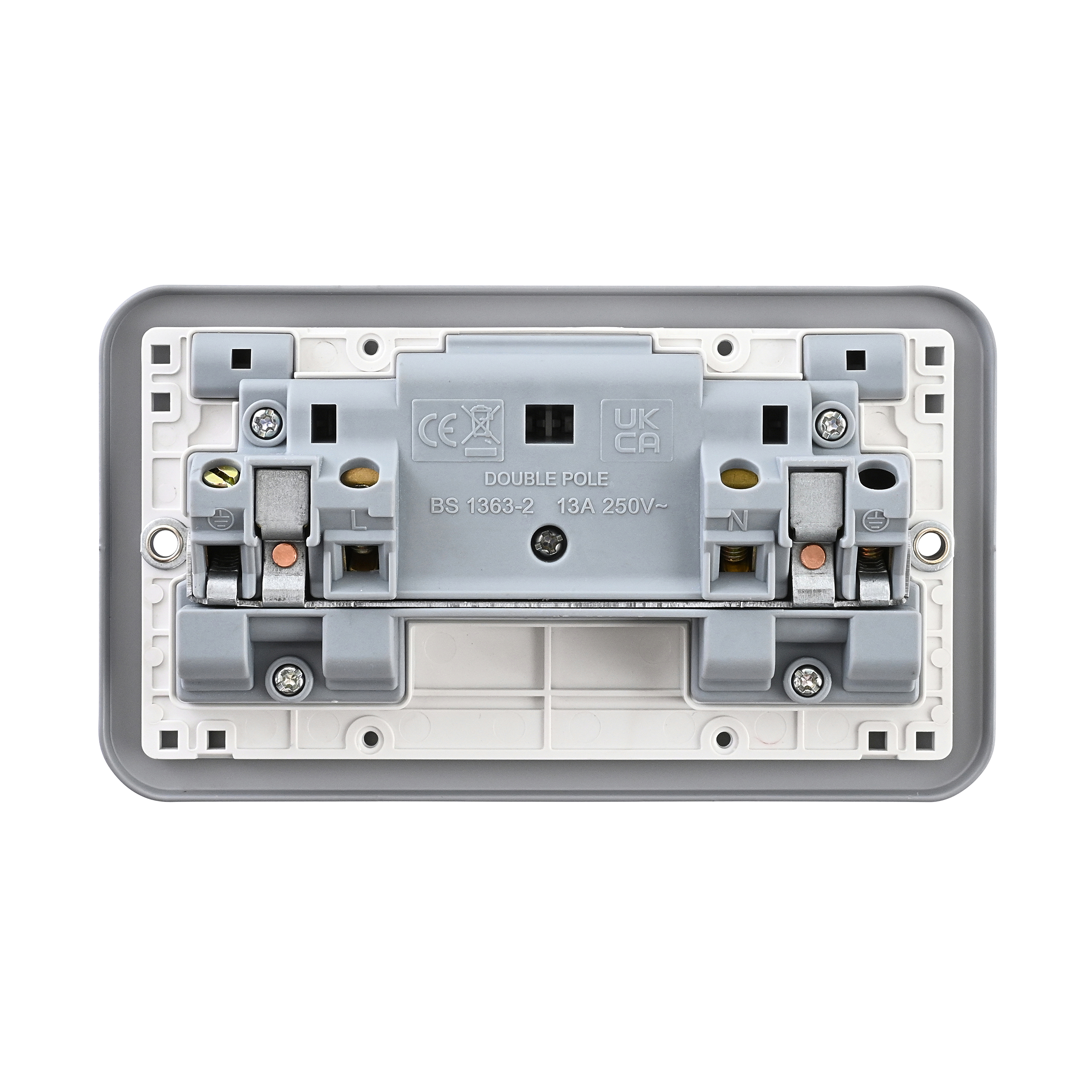

- Etched terminal markings for quick identification
- Twin earth fitted as standard to allow a double earth facility for installations that require a high integrity protective connection
- Double pole switching for the peace of mind of a safer installation of your socket
- Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing
- Finished in a high quality powder coating to help protect against scratches
- We recommend using a standard metal surface box with a depth of 40mm – MC901
- Certified to BS 1363-2
Colour Finish: Silver effect paint
Captive Terminal Screw: NO
Fixing Screws Supplied: YES
Terminal Capacity (mm): 6²*1/ 4²*1/ 2.5²*3
Number of Earth Terminals: 1
Screw Caps: NO
Socket Type@ 2G-2P UK 13A
Screw Caps: NO
Socket Type@ 2G-2P UK 13A
Switch Type: DOUBLE POLE
Anti-Microbial Property: YES
Operating Voltage: 250V 50Hz
Dimensions: Height (mm) 86 x Width (mm) 146 x Depth (mm) 42.2
