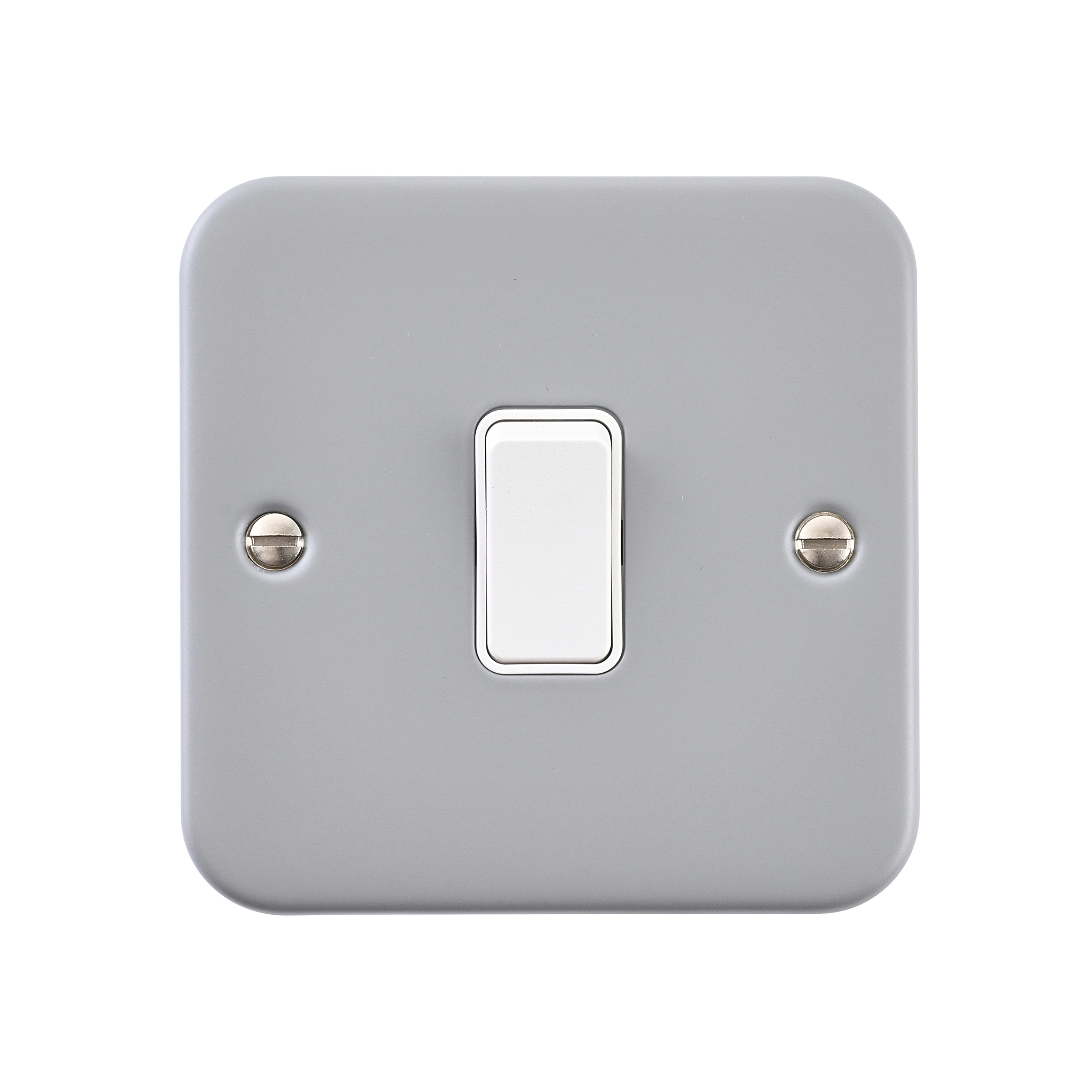

Saxby Metal Clad 10AX 1G 2-Way Switch – MC101
Part No Description
MC101 Metal Clad 10AX 1G 2-Way Switch
- Our 10AX rated switch boasts captive screws which provide for quick, easy and hassle free installation
- Supplied with fixing screws
- 2 way switching allows for a secondary switch position in the circuit

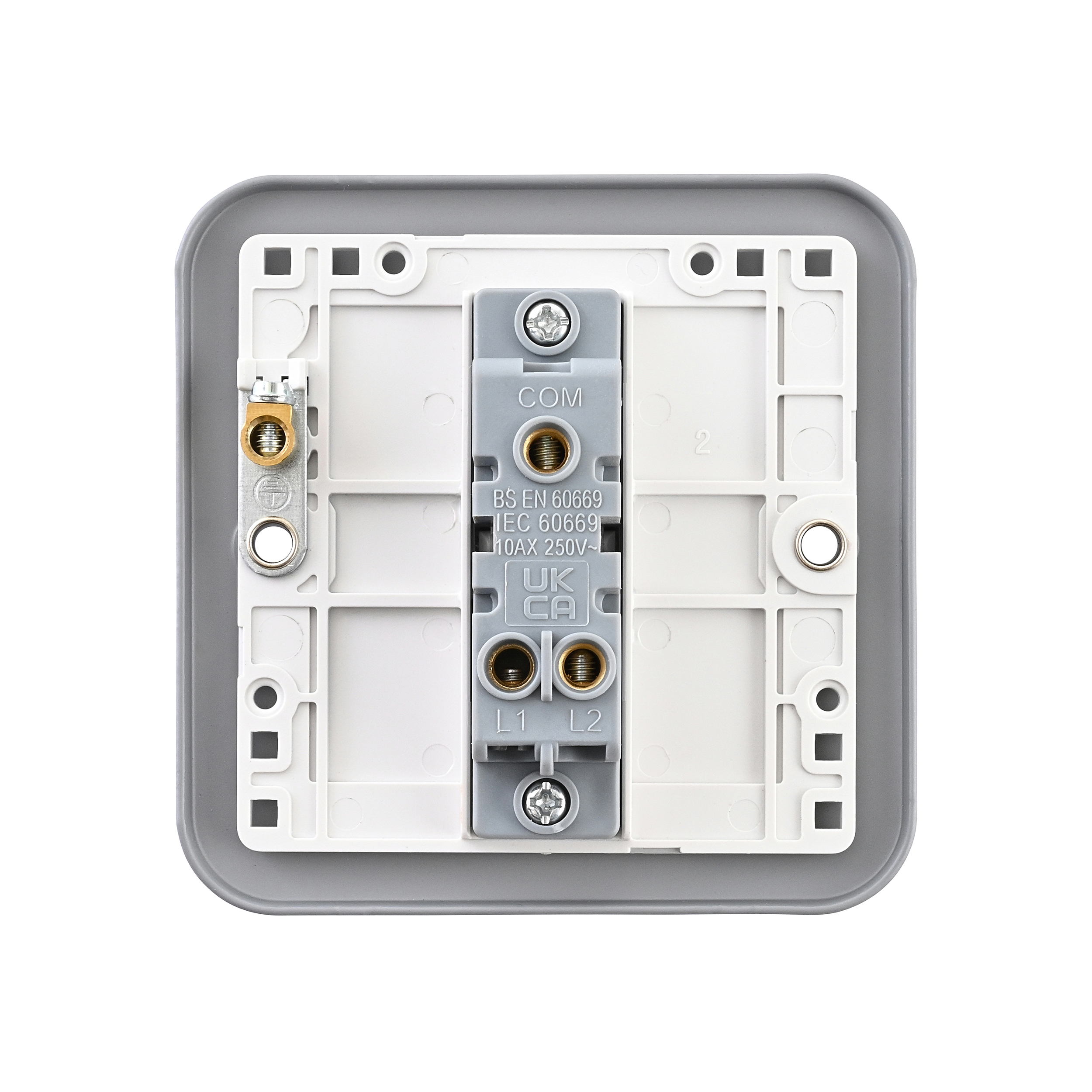

- Etched terminal markings for quick identification

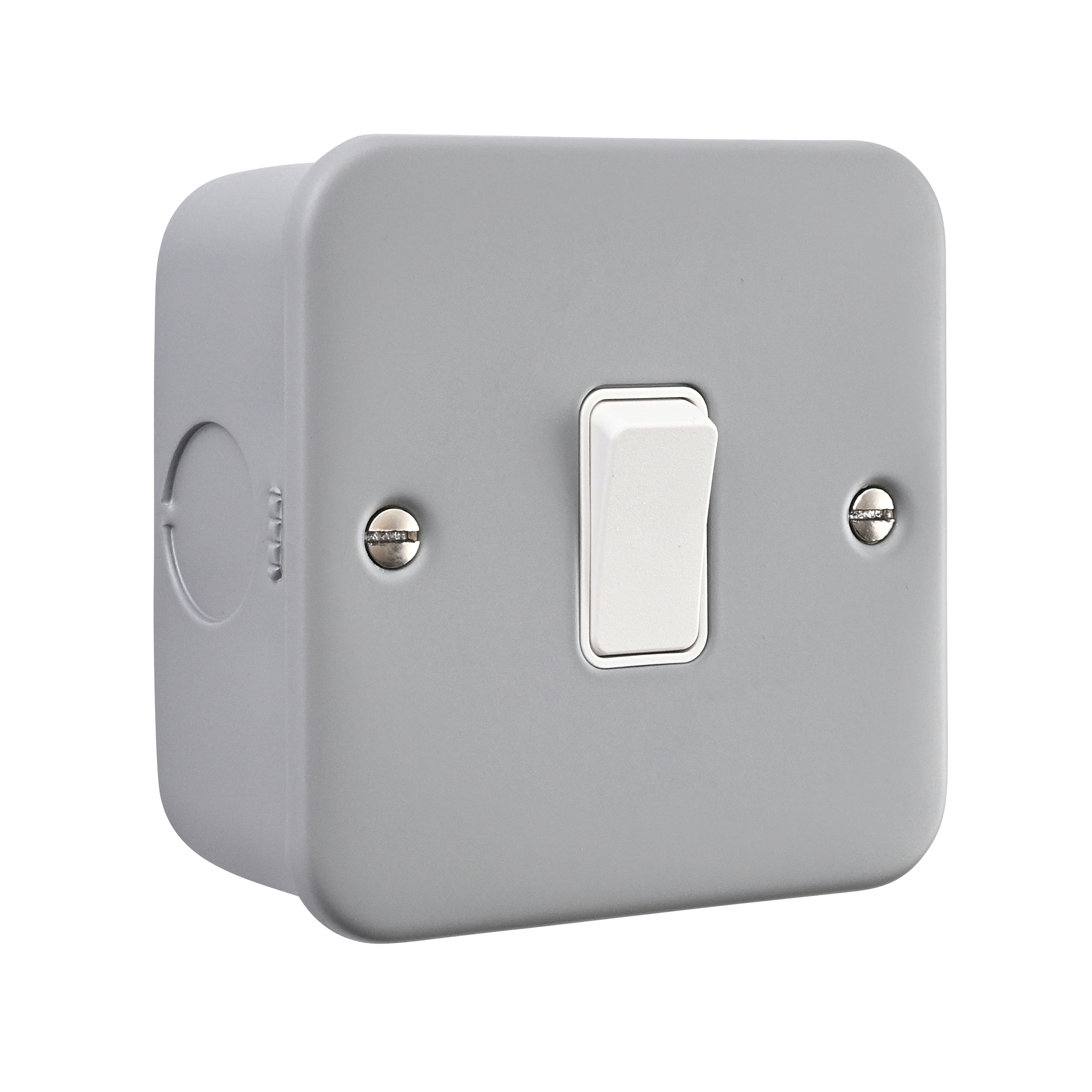

- Multiple knockout entry points on surface box for 20mm conduit giving you complete versatility when installing
- Finished in a high quality powder coating to help protect against scratches
- We recommend using a standard metal surface box with a depth of 40mm – MC901
- Certified to IEC 60669-1
Colour Finish: Silver effect paint
Captive Terminal Screw: YES
Fixing Screws Supplied: YES
Terminal Capacity (mm): 6²*1/ 4²*1/ 2.5²*3
Number of Earth Terminals: 1
Screw Caps: NO
Switch Type: TWO WAY
Anti-Microbial Property: YES
Operating Voltage: 250V 50Hz
Dimensions: Height (mm) 82 x Width (mm) 82 x Depth (mm) 42.2
