Saxby LinX65 LED Tri-Proof Batten | 4ft CCT | 18W/23W/28W/33W | X-Series – 122356
Part No Description
122356 LinX65 LED Tri-Proof Batten | 4ft CCT | 18W/23W/28W/33W | X-Series
Saxby LinX65 LED Tri-Proof Batten – 4ft X-Series
The Saxby LinX65 LED Tri-Proof Batten (4ft X-Series) is a robust, installer-friendly LED batten designed for commercial and industrial environments. It features selectable colour temperature (CCT), adjustable wattage, and a range of plug-and-play upgrade options for maximum flexibility.
Key Features

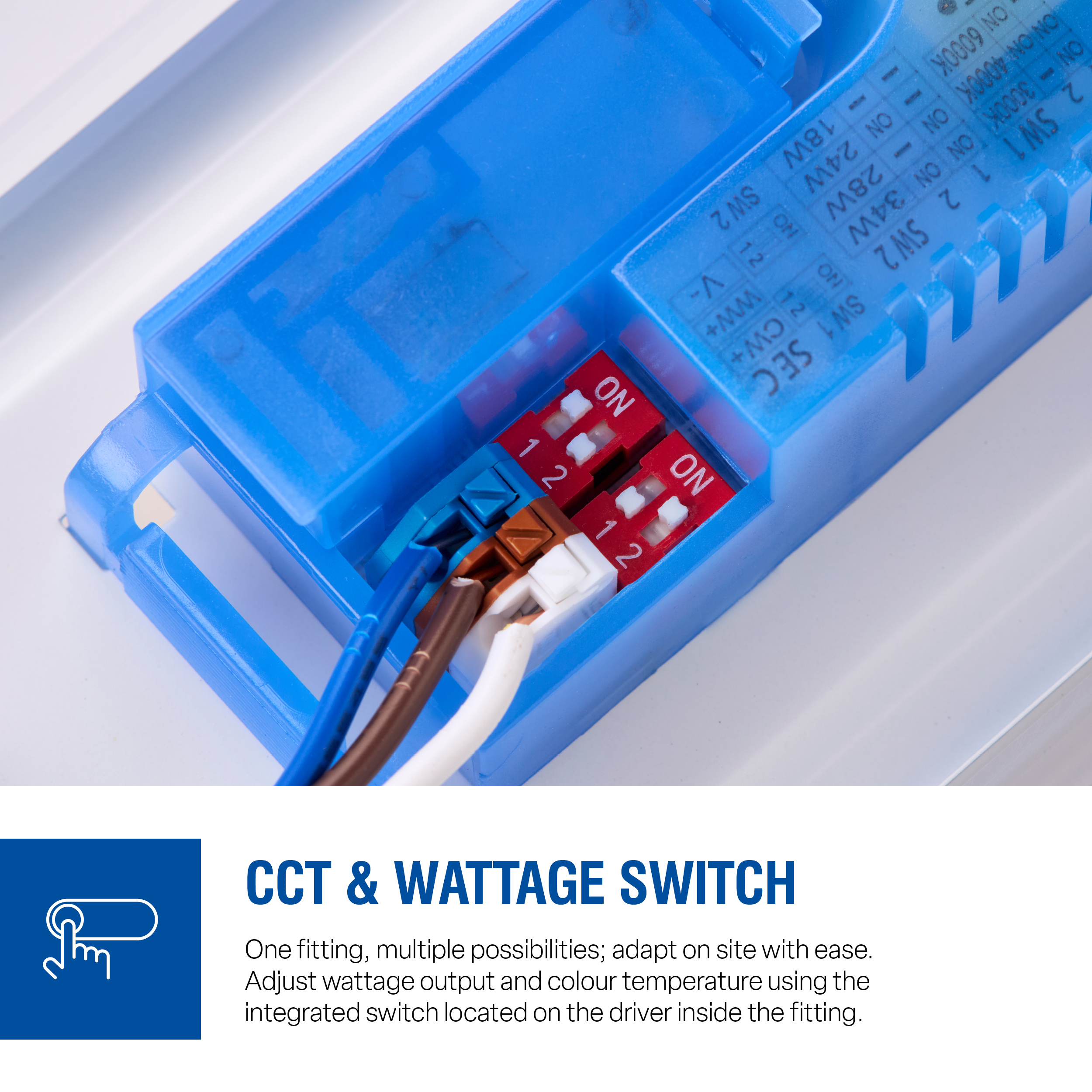

- Selectable Wattage: 18W / 23W / 28W / 33W

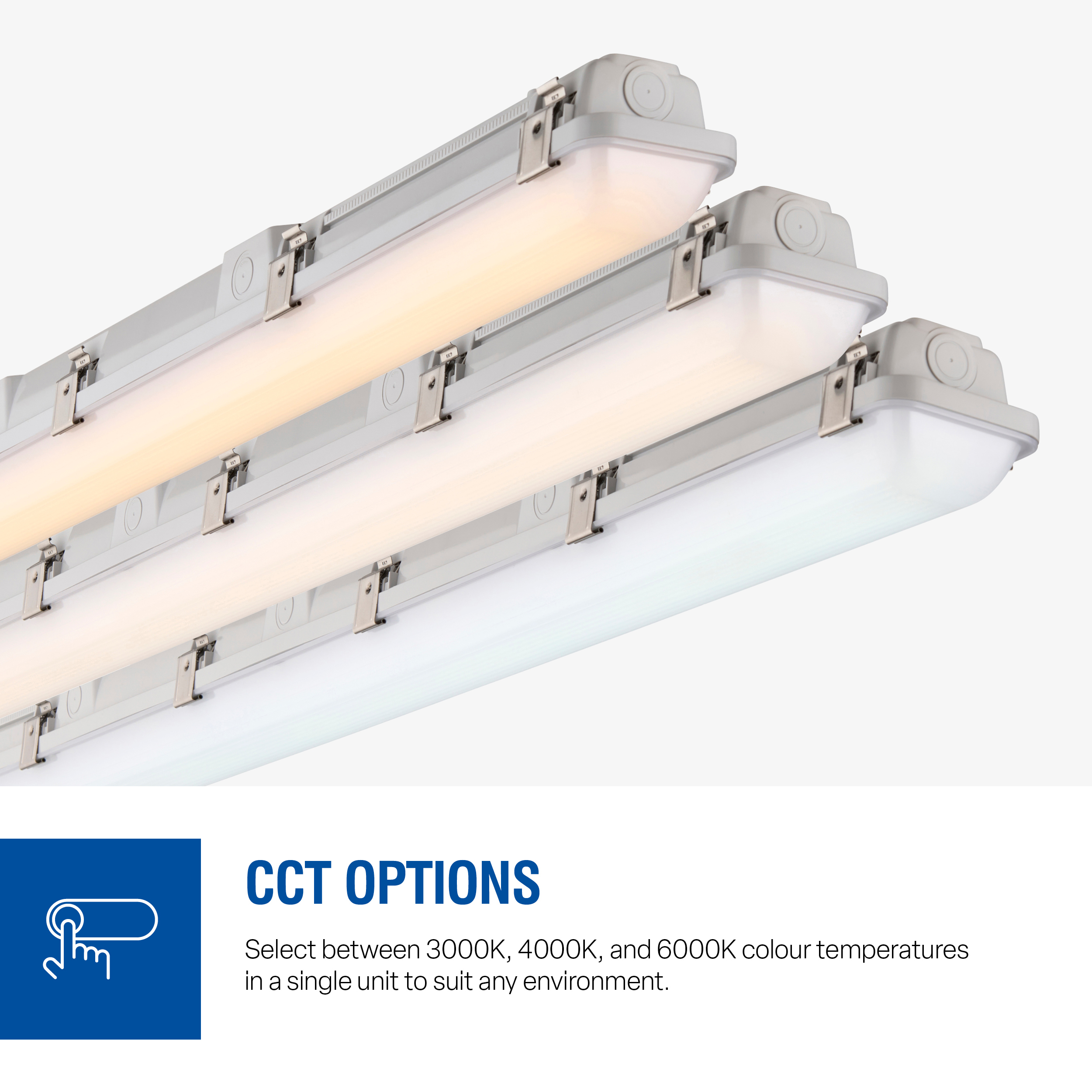

- Selectable Colour Temperature (CCT):
- 3000K (Warm White)
- 4000K (Cool White)
- 6000K (Daylight)
- Light Output:
- 18W – 2,700 lumens
- 23W – 3,500 lumens
- 28W – 4,200 lumens
- 33W – 5,000 lumens
- Efficiency: Up to 150 lm/W
- IP Rating: IP65 (dust-tight and water resistant)
- Impact Rating: IK08
- Operating Voltage: 220–240V AC
- Electrical Class: Class I
Construction
- Frosted polycarbonate diffuser
- Grey polycarbonate housing
- Durable, anti-corrosive construction suitable for demanding environments
Installation Features
- Push-fit loop-in/loop-out connector for faster wiring
- Multiple cable fixing positions within the base

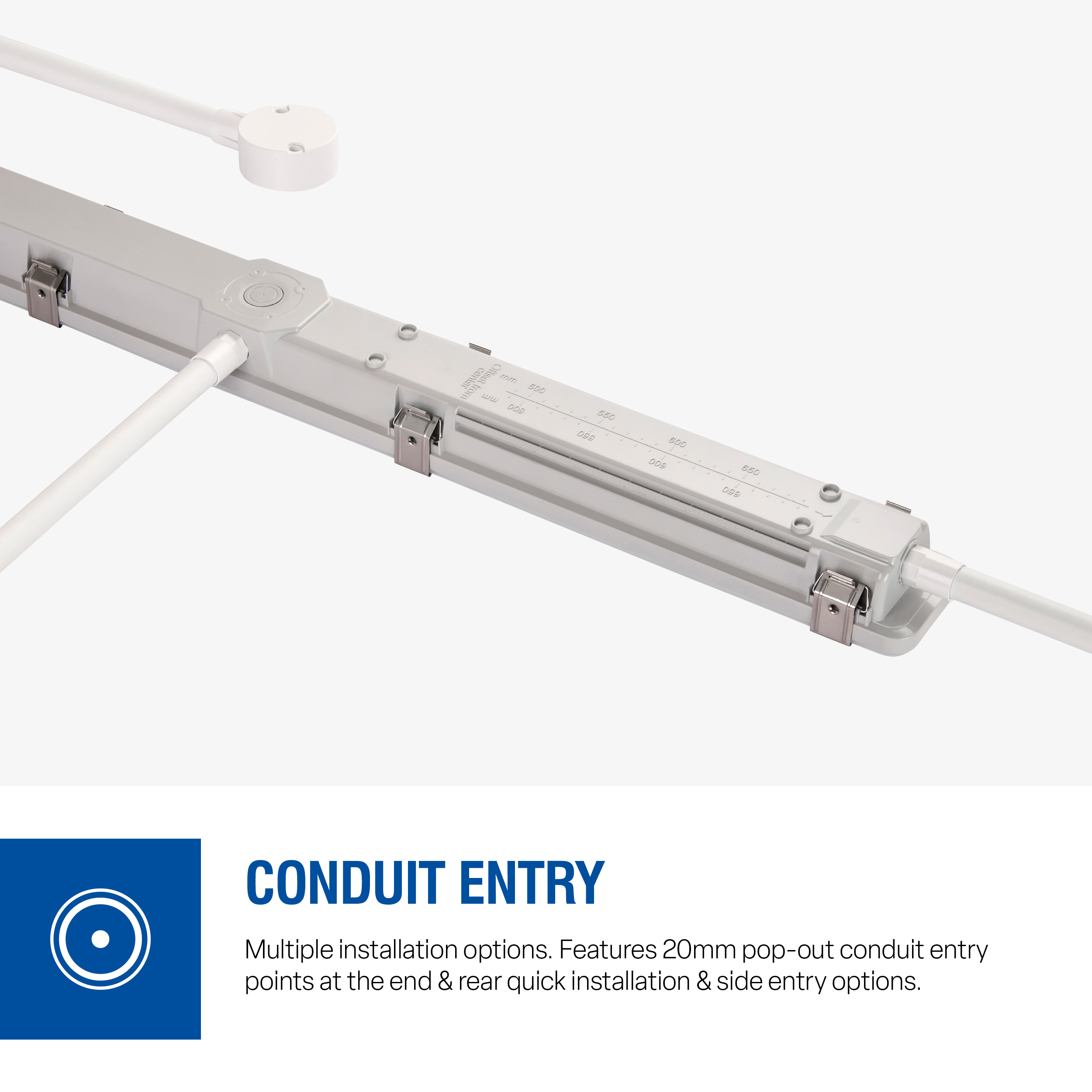

- Rear and end pop-out conduit entry points
- Side drill-out cable entry points

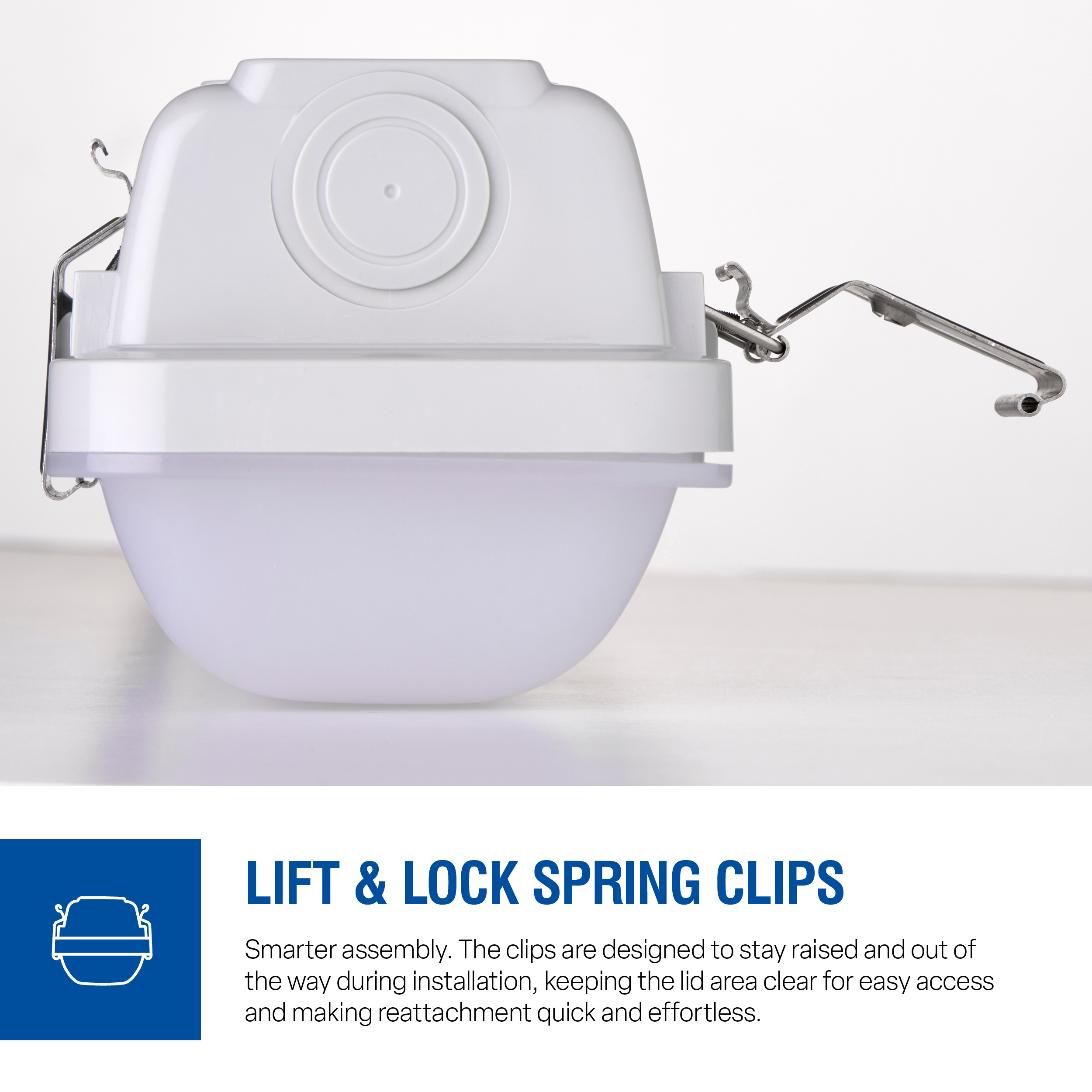

- Locking spring clips

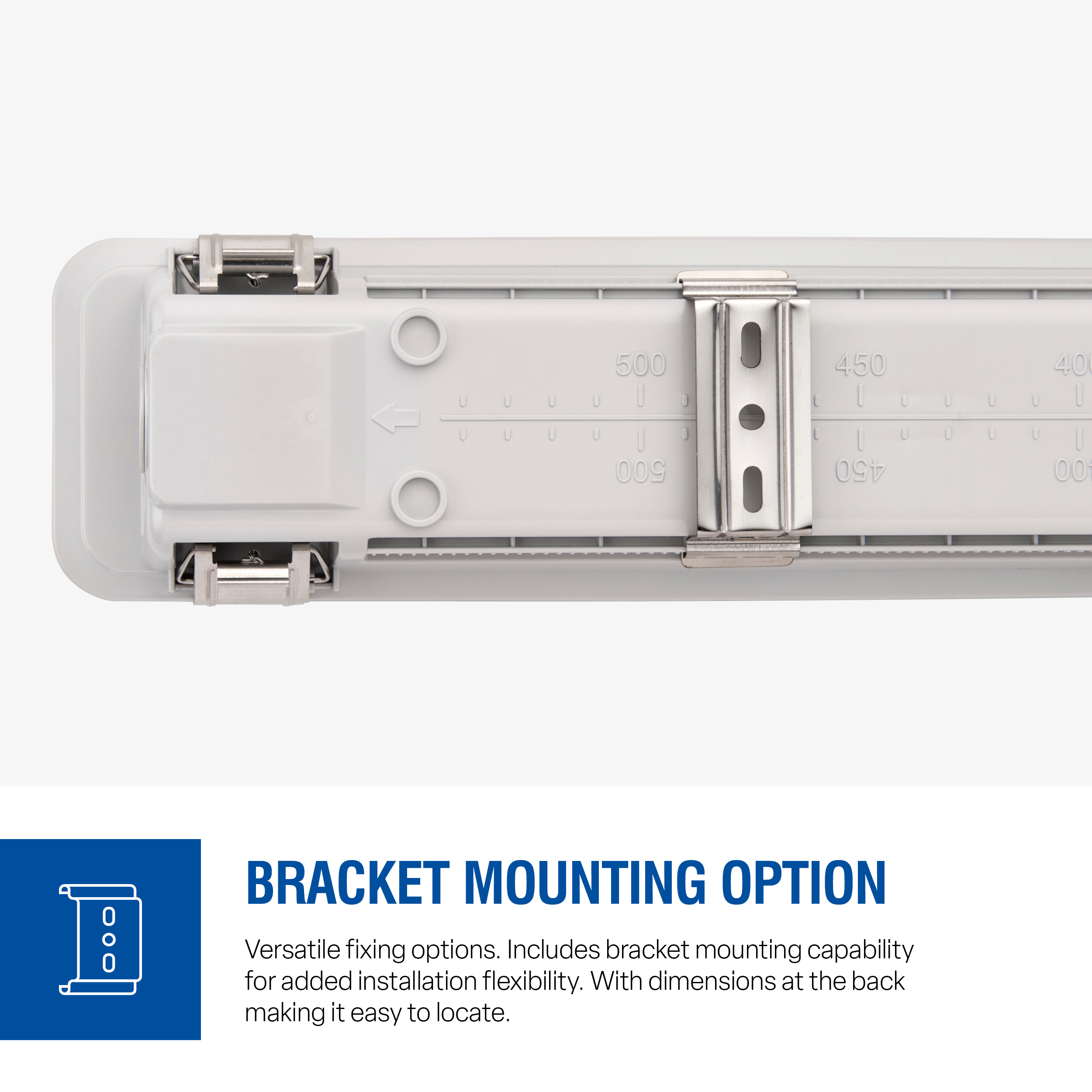

- Bracket mounting options

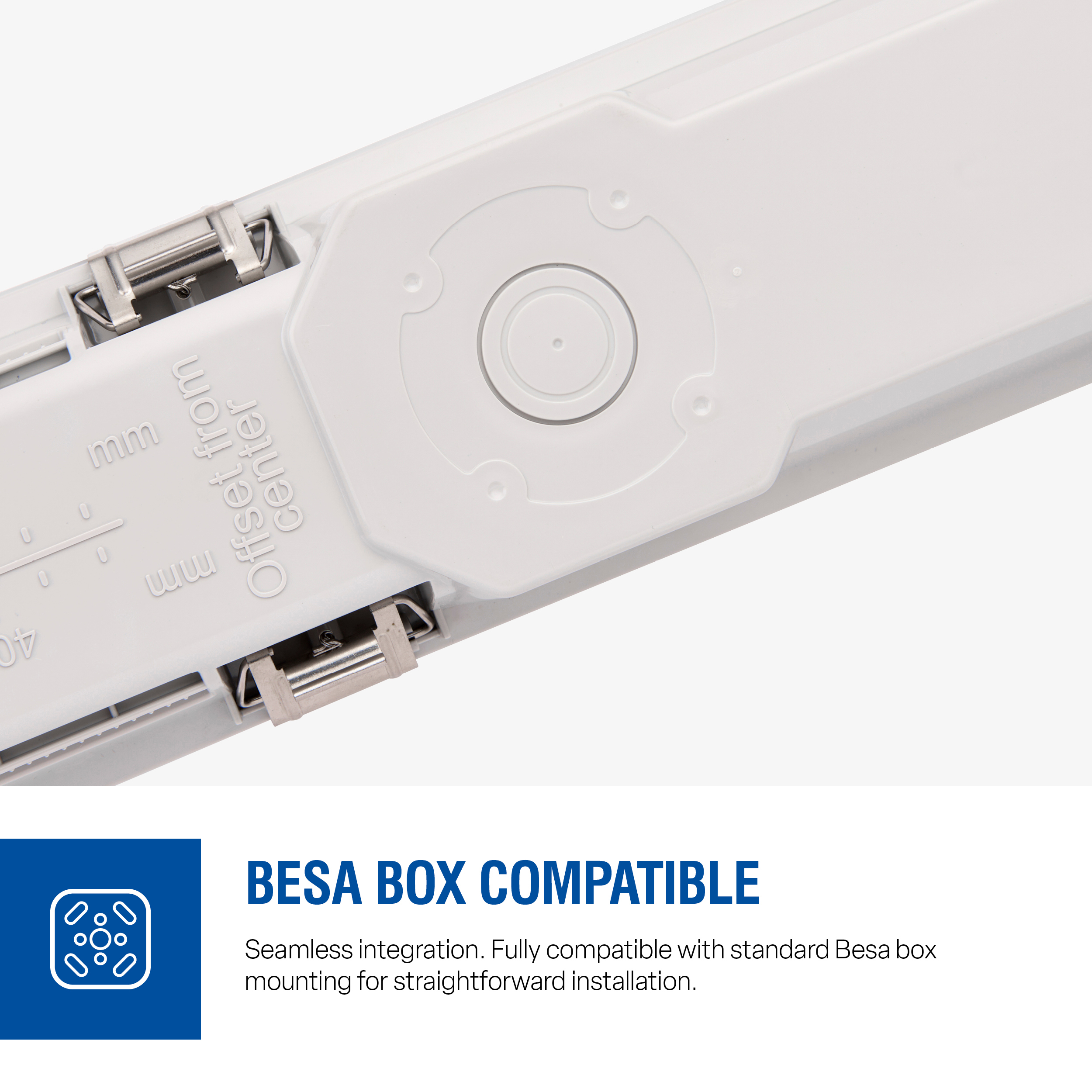

- Compatible with Besa box mounting

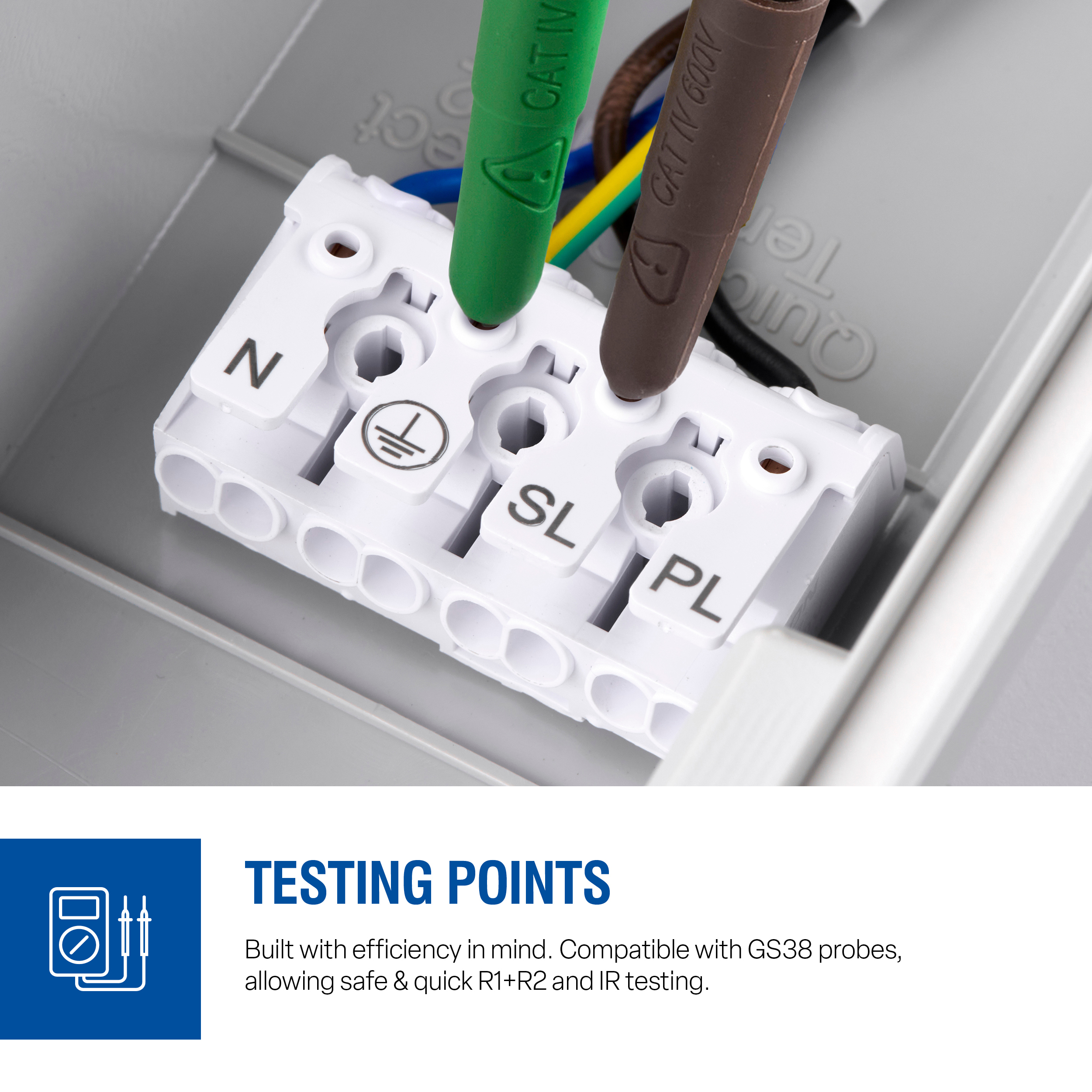

- GS38-compatible testing points for safe electrical testing
Upgrade Options
True plug-and-play accessories (tool-free installation):

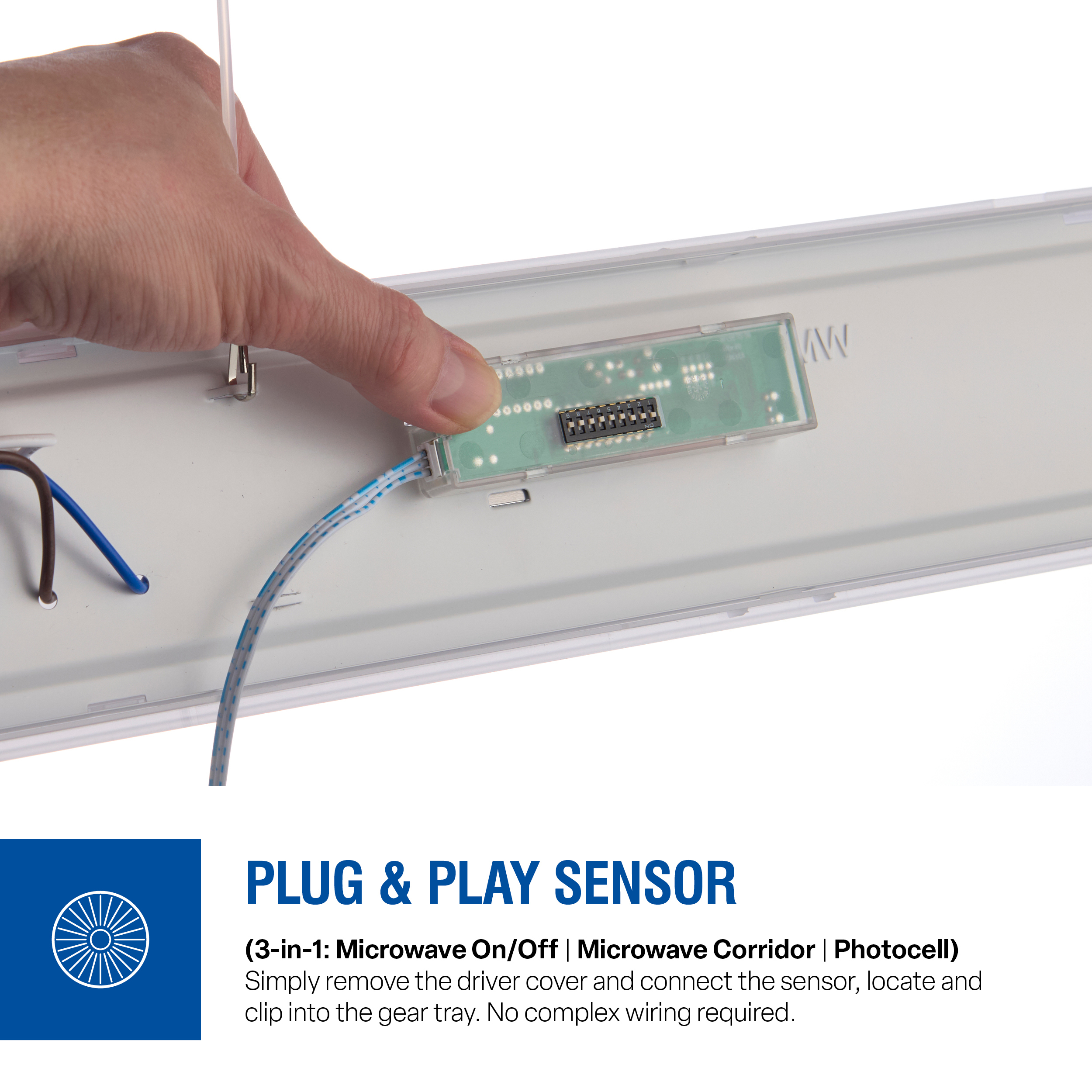

- Microwave sensor
- On/Off sensor
- Photocell sensor
- Emergency conversion module
Dimensions
| Specification | Measurement |
|---|---|
| Length | 1263 mm |
| Width | 88 mm |
| Depth (Projection) | 81 mm |
Typical Applications
Ideal for:
- Warehouses
- Garages
- Workshops
- Car parks
- Factories
- Plant rooms
- Service corridors
- Agricultural buildings
- External covered walkways
This fitting combines high efficacy (150 lm/W), IP65 weather protection, IK08 impact resistance, and installer-focused design, making it well suited for both new installations and retrofit projects where flexibility and installation speed are important.
