QSP34 Splitter Junction Box

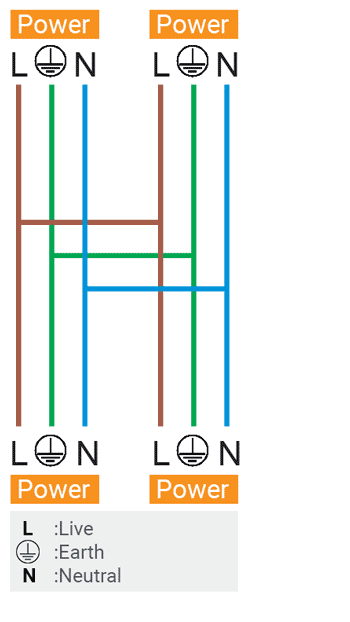

The Quickwire Splitter is for use in conjunction with a Switch & Load. It allows for connection of multiple luminaires.
Connect to the ‘load’ inlet of your Switch & Load to create three separate ‘load’ connections. If your circuit has more than three luminaires then use one inlet on your initial Splitter to connect another Splitter. Repeat as needed.
Specification
| Rating | 16A 250Va.c.Overcurrent protection limited to 16A |
|---|---|
| Standards | BS EN 60670-22BS 5733-MF |
| Conductor Size | 1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores Class 1 (conductors) |
| Dimensions | 23mm x 31mm x 84mm (cable entries inserted) |
| IP Rating | IP30 |

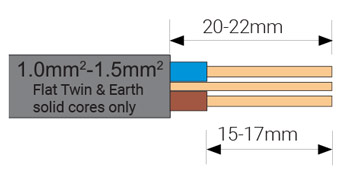

Cable Preparation
Cut and strip the 1.0mm² / 1.5mm² solid core, flat twin and earth cable as shown above:
Step 1

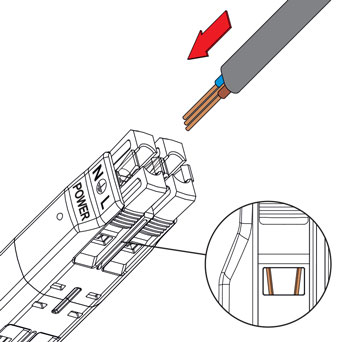

Orientate and align pre-cut cable and insert into appropriate cable entry point. Each wire should guide itself into the correct terminal. Push cable until there is resistance.
Step 2
Check there is a sufficient length of outer cable sheath available for clamping.(fig.1) and that an unbroken length of conductor occupies the full extent of the window (fig.2).
Step 3

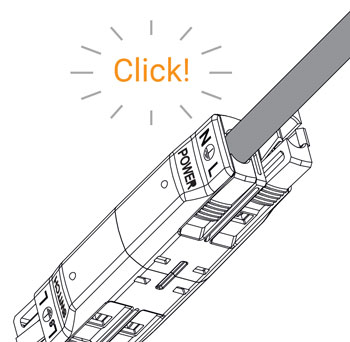

Push cable until it snaps into place. Repeat process for additional cables. Push in any unused cable entries.
If required the Quickwire can be fitted onto a surface using the Quickwire mounting clip (order separately). Warning: Do not cover
Step 1

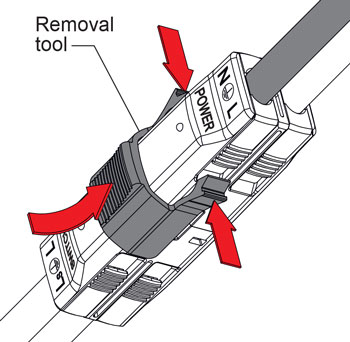

Mount removal tool. Place thumb on thumb grip and using other hand, squeeze side arms so they locate beneath the snaps.
Step 2

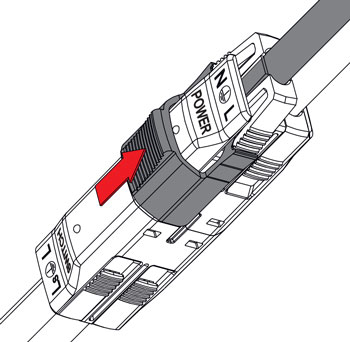

Press down on thumb grip and push forward until removal tool stops.
Step 3
Release removal tool and pull out cable.
