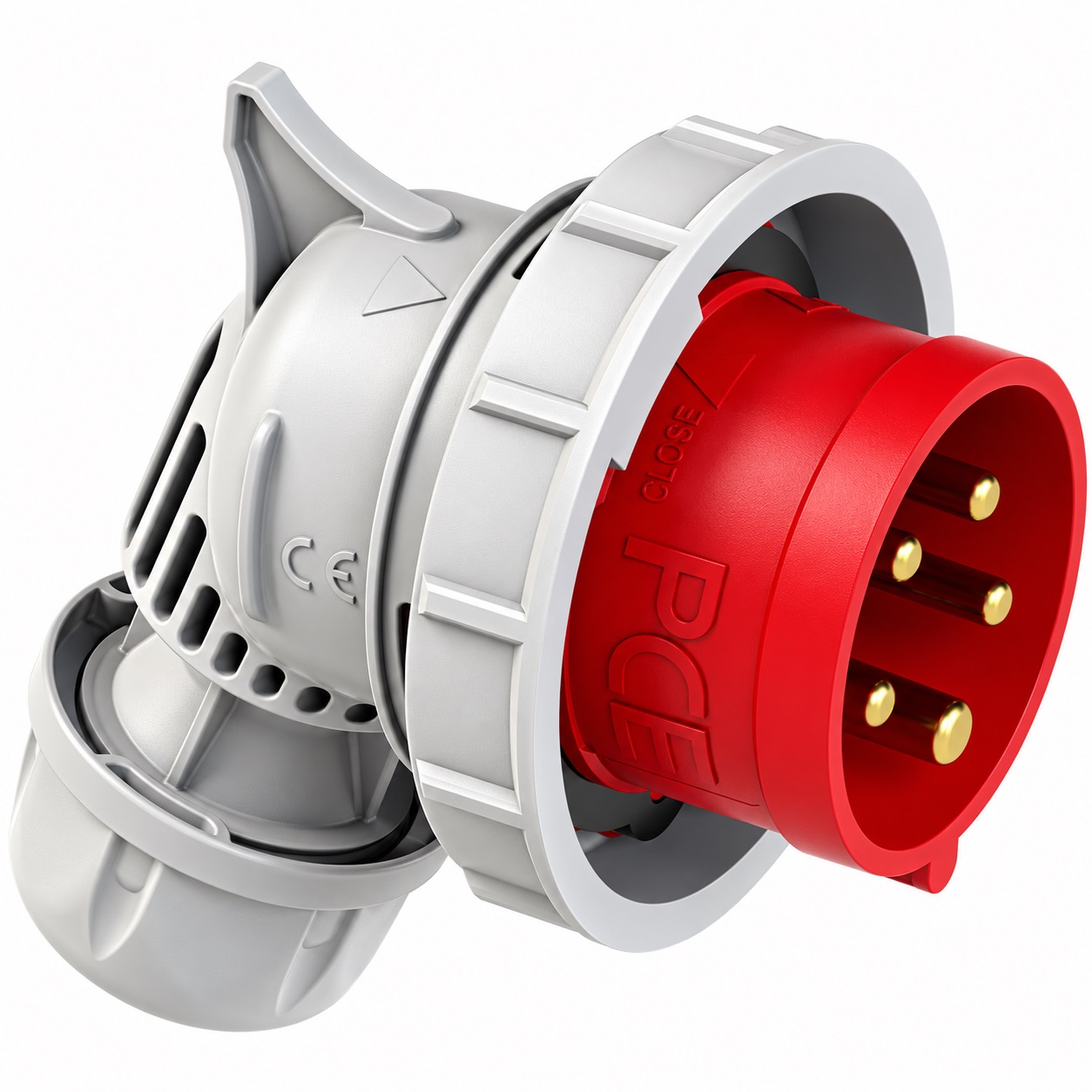

PCE 32A 5 Pin (3P+N+E) Red IP67 Industrial Angled Plug 415V – 80252-6
£22.04 Excl. VAT
These are due in 21.10.26
PCE 32A 5 Pin (3P+N+E) Red IP67 Industrial Angled Plug 415V – 80252-6
Part No Description
80252-6 32A 5 Pin (3P+N+E) Red IP67 Industrial Angled Plug 415V
The PCE 80252-6 CEE Angled Plug is a heavy-duty 32A, 5-pin industrial plug designed for reliable three-phase power connections in demanding commercial and industrial environments. Its angled construction provides convenient cable routing while helping to reduce unnecessary strain on the cable and connection point.
Featuring a 5-pin (3P+N+E) configuration with a 6h earth position, the plug is designed for 200/346V to 240/415V AC, 50/60Hz applications. The red identification colour corresponds to its 400V industrial application. 80252-6 Data Sheet
Manufactured from durable PC/ABS plastic, the 80252-6 incorporates brass contacts and secure screw-terminal connections. Its IP67 protection rating provides a high degree of protection against dust and water, making it suitable for installations where robust environmental protection is required. 80252-6 Data Sheet
The plug features a gland-nut cable entry suitable for cable diameters from 11.5mm to 22mm. Flexible conductors from 2.5mm² to 6mm² can be accommodated, providing flexibility across a range of 32A industrial installations. 80252-6 Data Sheet 80252-6 Data Sheet
Key Features
- 32A CEE industrial angled plug
- 5 Pin – 3P+N+E
- 400V red identification
- 6h clock position
- IP67 rated
- Rated voltage: 200/346V – 240/415V AC
- Frequency: 50/60Hz
- Tough PC/ABS plastic housing
- High-quality brass contacts
- Secure screw-terminal connection
- Gland-nut cable entry
- Suitable cable diameter: 11.5–22mm
- Flexible conductor capacity: 2.5–6mm²
- Ambient operating temperature: -25°C to +40°C
- Temperature resistance: -25°C to +80°C
- Net weight: 0.278kg
- PCE Part Number: 80252-6
- EAN: 9003399810879
Available on back-order
Description
These are due in 21.10.26
PCE 32A 5 Pin (3P+N+E) Red IP67 Industrial Angled Plug 415V – 80252-6
Part No Description
80252-6 32A 5 Pin (3P+N+E) Red IP67 Industrial Angled Plug 415V
The PCE 80252-6 CEE Angled Plug is a heavy-duty 32A, 5-pin industrial plug designed for reliable three-phase power connections in demanding commercial and industrial environments. Its angled construction provides convenient cable routing while helping to reduce unnecessary strain on the cable and connection point.
Featuring a 5-pin (3P+N+E) configuration with a 6h earth position, the plug is designed for 200/346V to 240/415V AC, 50/60Hz applications. The red identification colour corresponds to its 400V industrial application. 80252-6 Data Sheet
Manufactured from durable PC/ABS plastic, the 80252-6 incorporates brass contacts and secure screw-terminal connections. Its IP67 protection rating provides a high degree of protection against dust and water, making it suitable for installations where robust environmental protection is required. 80252-6 Data Sheet
The plug features a gland-nut cable entry suitable for cable diameters from 11.5mm to 22mm. Flexible conductors from 2.5mm² to 6mm² can be accommodated, providing flexibility across a range of 32A industrial installations. 80252-6 Data Sheet 80252-6 Data Sheet
Key Features
- 32A CEE industrial angled plug
- 5 Pin – 3P+N+E
- 400V red identification
- 6h clock position
- IP67 rated
- Rated voltage: 200/346V – 240/415V AC
- Frequency: 50/60Hz
- Tough PC/ABS plastic housing
- High-quality brass contacts
- Secure screw-terminal connection
- Gland-nut cable entry
- Suitable cable diameter: 11.5–22mm
- Flexible conductor capacity: 2.5–6mm²
- Ambient operating temperature: -25°C to +40°C
- Temperature resistance: -25°C to +80°C
- Net weight: 0.278kg
- PCE Part Number: 80252-6
- EAN: 9003399810879
