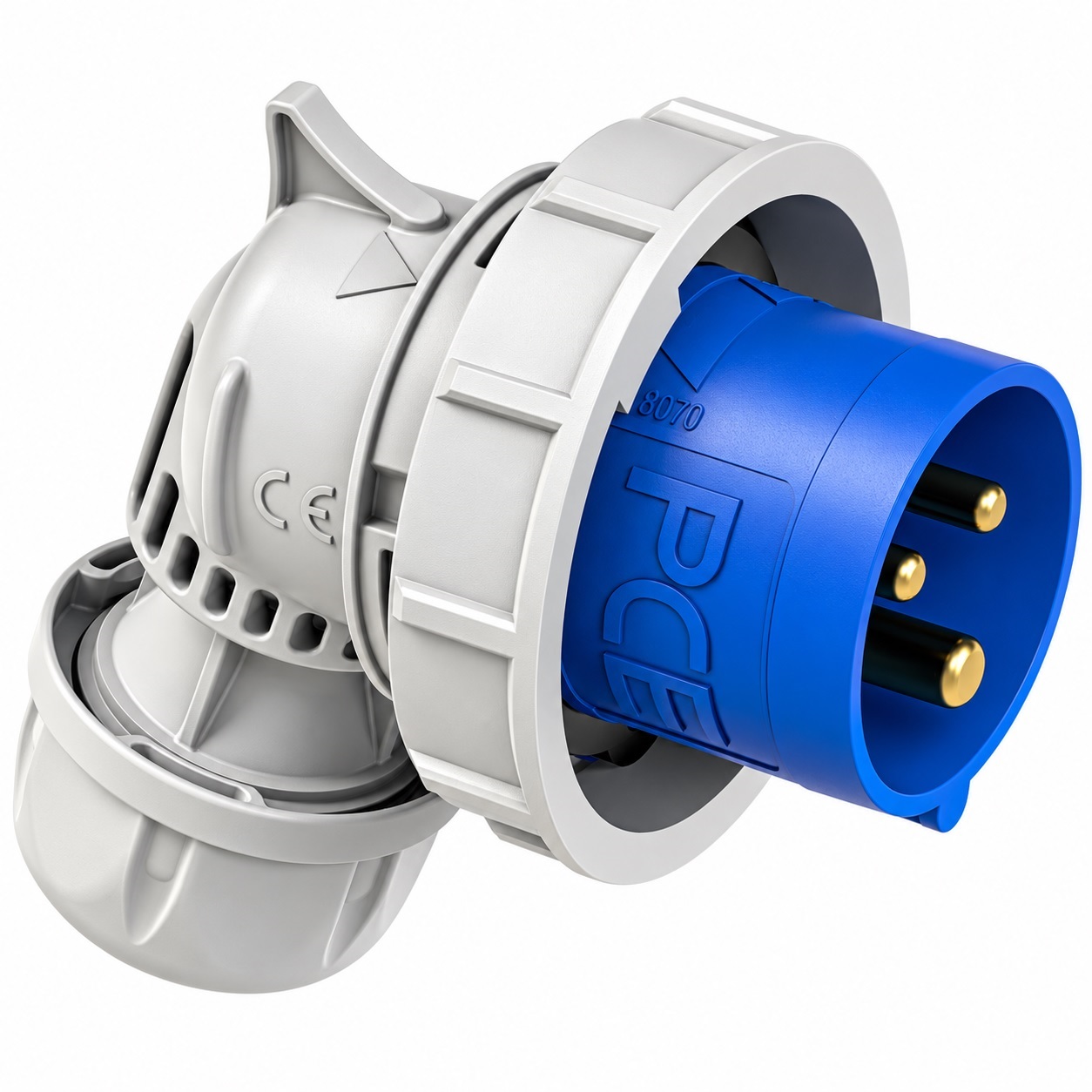

PCE 32A 3 Pin (2P+E) Blue IP67 Industrial Angled Plug 240V – 80232-6

The PCE 80232-6 CEE Angled Plug is a heavy-duty industrial plug designed to provide a secure and dependable power connection in demanding environments. Rated at 32A and 200–250V AC, it features a 3-pin (2P+E) configuration with a 6h earth position, making it suitable for standard 230V industrial applications. 80232-6 Data Sheet

Featuring an IP67 protection rating, the plug is designed for applications where a high level of protection against dust and water ingress is required. Its angled construction provides a practical cable entry arrangement and can help reduce cable strain when installed in confined or frequently used locations.

The plug is manufactured from a durable PC/ABS plastic housing with brass contacts and uses secure screw-terminal connections. A gland nut cable entry provides strain relief and accommodates cable diameters from 11.5mm to 20mm. 80232-6 Data Sheet

Designed for flexible conductors between 2.5mm² and 6mm², the PCE 80232-6 is a robust choice for workshops, industrial equipment, construction sites, temporary power distribution and other commercial or industrial installations.

Key Features

• 32A rated current
• 200–250V AC, 50/60Hz
• Standard 230V EN 60309-2 configuration
• 3 Pin (2P+E)
• 6h earth position
• Blue identification colour
• Heavy-duty IP67 protection
• Practical angled plug design
• Durable PC/ABS housing
• Brass / CuZn contacts
• Secure screw-terminal connection
• Gland nut cable entry
• Suitable for 11.5–20mm cable diameter
• Suitable for 2.5–6mm² flexible conductors
• Operating ambient temperature from -25°C to +40°C
• Temperature resistance from -25°C to +80°C 80232-6 Data Sheet 80232-6 Data Sheet

Technical Specifications
