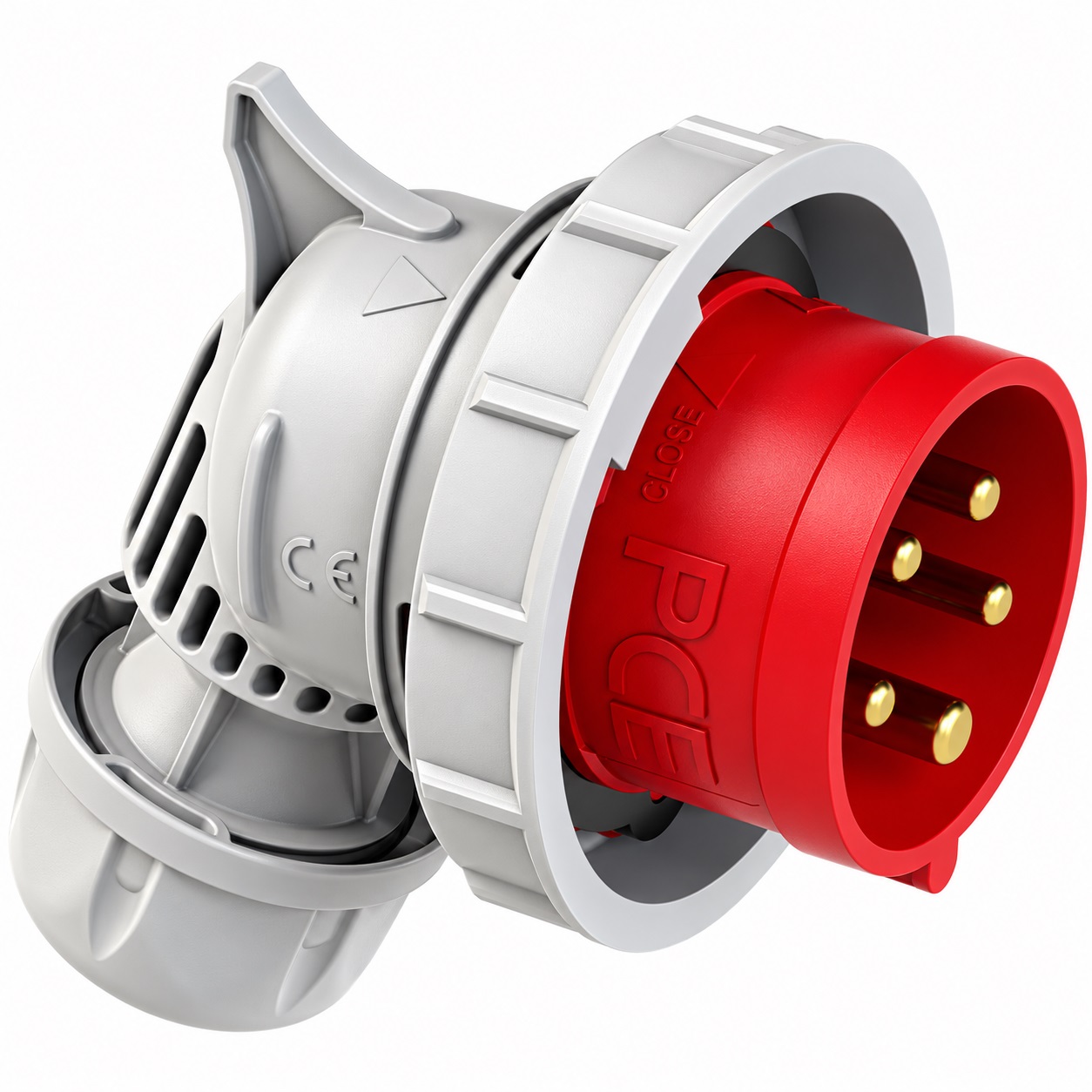

PCE 16A 5 Pin (3P+N+E) Red IP67 Industrial Angled Plug 415V – 80152-6

The PCE 80152-6 CEE Angled Plug is a robust industrial power plug designed for reliable three-phase electrical connections in demanding commercial and industrial environments. Rated at 16A, it features a 5-pin (3P+N+E) configuration, 6h earth position and red identification colour for 400V applications. 80152-6 Data Sheet

Featuring an IP67 protection rating, the plug is designed for applications requiring a high level of protection against dust and water ingress. Its practical angled design helps provide convenient cable routing, making it particularly suitable for machinery, workshops, construction equipment and industrial power distribution.

The plug features a durable PC/ABS plastic housing, brass contacts and secure screw-terminal connections. A gland nut cable entry provides secure cable retention and accommodates cable diameters between 8mm and 16mm. 80152-6 Data Sheet

Suitable for flexible conductors from 1mm² to 2.5mm², the PCE 80152-6 provides a dependable connection solution across a wide operating temperature range.

Key Features

• 16A rated current
• 5 Pin (3P+N+E)
• 400V three-phase configuration
• Voltage range: 200/346V – 240/415V AC
• 50/60Hz
• 6h earth position
• Red identification colour
• IP67 rated
• Angled plug design
• Durable PC/ABS housing
• Brass / CuZn contacts
• Secure screw-terminal connections
• Gland nut cable entry
• Suitable for 8–16mm cable diameter
• Suitable for 1–2.5mm² flexible conductors
• Ambient operating temperature: -25°C to +40°C
• Temperature resistance: -25°C to +80°C 80152-6 Data Sheet 80152-6 Data Sheet
