PCE 16A 3 Pin (2P+E) Blue IP67 Industrial Angled Plug 240V – 80132-6

Description

These are due in 21.10.26

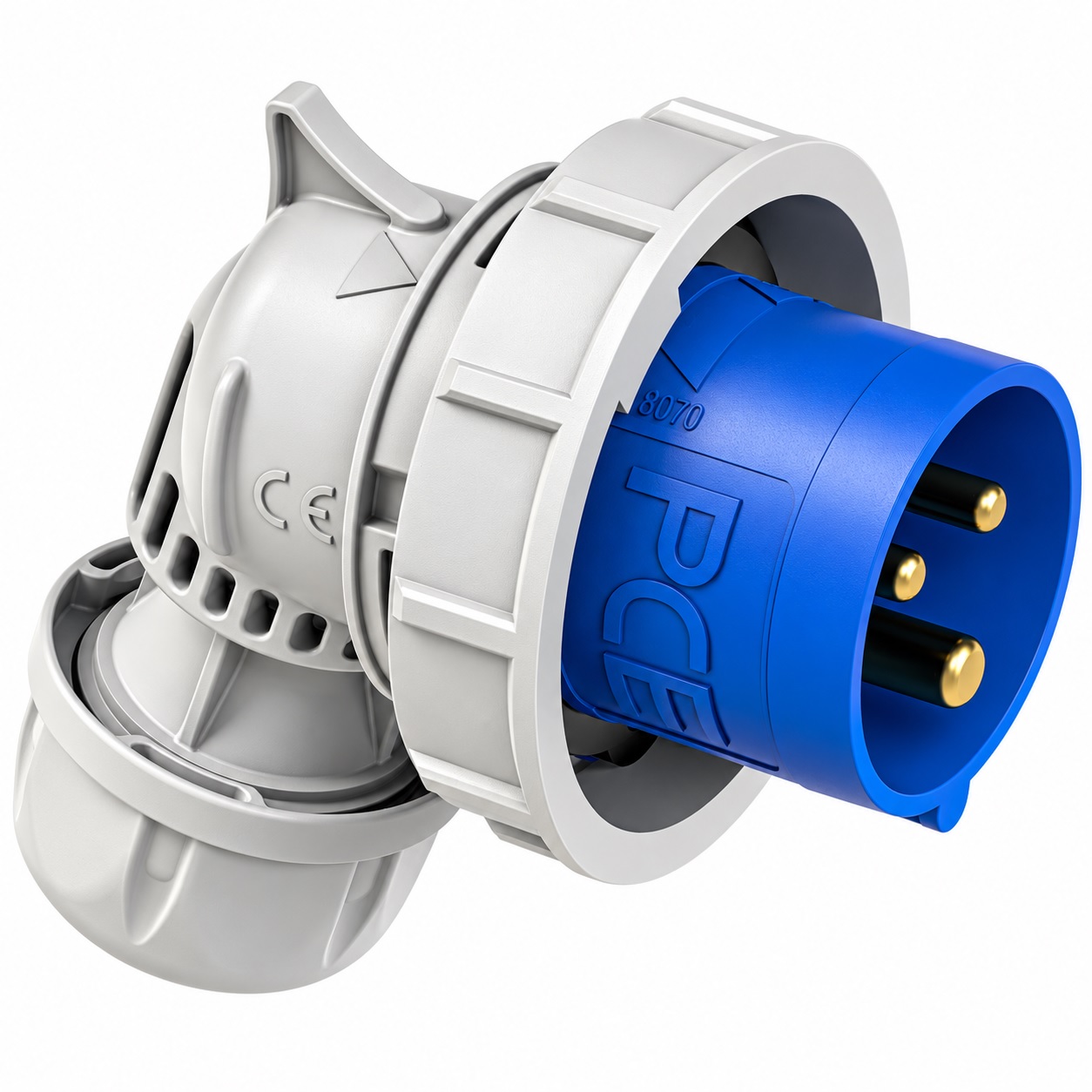

PCE 16A 3 Pin (2P+E) Blue IP67 Industrial Angled Plug 240V – 80132-6

Part No          Description

80132-6          16A 3 Pin (2P+E) Blue IP67 Industrial Angled Plug 240V

The PCE 80132-6 CEE Angled Plug is a robust industrial plug designed to provide a secure and reliable electrical connection in demanding environments. Rated at 16A and 200–250V AC, it features a 3-pin (2P+E), 6h configuration and the standard blue identification colour for 230V applications. 80132-6 Data Sheet

Featuring an IP67 protection rating, the plug provides a high level of protection against dust and water ingress, making it suitable for industrial, commercial and outdoor applications where dependable connections are essential. The angled design can also help provide a more practical cable route where installation space is limited. 80132-6 Data Sheet

Manufactured with a durable PA6 plastic housing and brass contacts, the 80132-6 uses conventional screw terminals for straightforward and secure cable termination. It accepts cables with an outside diameter of 6–15mm and flexible conductors from 1–2.5mm². 80132-6 Data Sheet 80132-6 Data Sheet

Key Features

• 16A rated current
• 200–250V AC, 50/60Hz
• 3 Pin – 2P+E
• 6h earth position
• Blue CEE industrial plug
• IP67 rated for demanding environments
• Angled plug design
• Durable PA6 plastic housing
• Brass (CuZn) contacts
• Secure screw-terminal connections
• Gland nut cable entry
• Suitable for 6–15mm cable diameter
• Suitable for 1–2.5mm² flexible conductors
• Operating ambient temperature: -25°C to +40°C
• Temperature resistance: -25°C to +80°C 80132-6 Data Sheet 80132-6 Data Sheet

Technical Specifications
