Niglon 3 Way Crane Pendant Up/Down/E-stop (2 x 2 Speed) – CPDS-3
Part No Description
CPDS-3 3 Way Crane Pendant Up/Down/E-stop (2 x 2 Speed)
3 button crane pendant pushbutton station made from reinforced ABS plastic for strength and rigidity. Control buttons are mechanically interlocked. Double speed contact operation. Internal channelling makes wiring easier. Strain relief glanding
Specification
Standards: BS EN 60947-5-1

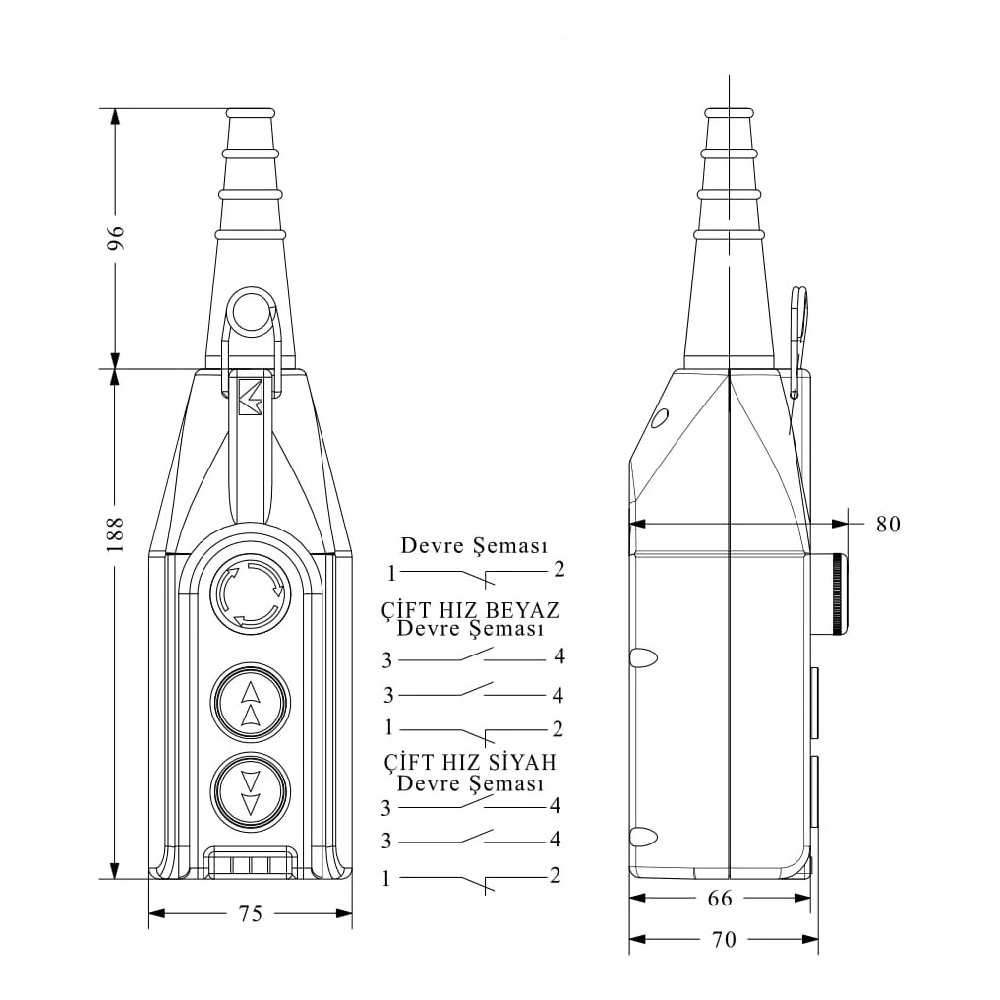

Overall depth: 284mm
Body depth: 188mm
Maximum width: 75mm
Maximum height: 80mm
Degree of protection: IP65
Contacts: 4A/230VAC
Contact material: AgNi
Mechanical life: >1M operations
Mechanical operating freqency: 900 on/off per hour
Electrical life: >100K operations
Electrical operating freqency: 900 on/off per hour
Insulation voltage Ui: 300V
Impulse withstand voltage Uimp: 2500V
Dielectric strength body-contact: 2500 VAC
Dielectric strength contact-contact: 1500 VAC
Operating temperature: -15°C to +80°C
