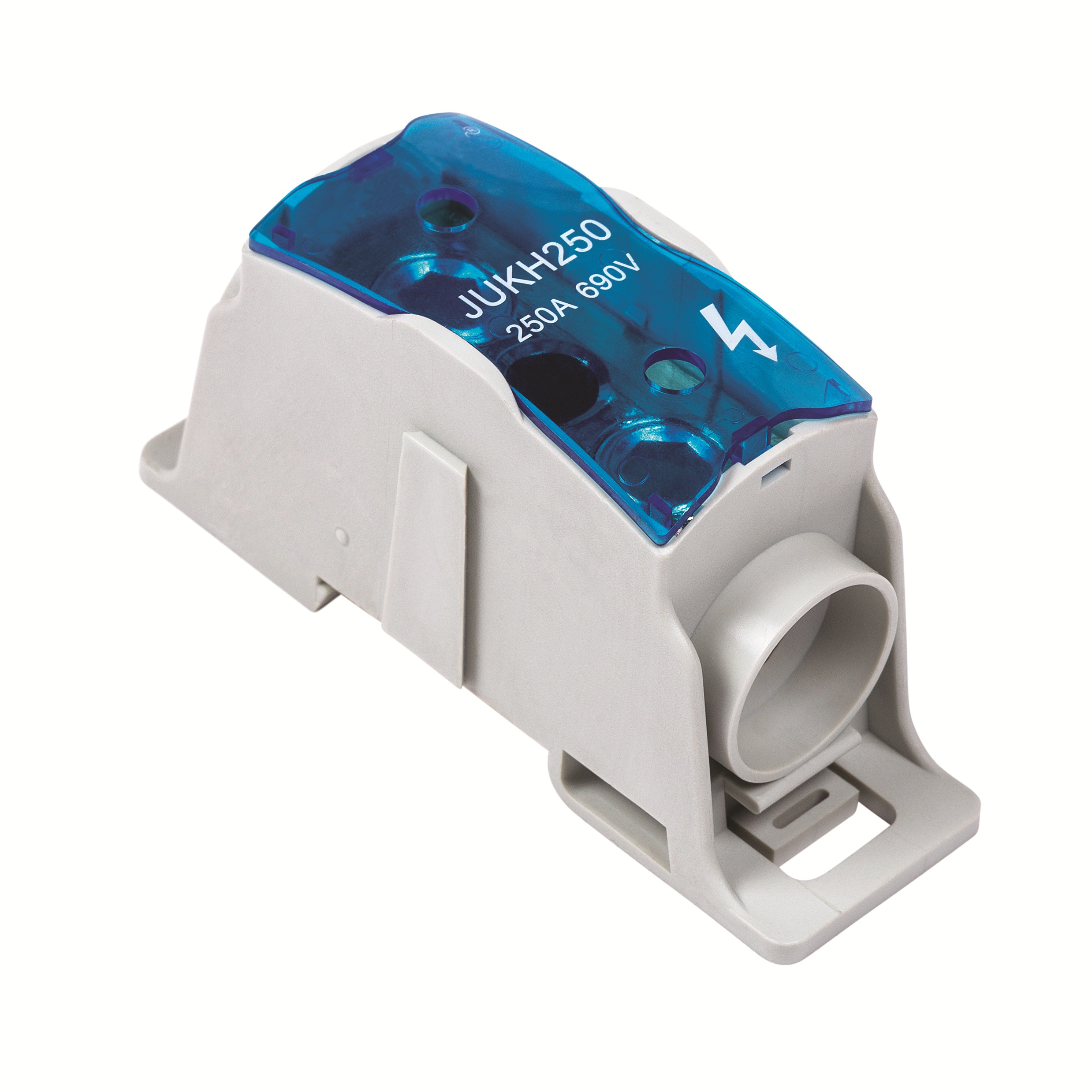

Niglon 250A SP Power Distribution Terminal Block – DIN-PB250
Part No Description
DIN-PB250 250A SP Power Distribution Terminal Block
Din rail mounting single pole terminal block for connection of power contacts. Clear cover gives visual inspection of connection.
Technical Specifications
Standard: EN60947-7-1
Number of poles: 1
Rated current UL/CSA: 255A
Rated current IEC: 250A
Rated voltage Ui: 1000V
Icw KA rms 1s: 14.4
Ipk KA: 42

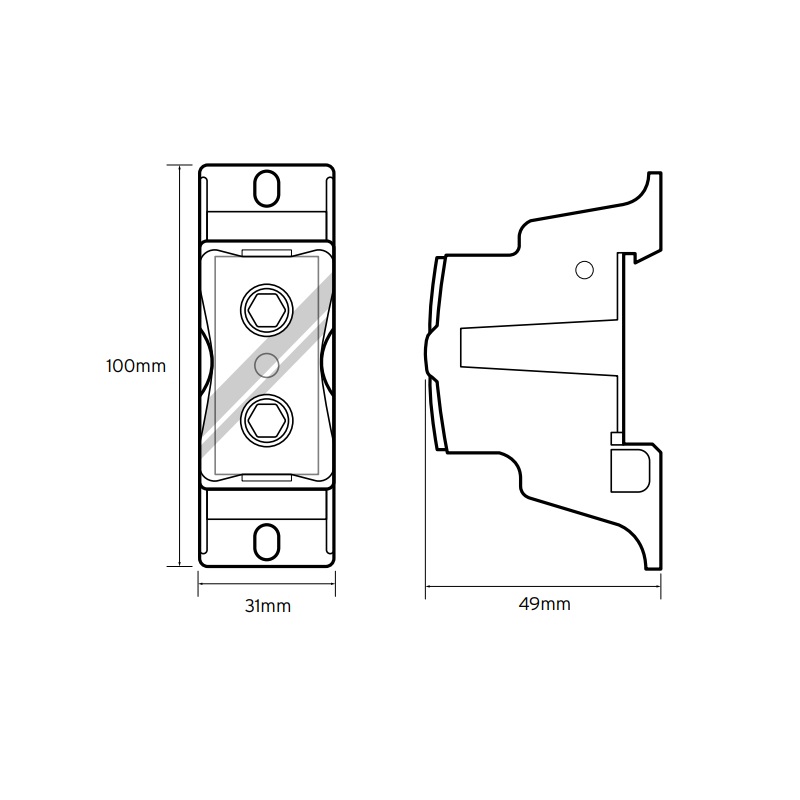

Width: 49mm
Height: 100mm
Depth: 31mm
Construction material: PA66 UL94-V-0
Terminal construction: Brass; Zn plated
Terminal capacity: 35mm² – 120mm²
Connection type: Hex head screw
Ingress protection: IP20
Weight: 725g
