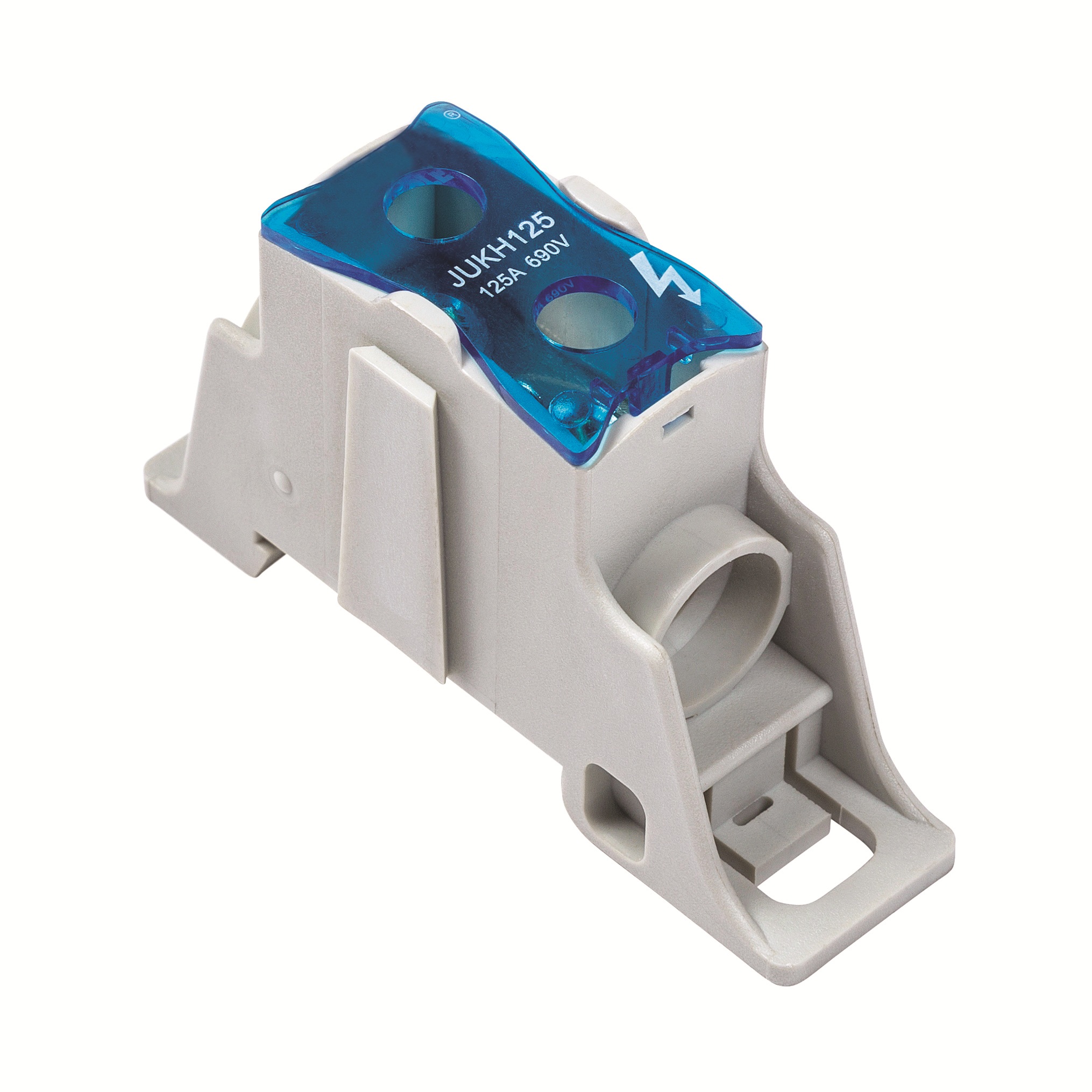

Niglon 125A SP Power Distribution Terminal Block – DIN-PB125
Part No Description
DIN-PB125 125A SP Power Distribution Terminal Block
Din rail mounting single pole terminal block for connection of power contacts. Clear cover gives visual inspection of connection.
Technical Specifications
Standard: EN60947-7-1
Number of poles: 1
Rated current UL/CSA: 150A
Rated current IEC: 125A
Rated voltage Ui: 1000V
Icw KA rms 1s: 4.2
Ipk KA: 25
Width: 20mm
Height: 73mm
Depth: 44mm
Construction material: PA66 UL94-V-0
Terminal construction: Brass; Zn plated
Terminal capacity: 10mm² – 35mm²
Connection type: Hex head screw
Ingress protection: IP20
Weight: 405g
