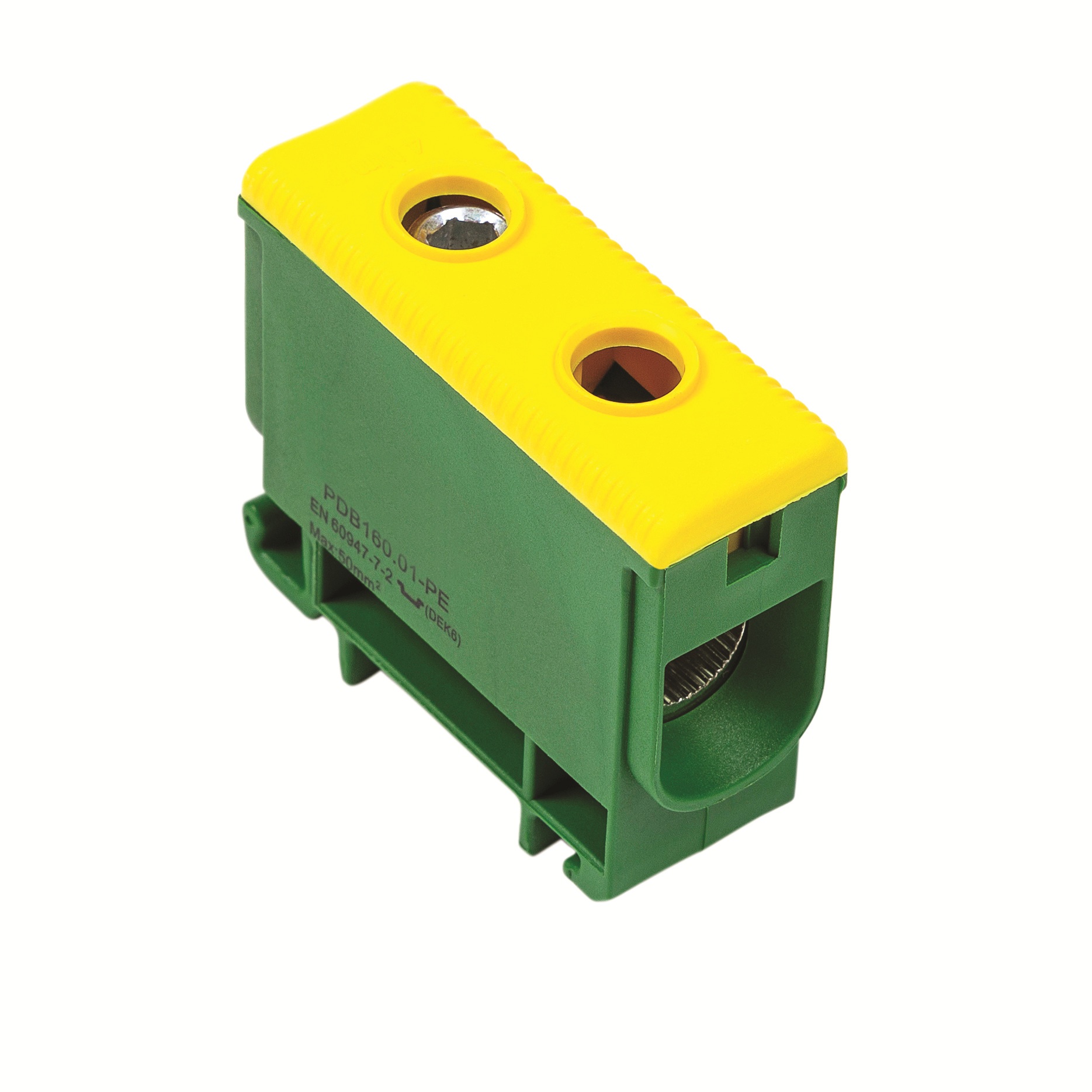

Niglon 125A SP Power Distribution Block Green/Yellow – DIN-PB125PE1
Part No Description
DIN-PB125PE1 125A SP Power Distribution Block Green/Yellow
Din rail mounting single pole terminal block for connection of power contacts. Modular design means that individual units can be stacked along the rail.
Technical Specifications
Standard: EN60947-7-1
Number of poles: 1
Colour: Green/Yellow
Rated current: 125A
Rated voltage Ui: 800V

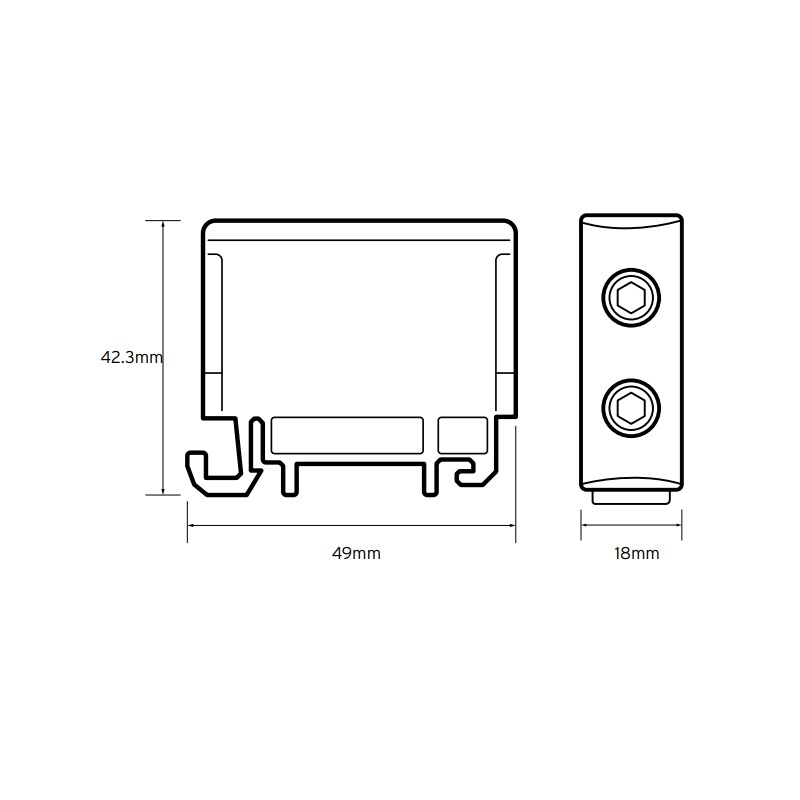

Width: 18mm
Height: 49mm
Depth: 42.3mm
Construction material: PA66 UL94-V-0
Terminal construction: Brass; Zn plated
Terminal capacity: 2.5mm²- 50mm²
Operating Temperature: ≤ 80°C
Connection type: Hex head screw
Ingress protection: IP20
Weight: 120g
