Niglon 125A SP Power Distribution Block Blue – DIN-PB125B1
Part No Description
DIN-PB125B1 125A SP Power Distribution Block Blue
Din rail mounting single pole terminal block for connection of power contacts. Modular design means that individual units can be stacked along the rail.
Technical Specifications
Standard: EN60947-7-1
Number of poles: 1
Colour: Blue
Rated current: 125A
Rated voltage Ui: 800V

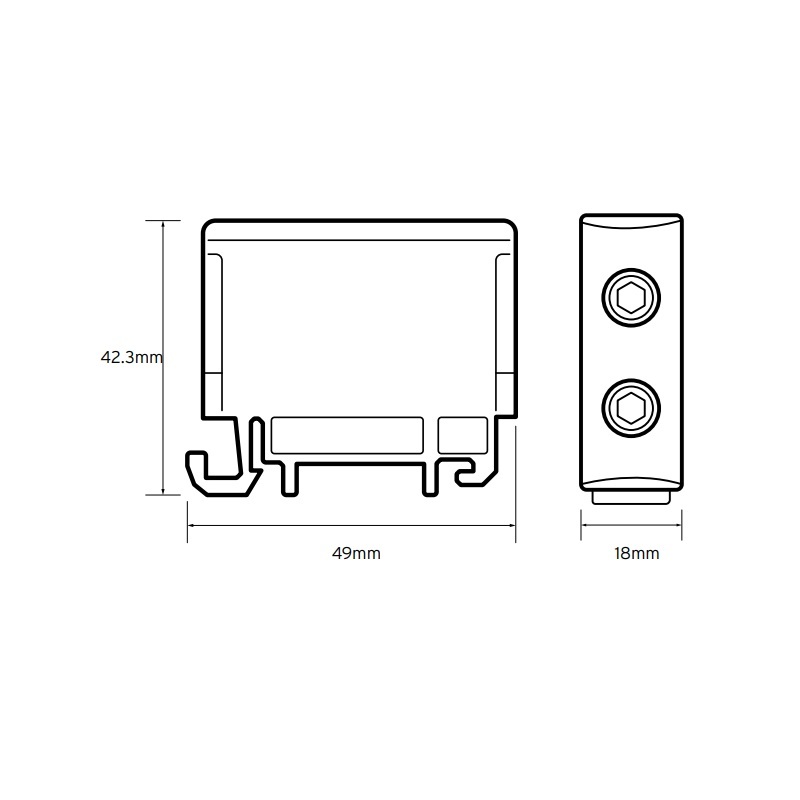

Width: 18mm
Height: 49mm
Depth: 42.3mm
Construction material: PA66 UL94-V-0
Terminal construction: Brass; Zn plated
Terminal capacity: 2.5mm²- 50mm²
Operating Temperature: ≤ 80°C
Connection type: Hex head screw
Ingress protection: IP20
Weight: 120g
