Luxlite 600×600 Selectable Wattage & CCT Backlit LED Panel TP(a) – LUX-BL2840W664-CCT
Part No Description
LUX-BL2840W664-CCT 600×600 Selectable Wattage & CCT Backlit LED Panel TP(a)
The Luxlite LUX-BL2840W664-CCT 600×600 Backlit LED Panel is a high-performance, energy-efficient lighting solution designed for offices, schools, healthcare facilities, retail premises and other commercial environments.
Featuring both selectable wattage and selectable colour temperature, this versatile LED panel allows the light output and colour appearance to be configured to suit the installation. Choose between 28W, 32W, 36W or 40W, along with 3000K Warm White, 4000K Cool White or 6500K Daylight.
This flexibility makes the panel particularly useful for contractors and installers, allowing one product to cover a wide range of applications while helping to reduce the number of different panel variants that need to be stocked.
High-Efficiency Backlit Design
The backlit construction provides consistent and uniform illumination across the panel while delivering an efficacy of up to 100 lumens per watt.
Manufactured using Epistar SMD2835 LED chips and a robust aluminium, iron and PS construction, the panel combines excellent lighting performance with long-term reliability.
With a CRI greater than 80 and power factor above 0.9, the LUX-BL2840W664-CCT provides dependable illumination for professional and commercial environments.
Designed for standard 600x600mm suspended ceiling grid systems, the panel measures 595 x 595 x 27mm, providing a neat and professional recessed installation.
The panel also features a TP(a) rated diffuser, an operating lifespan exceeding 50,000 hours, and is supplied with a comprehensive 5-year warranty.
Key Features
- Selectable wattage – 28W / 32W / 36W / 40W
- Selectable colour temperature – 3000K / 4000K / 6500K
- 600x600mm backlit LED panel
- Up to 100 lm/W luminous efficacy
- Uniform and consistent light distribution
- CRI >80
- Power factor >0.9
- Epistar SMD2835 LED technology
- TP(a) rated diffuser
- Suitable for standard suspended ceiling grids
- Slim 27mm profile
- Long-life LED technology – over 50,000 hours
- Operating temperature from -20°C to +50°C
- 5-year warranty
Technical Specification
Manufacturer: Luxlite
Model: LUX-BL2840W664-CCT
Product Type: Backlit LED Panel Light
Wattage: 28W / 32W / 36W / 40W Selectable
Supply Voltage: 220-240V AC, 50Hz
Luminous Efficacy: 100 lm/W

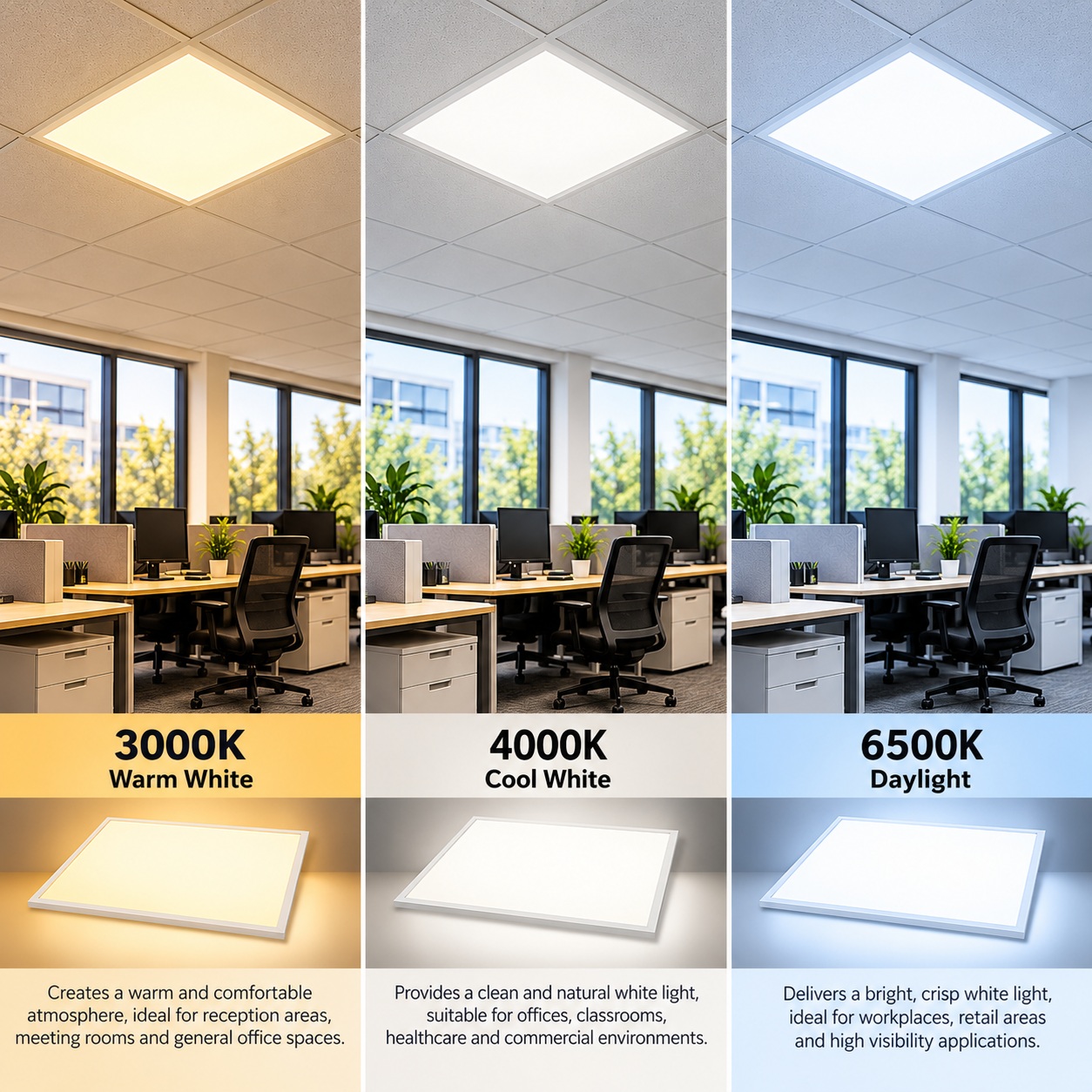

Colour Temperature: 3000K / 4000K / 6500K Selectable
LED Type: Epistar SMD2835
CRI: >80
Power Factor: >0.9
Diffuser Rating: TP(a)
Working Temperature: -20°C to +50°C
Dimensions: 595 x 595 x 27mm
Construction: Aluminium + Iron + PS
Rated Lifespan: >50,000 Hours
Warranty: 5 Years
Typical Applications
The Luxlite LUX-BL2840W664-CCT is ideal for use in:
- Offices and commercial premises
- Schools and classrooms
- Colleges and educational buildings
- Healthcare and medical facilities
- Retail shops and showrooms
- Meeting and conference rooms
- Corridors and communal areas
- Commercial buildings with 600×600 suspended ceilings
Why Choose the Luxlite LUX-BL2840W664-CCT?
Combining four selectable wattages and three selectable colour temperatures in one fitting, the Luxlite LUX-BL2840W664-CCT provides an exceptionally flexible solution for commercial lighting installations.
Its adjustable design enables contractors to select the required output and colour temperature on site, helping simplify product selection and reduce stockholding requirements.
With efficient 100 lm/W performance, a TP(a) rated diffuser, long 50,000+ hour lifespan and 5-year warranty, this 600×600 LED panel provides a practical and dependable solution for both new installations and commercial lighting upgrades.
