Live Electrical Fused Mains Switch Metal Enclosure 4 Pole 125A M/S c/w 3 x 100A Fuses – LSFS125+F
Part No Description
LSFS125+F Fused Mains Switch Metal Enclosure 4 Pole 125A M/S c/w 3 x 100A Fuses
Design Features
Ideal for the protection & isolation of incoming supplies
3-Phase Metal Switch Fuse Box
BS EN61439-3 compliant
Fitted with 1 x 4 Pole 125A Main Switch
Fitted with 3 x Fuse Holder 125A

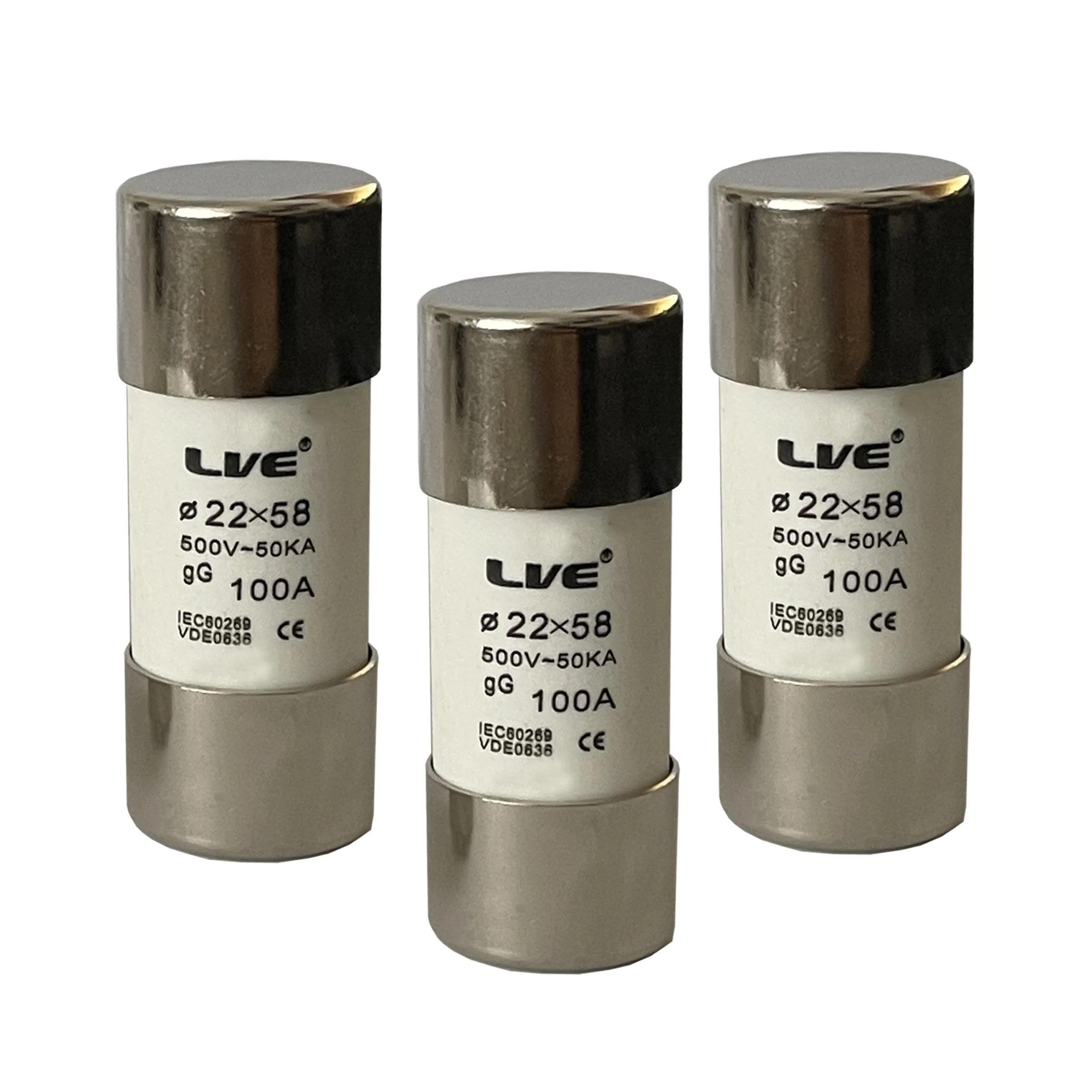

Fitted with 3 x 100A Fuses
Multiple circular cable entry knock-outs (25 & 32mm) on the top and bottom, 32mm the sides
Surface mounted
Max cable capacity: 50mm²
IP40
3-Phase Metal Switch Fuse Box
BS EN61439-3 compliant
Fitted with 1 x 4 Pole 125A Main Switch
Fitted with 3 x Fuse Holder 125A
Fitted with 3 x 100A Fuses
Multiple circular cable entry knock-outs (25 & 32mm) on the top and bottom, 32mm the sides
Surface mounted
Max cable capacity: 50mm²
IP40
Applications
Residential: Perfect for large homes that require reliable three-phase power control and protection.
Commercial: Suitable for office buildings, retail spaces, and other commercial properties where dependable power management is essential.
Industrial: Ideal for industrial facilities needing robust and consistent power protection, ensuring continuous operation.
Dimensions
(WxHxD mm): 244 x 270 x 110
