Live Electrical 3 Pole C Curve 10kA Miniature Circuit Breakers
Technical Data
- Rated current In (A): 6, 10 16, 20, 25, 32, 40, 50, 63
- Poles: 1P,3P
- Rated voltage Ue(AC): 230/400V
- Rated frequency: 50/60Hz
- Insulated voltage Ui: 500V
- Rated breaking capacity (A): 6/10kA
- Rated impulse withstand voltage (1.2/50) Uimp (V): 4000
- Dielectric test voltage at inf. Frq for 1 min (KV): 2
- Thermo-magnetic release characteristic: B, C, D
- Electrical life: 20,000
- Contact position degree: IP20
- Reference temperature for setting of thermal element (°C): 30
- Ambient temperature (with daily average 35°C: -5 ~ +40
- Storage temperature (°C): -25 ~ +70
| CB306C | 3 Pole 6A C Curve 10kA MCB |

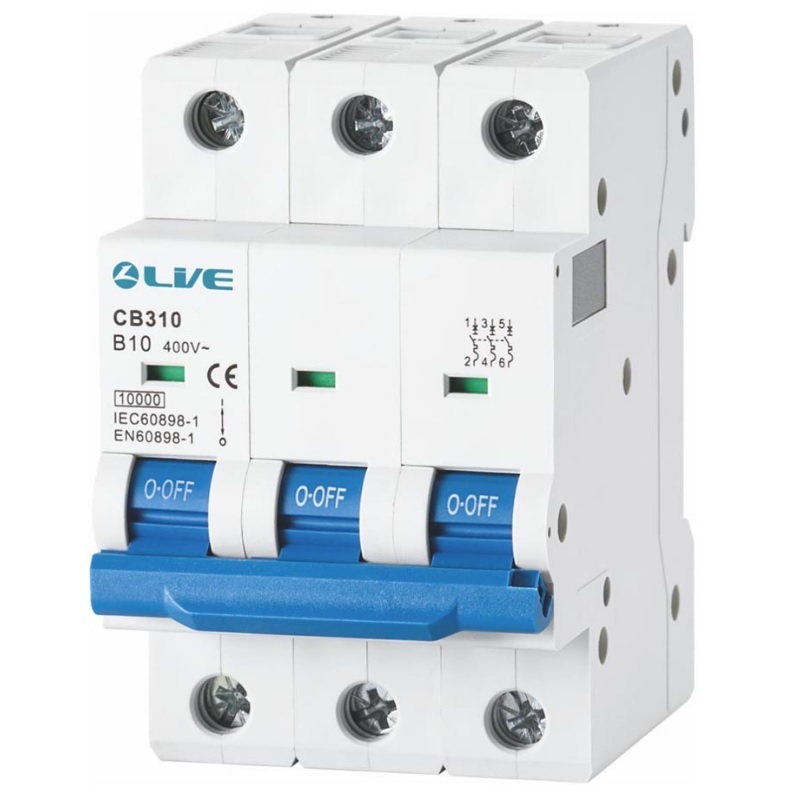

| CB310C | 3 Pole 10A C Curve 10kA MCB |
| CB316C | 3 Pole 16A C Curve 10kA MCB |
| CB320C | 3 Pole 20A C Curve 10kA MCB |
| CB332C | 3 Pole 32A C Curve 10kA MCB |
| CB340C | 3 Pole 40A C Curve 10kA MCB |
| CB350C | 3 Pole 50A C Curve 10kA MCB |
| CB363C | 3 Pole 63A C Curve 10kA MCB |
