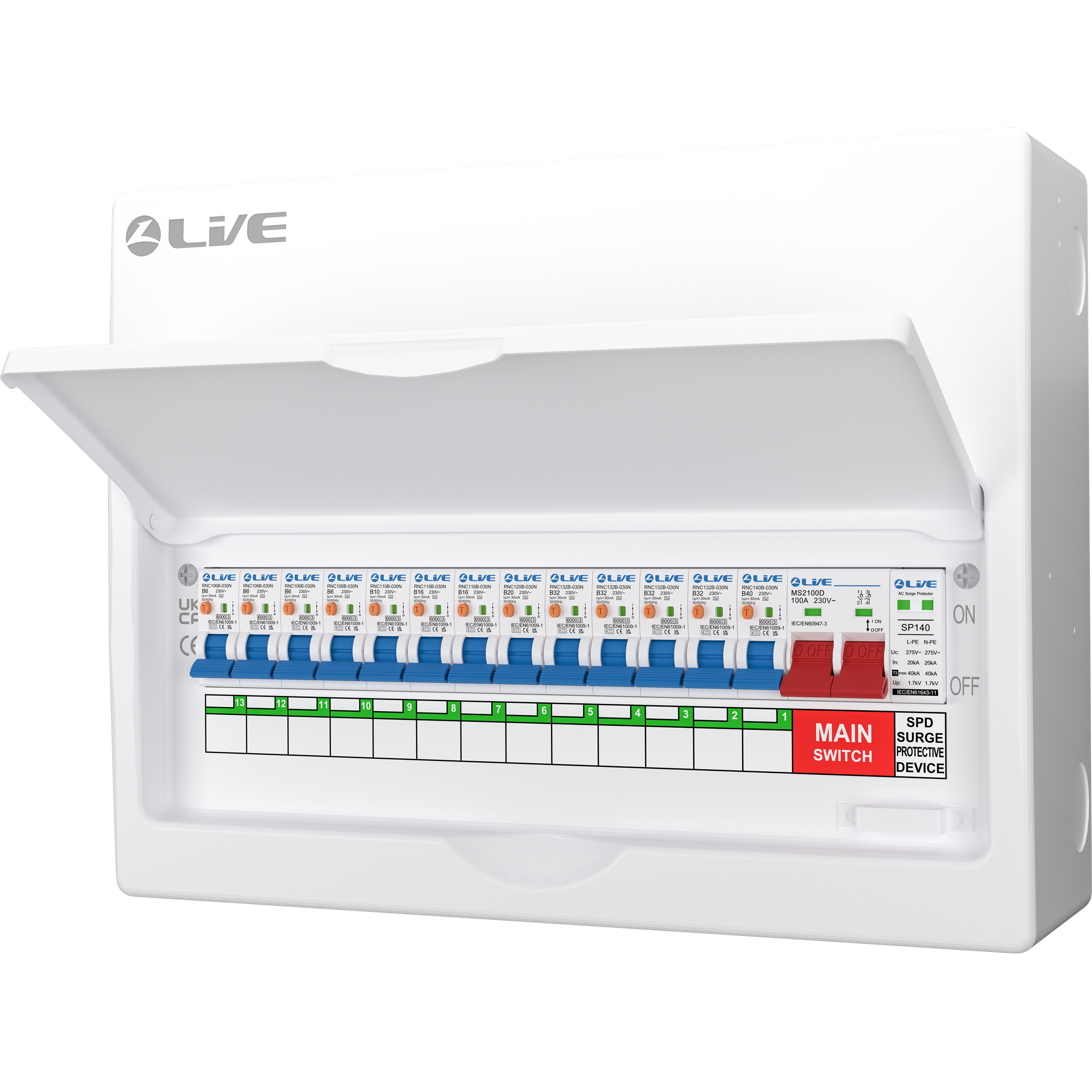

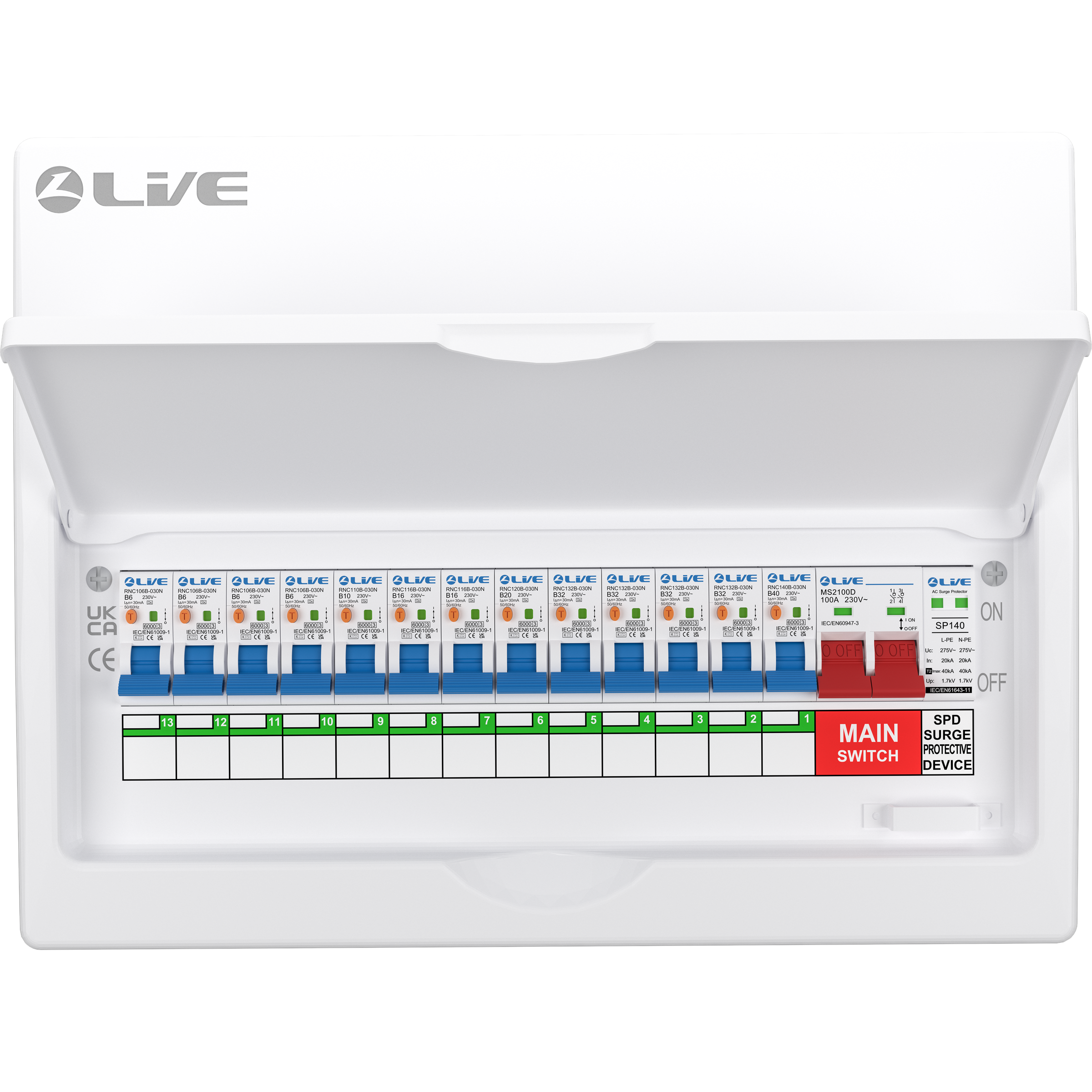

Live Electrical 16 Way Metal Clad Consumer Unit c/w 100A Main Switch / 20/40kA SPD + 13 RNCs RCBOs (4x6A, 1x10A, 2x16A, 1x20A, 4x32A, 1x40A) – LSMC16SRN/100
Part No Description
LSMC16SRN/100 16 Way Metal Clad Consumer Unit c/w 100A Main Switch / 20/40kA SPD + 13 RNCs RCBOs (4x6A, 1x10A, 2x16A, 1x20A, 4x32A, 1x40A)
Consumer unit enclosures supplied Neutral Cable, Busbar, Neutral & Earth Terminal bar, Din Rail, Tail Gland
Fitted with DP 100A Main Switch / 20/40kA SPD + 13 RNCs RCBOs (4x6A, 1x10A, 2x16A, 1x20A, 4x32A, 1x40A)
Fitted with DP 100A Main Switch / 20/40kA SPD + 13 RNCs RCBOs (4x6A, 1x10A, 2x16A, 1x20A, 4x32A, 1x40A)
- Fitted with DP 100A Main Switch
- Fitted with 4x6A, 1x10A, 2x16A, 1x20A, 4x32A, 1x40A RNCs RCBOs
- Fitted with 20/40kA Surge Protection Device (SP140 1P+N/1)
- Fully enclosed metal construction body with drop down metal lid.
- Multiple circular cable entry knock-outs (25 & 32mm) on the top and bottom, 32mm on the sides, and back plus larger rear slots.
- Raised key holes for secure easy installation.
- Raised Din rail improves cable routing.
- Modern style finished in white polyester powder coating to RAL9010.
- Large and accessible wiring space, with extra space for RCBOs, MCBs.
- Flexible connection allows for various configurations of protected ways.
- Lockable lids.
- IP40.
- BSEN1439-3.
Dimensions
16 Way – W 352 x H 270 x D 110mm
