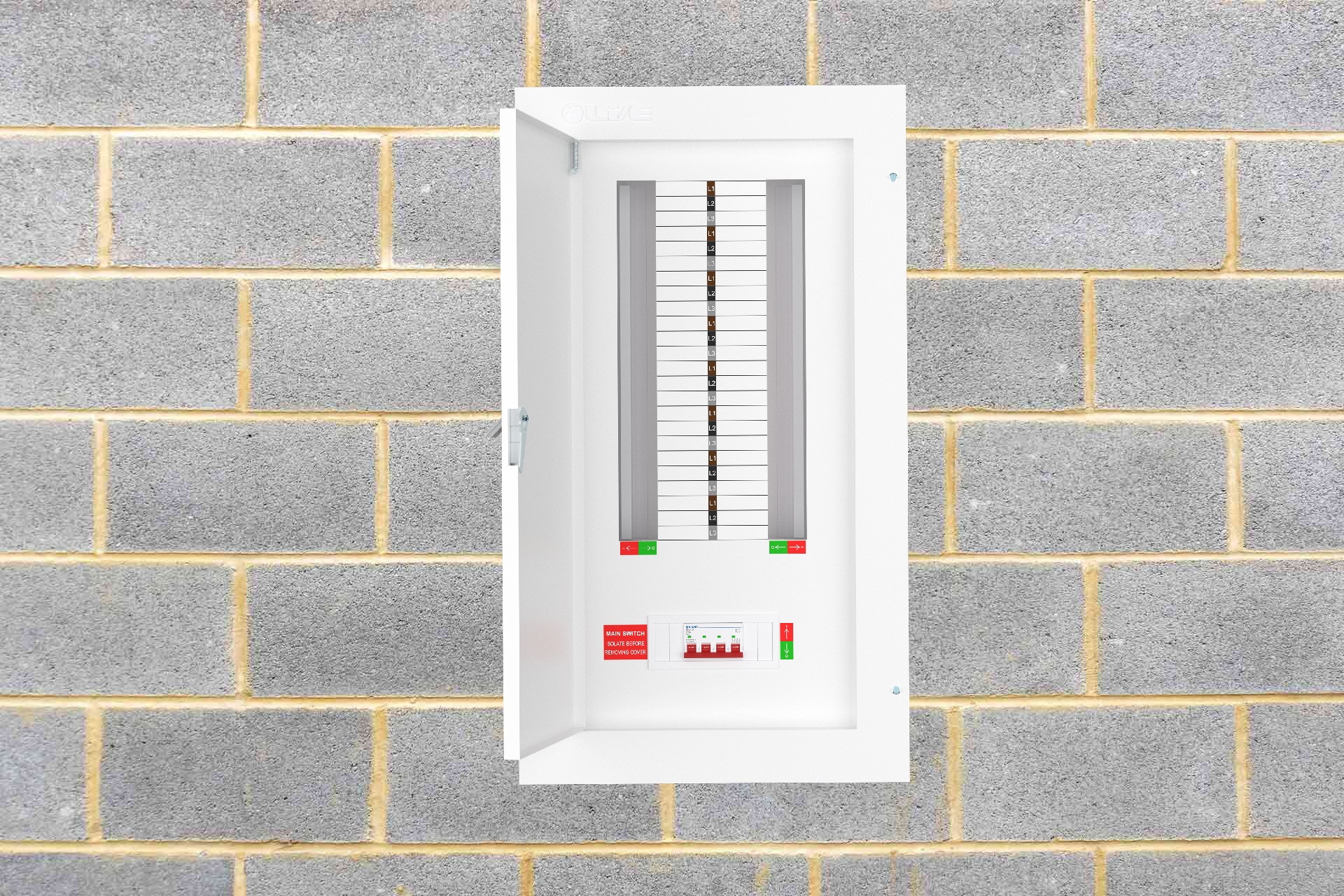

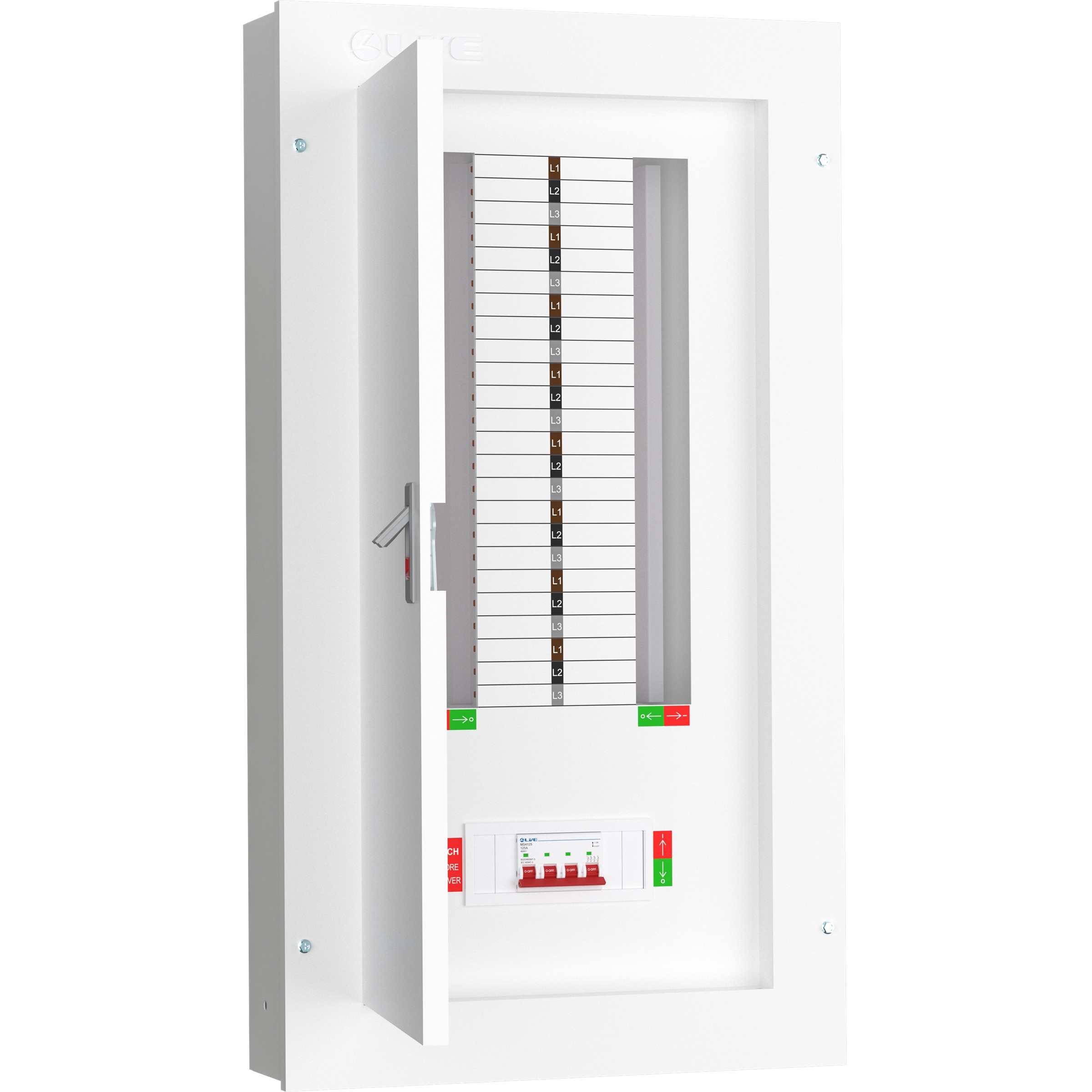

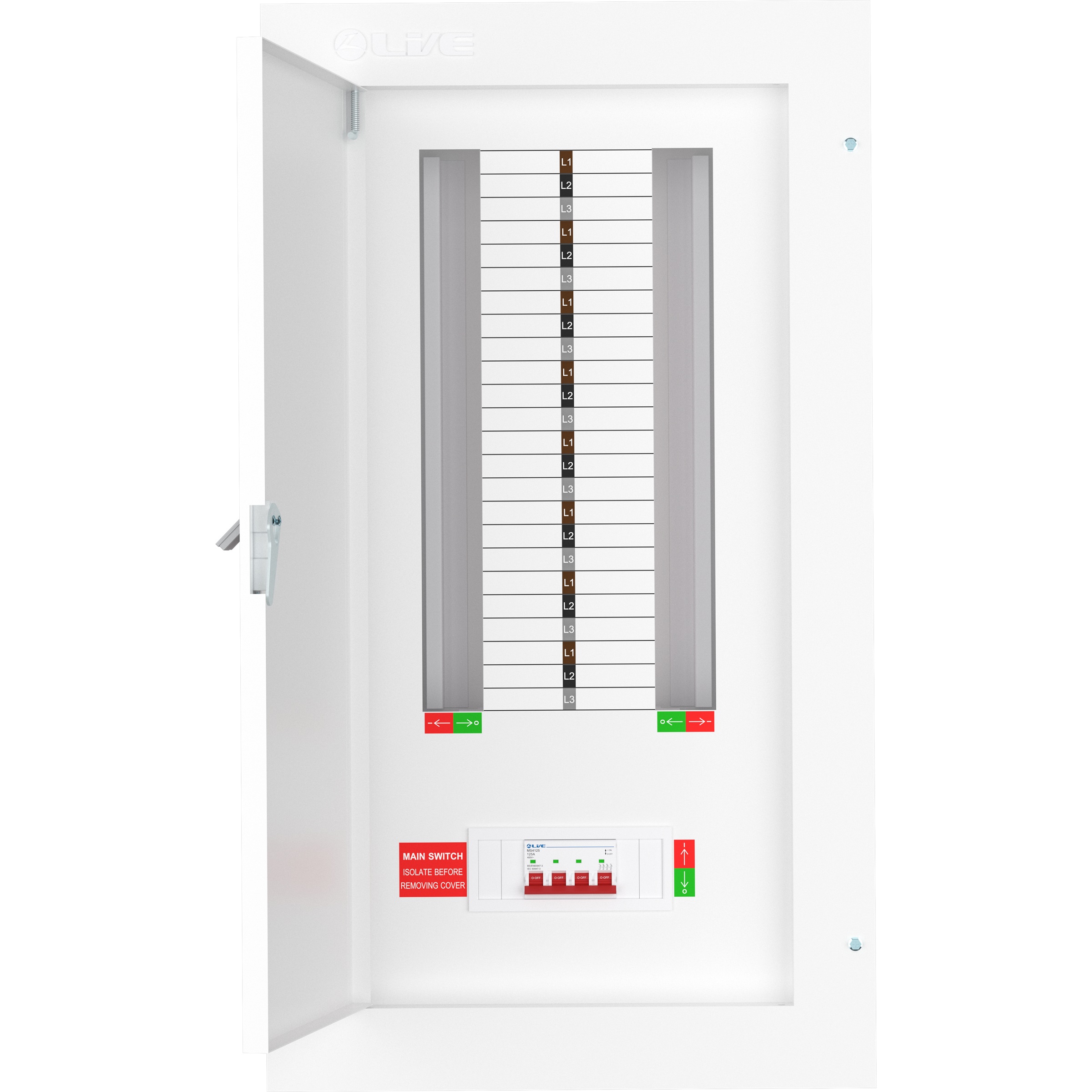

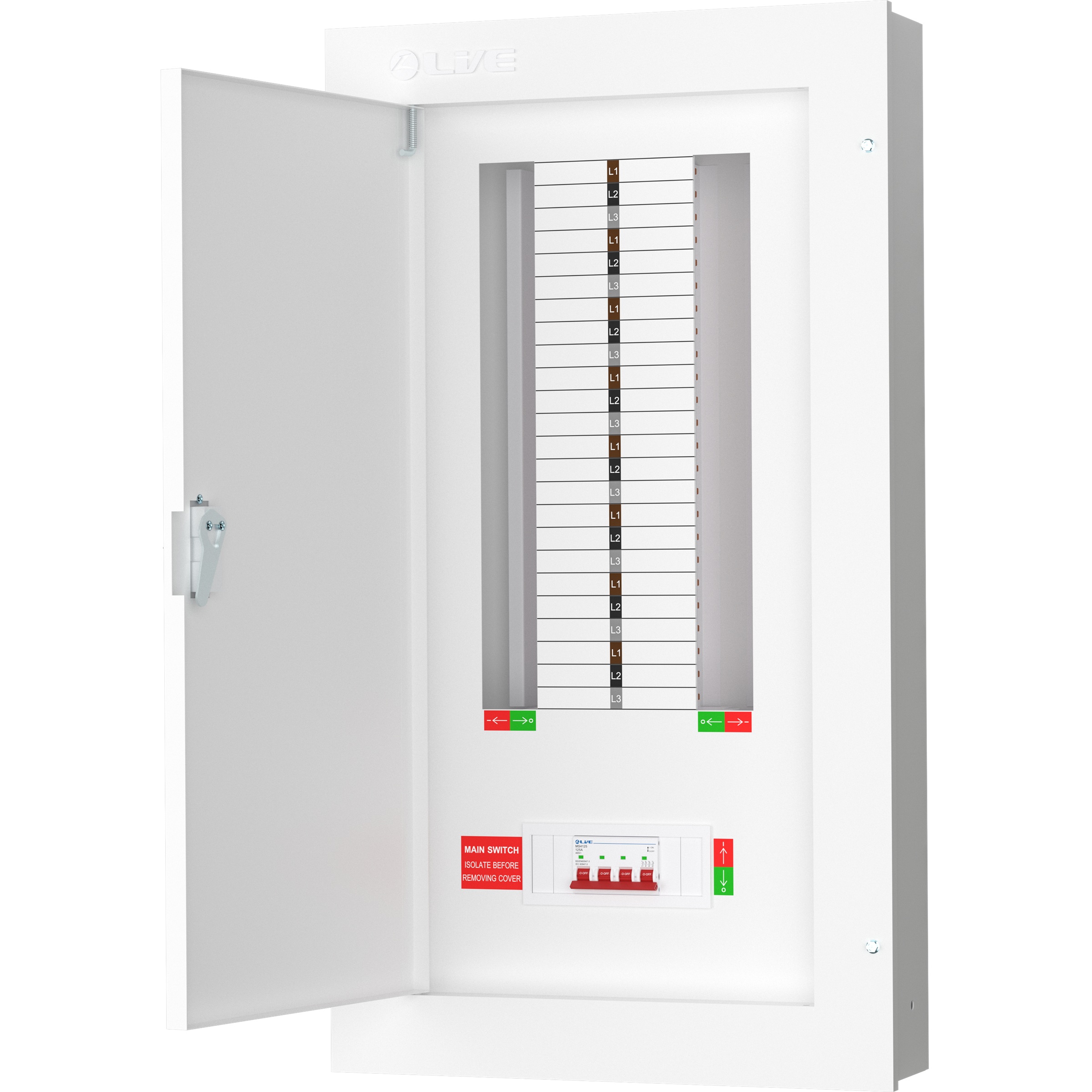

Live Electrical 16 Way 3 Phase Distribution Board with 4 Pole 125A Main Switch Incomer – TPN16-125
Part No Description
TPN16-125 16 Way 3 Phase Distribution Board with 4 Pole 125A Main Switch Incomer
- Modern style finished in epoxy powder paint to RAL7035
- Rated Voltage AC 380V/415V 50/60Hz
- Maximum loading current to 125A
- Section Neutral & Earth terminal are fitted both sides
- Quicker installation with earth & neutral terminals adjacent to the MCB’s / RCD’s
- Fully enclosed busbar system
- Complete shrouding for main incomer and link
- Removable gland plate for ease of cable entry
- Keyhole fixing for ease of wall mounting
- All versions supplied with Mains Switch
- Complies with BS EN 61439-3
Dimensions (WxHxD): 465 x 830 x 105mm
Please see link for suitable 1 Pole B Curve MCB’s
Please see link for suitable 1 Pole C Curve MCB’s
Please see link for suitable 1 Pole D Curve MCB’s
Please see link for suitable 1 Pole RCBO’s
Please see link for suitable 3 Pole RCBO’s
