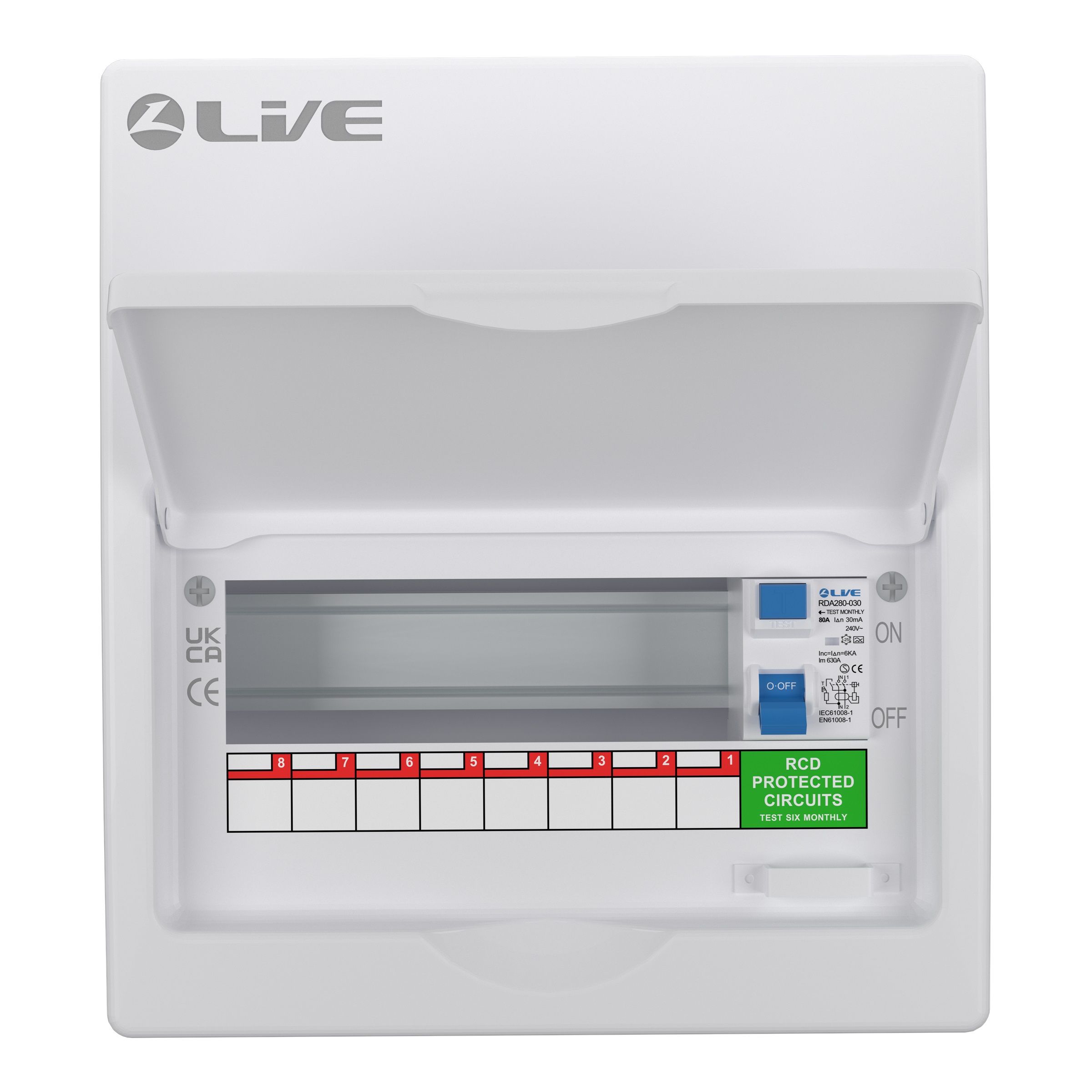

Live Electrical 10 Way Metal Clad Consumer Unit c/w 80A 30mA RCD (8 Usable Ways) – LSMC10-RC80
Part No Description
LSMC10-RC80 10 Way Metal Clad Consumer Unit c/w 80A 30mA RCD (8 Usable Ways)
Consumer unit enclosures supplied with blank, Neutral Cable, Busbar, Neutral & Earth Terminal bar, Din Rail
Fitted with Type A DP RCD
Fitted with Type A DP RCD
- Fully enclosed metal construction body with drop down metal lid.
- Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 32mm on the sides, and back plus larger rear slots.
- Raised key holes for secure easy installation.
- Raised Din rail improves cable routing.
- Modern style finished in white polyester powder coating to RAL9010.
- Large and accessible wiring space, with extra space for RCBOs, MCBs.
- Flexible connection allows for various configurations of protected ways.
- Lockable lids.
Dimensions
10 Way – W 244 x H 270 x D 110mm
