Live Electrical 10 Module Metal PV AC Consumer Unit c/w DP 100A Main Switch, 20A Type A RCBO B Curve, 32A AC Isolator & T2 20/40kA SPD – LSMC1032-R20

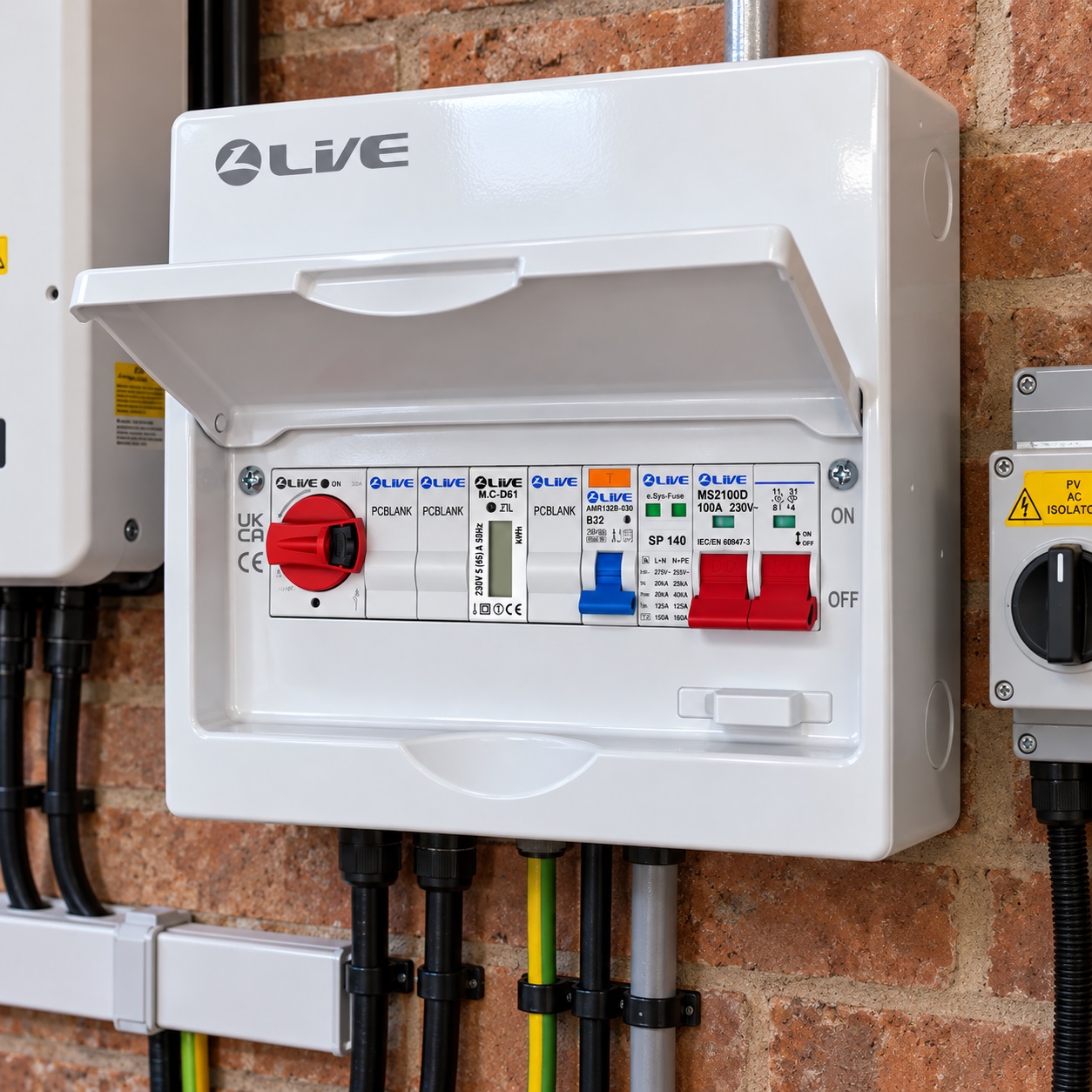

The LIVE Electrical LSMC1032-R20 is a 10-module metal PV AC consumer unit designed for safe and reliable electrical distribution in photovoltaic installations. Supplied pre-configured with essential protection, isolation and metering components, it provides a convenient all-in-one solution for solar PV AC applications.

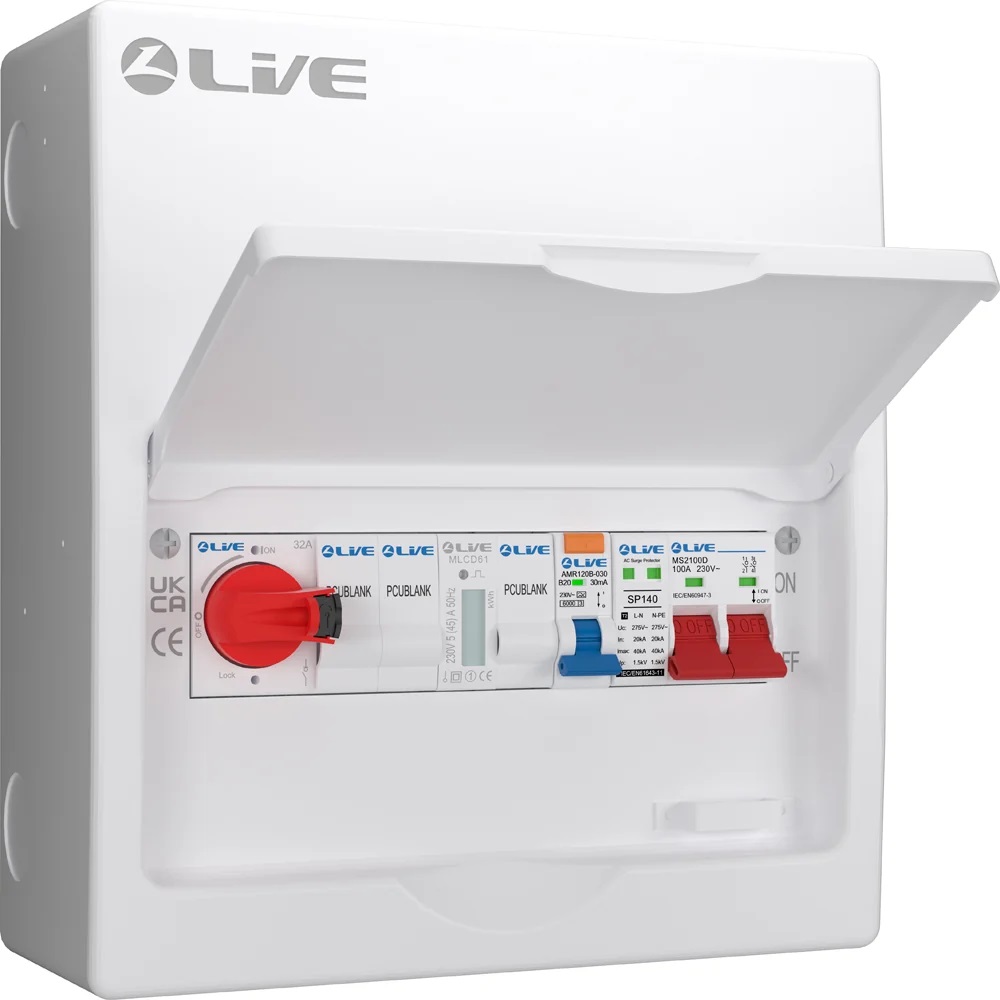

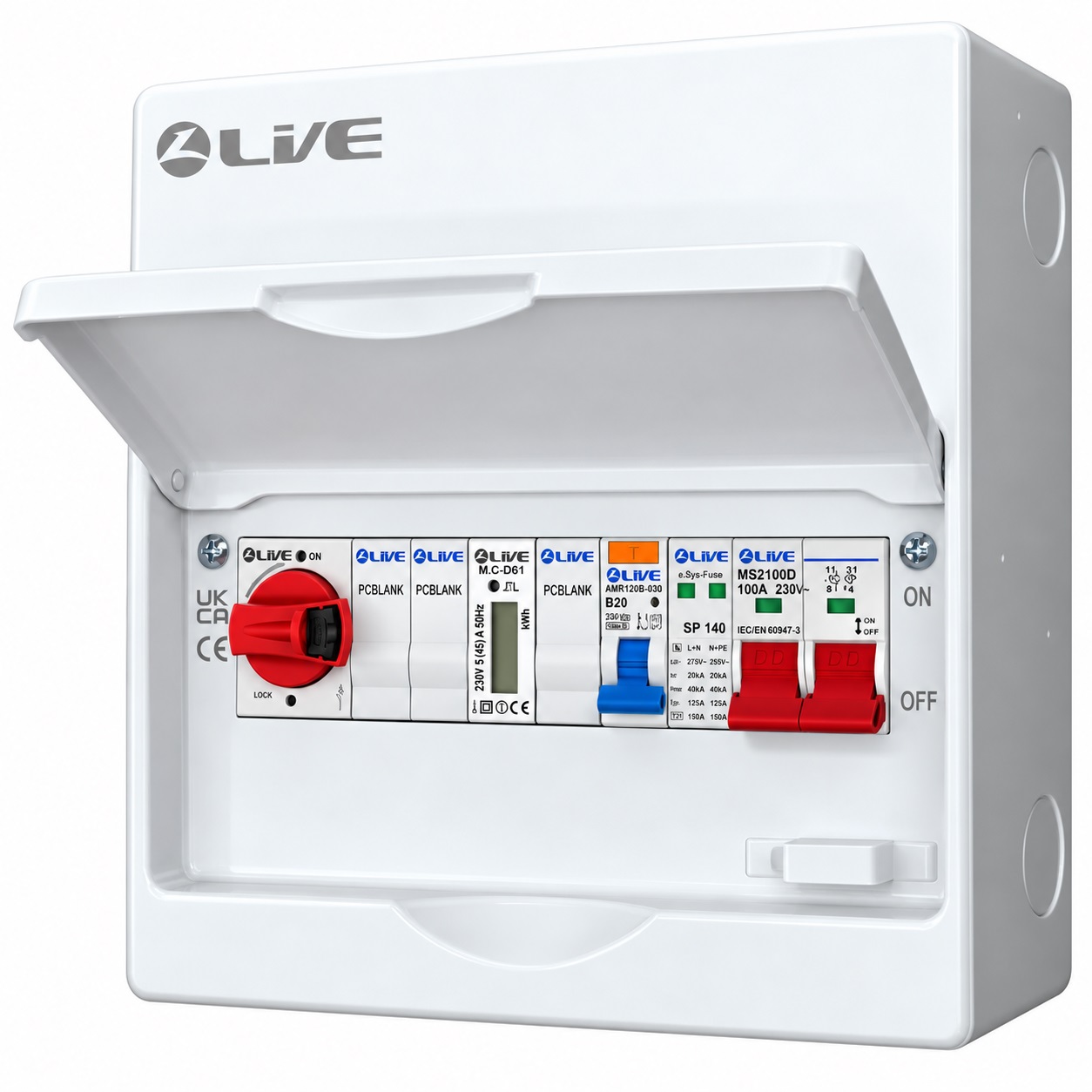

The unit is fitted with a 100A double-pole main switch, 20A B Curve Type A 6kA RCBO, 32A AC isolation switch, single-phase energy meter and a 20/40kA Type 2 surge protection device. Its robust steel enclosure features a raised DIN rail for improved cable routing, multiple cable entry knockouts and a durable RAL9010 white polyester powder-coated finish.

Key Features

• 10-module metal PV AC consumer unit.
• Fitted with 100A double-pole main switch.
• 20A B Curve Type A 6kA RCBO (AMR132B-030).
• 32A AC isolation switch.
• Single-phase energy meter (MLCD61).
• 20/40kA Type 2 surge protection device (SP140 1P+N/1).

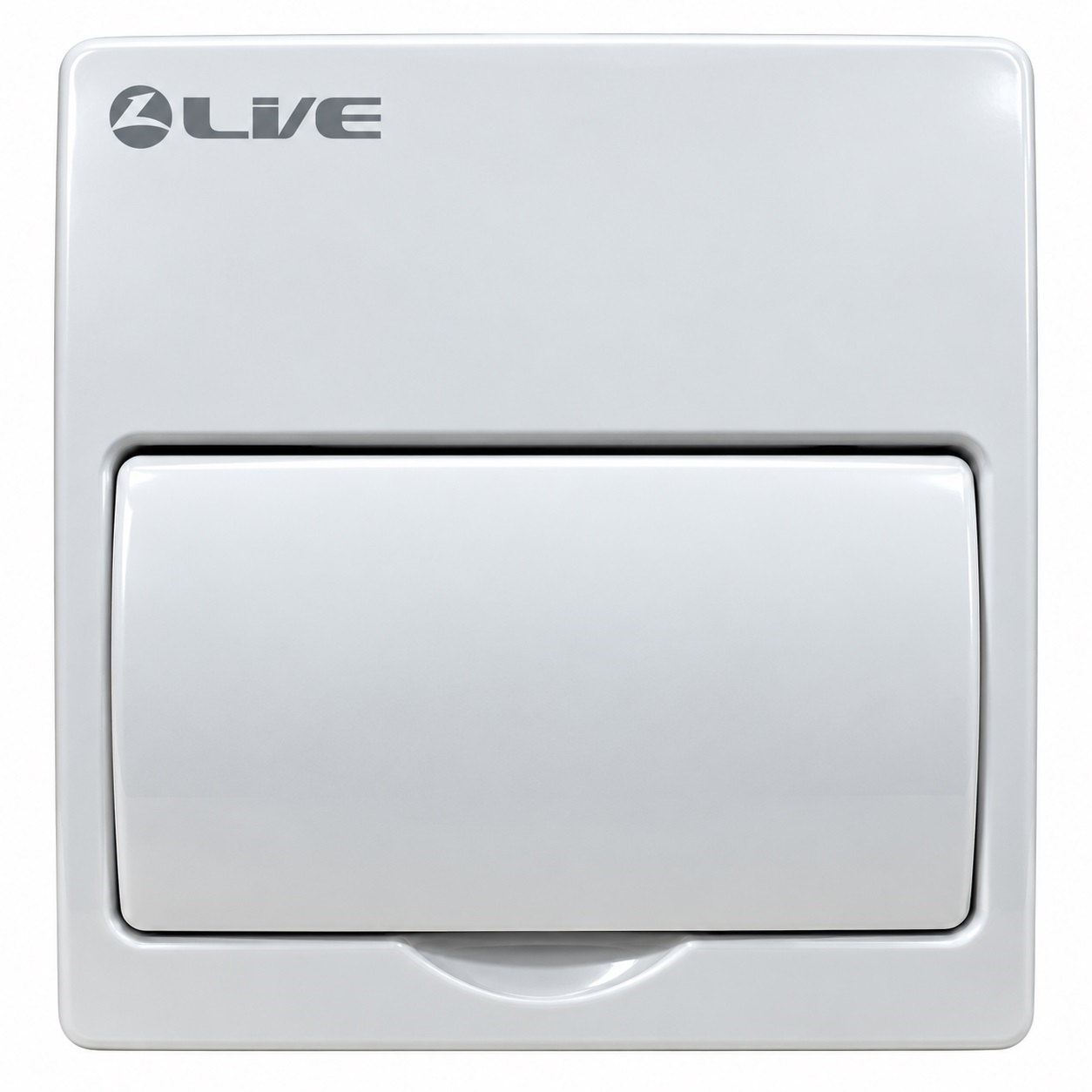

• Robust, fully enclosed steel construction with drop-down metal lid.
• IP40 rated enclosure.
• Raised DIN rail helps improve internal cable routing.
• Flexible internal connections allow various protected-way configurations.
• Multiple cable entry knockouts provide flexible installation options.
• Finished in white polyester powder coating to RAL9010.
• Supplied with neutral cable, busbar, neutral and earth terminals, DIN rail and cable gland.

Specification

• Brand: LIVE Electrical
• Part Number: LSMC1032-R20
• Number of Modules: 10
• Operating Voltage: 230V AC
• Main Switch: 100A Double Pole
• RCBO: 20A Type A, B Curve, 6kA
• RCBO Reference: AMR120B-030
• AC Isolator: 32A
• Surge Protection: Type 2, 20/40kA
• SPD Reference: SP140 1P+N/1
• Energy Meter: Single Phase (MLCD61)
• Ingress Protection: IP40
• Maximum Load: As indicated on the incoming device
• Enclosure Material: Steel
• Finish: White Polyester Powder Coated
• Colour: RAL9010 White

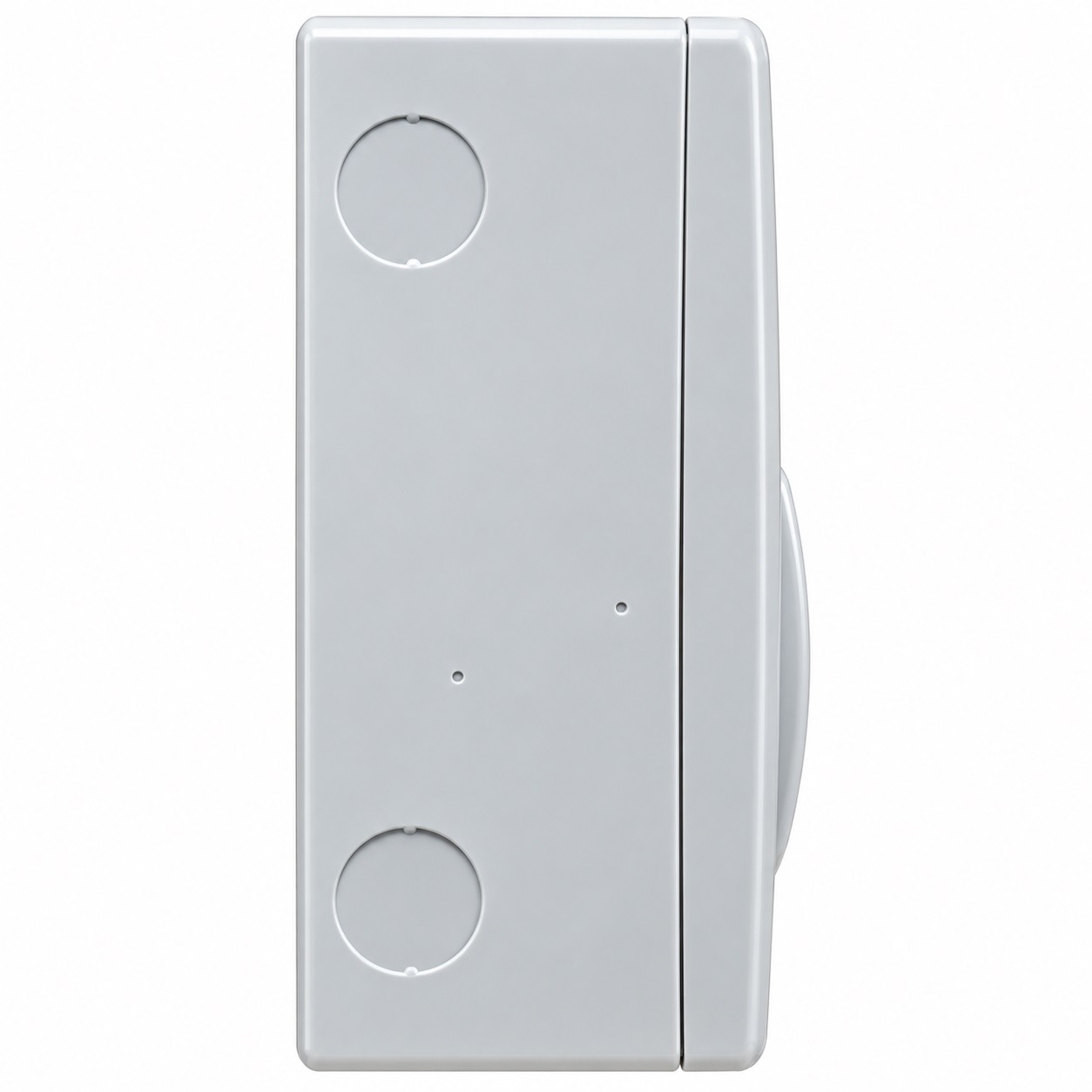

• Cable Entries: 25mm and 32mm top and bottom knockouts, 32mm side and rear entries, plus larger rear slots
