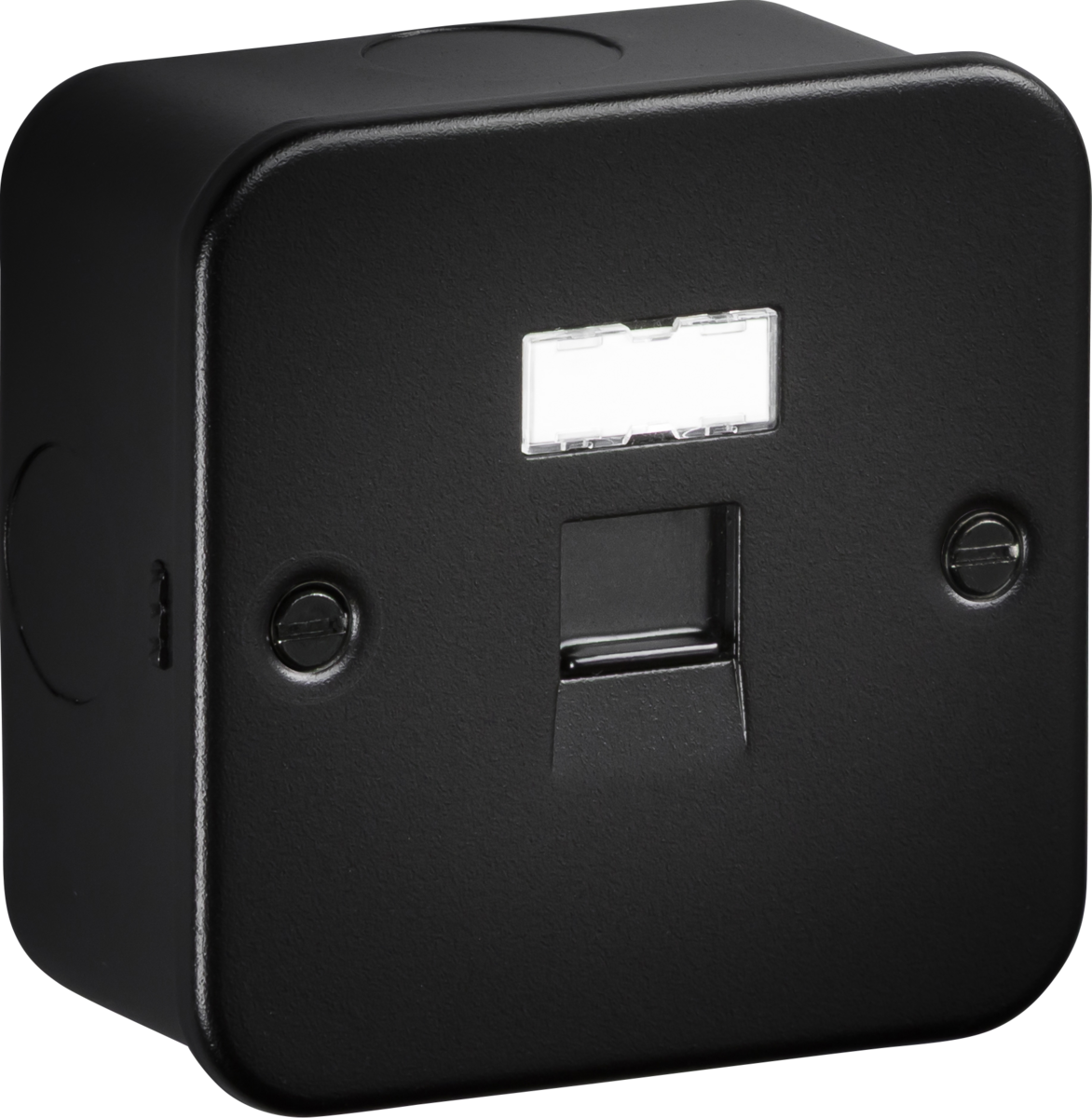

Knightsbridge Metalclad UTP CAT6a RJ45 Network Outlet Textured Sand Black Finish – MC6TB
Part No Description
MC6TB Metalclad UTP CAT6a RJ45 Network Outlet Textured Sand Black Finish
Summary
Heavy Duty Metal Clad construction, with textured durable matt Black finish.
Features
- Single shuttered CAT6A Unshielded RJ45 Outlet
- Conforming to ANSI/TIA/EIA 568B. 2-10
- Insulation Resistance: less than 500 milli-ohm at 100V DC
- Withstand Voltage: 1000V DC, 700V AC RMS 60Hz 1 min
- Operating Temperature: -10°C to 60°C
- 16-20 AWG wire gauges
Benefits
- Increased bandwidth – Capable of supporting data transfer rates of up to 10Gbps over 100m at a maximum bandwidth of
- 500Mhz (CAT6 can only support 30-50m or 1Gbps at 100m at max. 250Mhz)
- Backwards compatible with both CAT6 and CAT5e – however its important to note that speed will be affected
- Reduced crosstalk
- Beyond the standard uses it also provides enhanced PoE (Power over Ethernet) capabilities that make it ideal for smart home functions such as smart security cameras in locations where standard power outlets aren’t available.
- For best results must be used with certified CAT6A cabling.
Key Specifications
Construction: SPCC Steel
Class: I
IP Rating: IP20
Primary Voltage: 230V 50Hz
Wiring Accessories
Earth Terminal: Yes
Warranty
Warranty: 25 Years

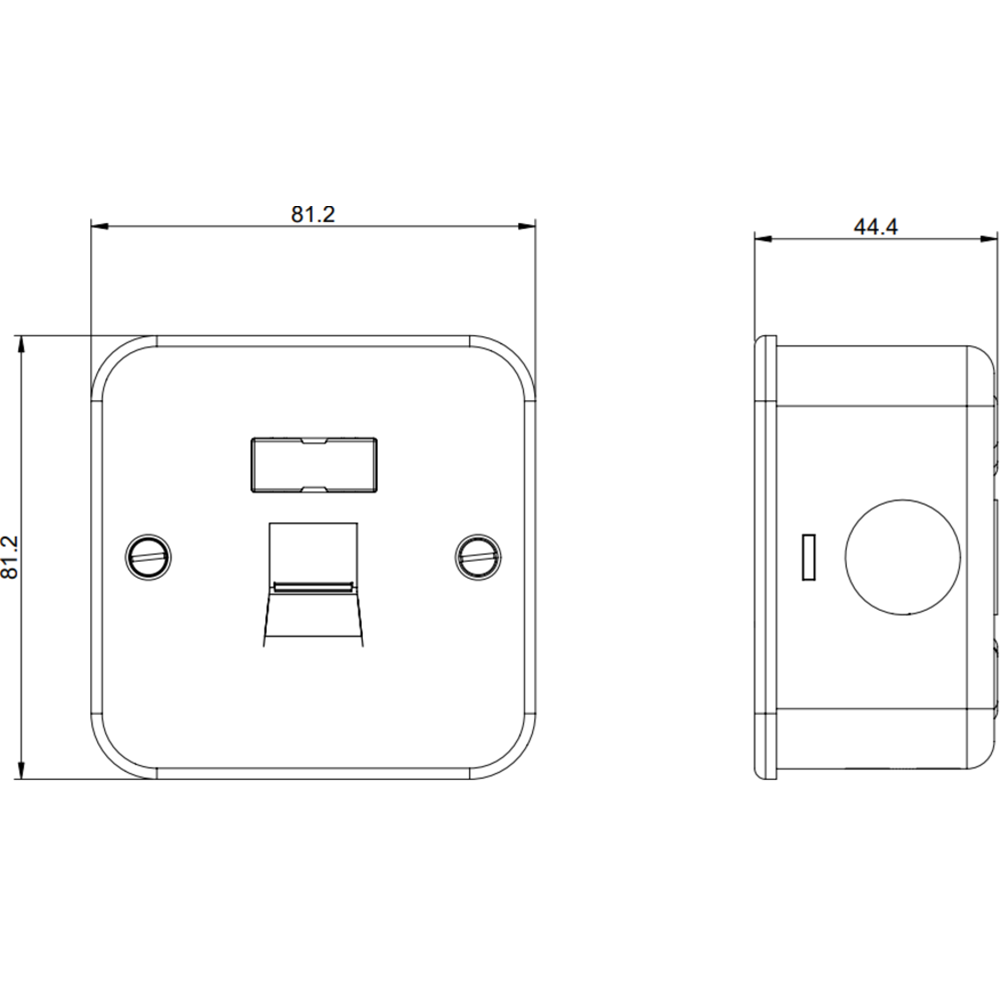

Dimensions
Height: 81.2mm
Width: 81.2mm
Projection: 44.4mm
