Knightsbridge HELIX ONE 4FT 230V IP66 IK10 22W Modular Non-Corrosive Fitting 4000K – HEX4
Part No Description
HEX4 HELIX ONE 4FT 230V IP66 IK10 22W Modular Non-Corrosive Fitting 4000K
Summary
HELIX Modular Non-Corrosive, modular design with Plug and Play Emergency and Sensor modules;
- Optional modular microwave sensor, MODMWS
- Optional modular dual mode emergency conversion kit, MODEMKIT2
Built for performance, designed for flexibility. Delivers high performance lighting for commercial and industrial applications, both indoor and out. Versatile fitting, with enhanced features;
- Rear, side and end conduit entries
- New body design compatible with BESA box mounting
- Pre-drilled rear and end conduit entries with unique replaceable end caps
- Large bracket fixing point to ease mounting process
- Detachable terminal blocks to ease cable entry points
- Plug and Play Emergency and Sensor modules
Constructed from robust, anti-corrosive polycarbonate material and stainless steel clips as standard, these fittings offer maximum performance with minimal maintenance.
- IP66 and IK10 rating
- High efficiency
- Push-fit loop in-loop out terminal block
- Supplied with surface mount plates as standard. Suspension kit available (sold separately)
Energy Rating
- C

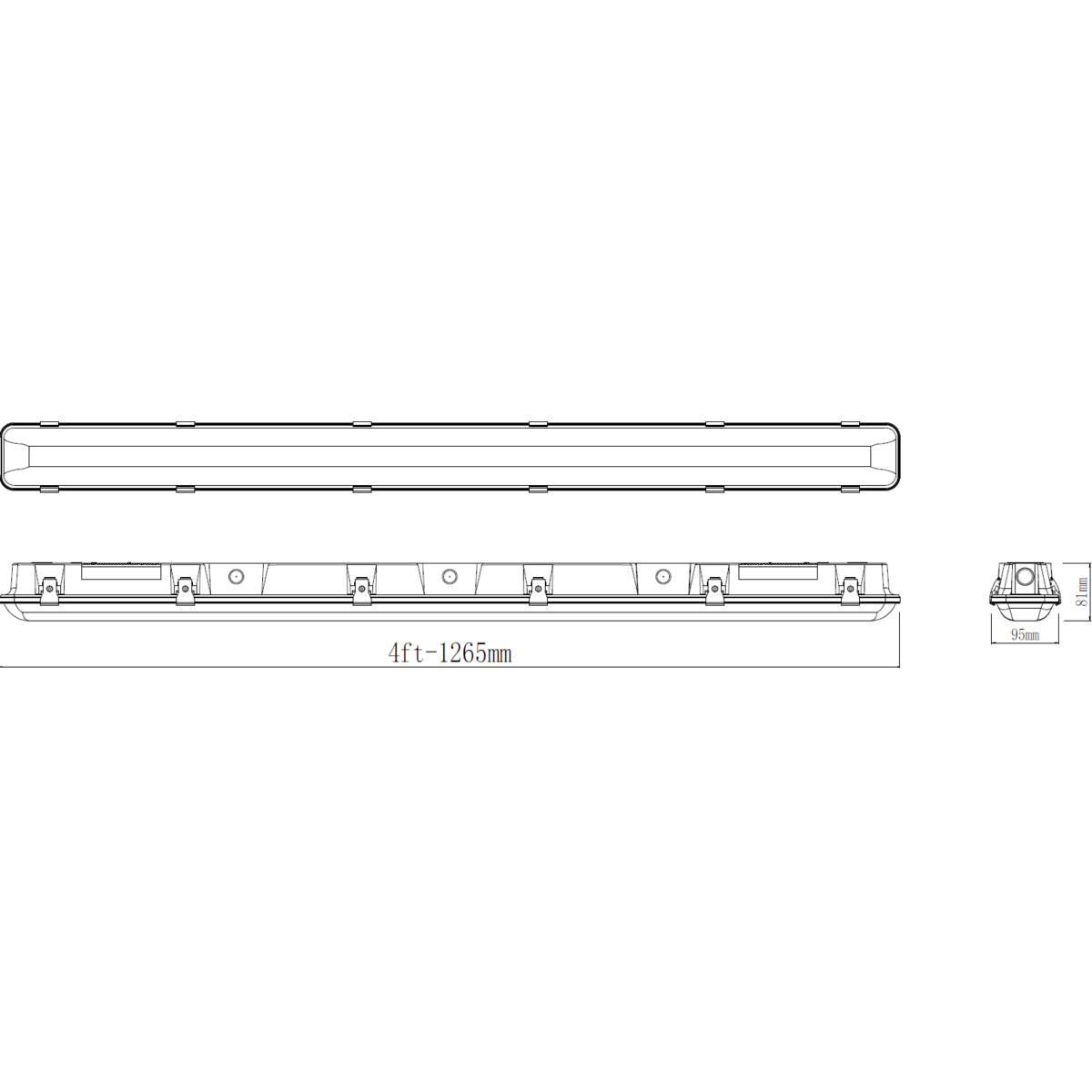

Dimensions
Length: 1265mm
Height: 81mm
Width: 95mm
Projection: 81mm
Key Specifications
Construction: Polycarbonate
Finish: Grey
Class: I
IP Rating: IP65
Primary Voltage: 230V 50Hz
Luminaire
Diffuser: Opal
Lamp
Light Technology: LED
Dimmable: No
Wattage (kWh/1000h): 22 W
Energy Efficiency Class: C
CCT #1: 4000 K
L70B50: 70,000
Lamp Included: Yes
Beam Angle: 110 °
Photometric
Light Colour: Cool White
Lumens: 3145 lm
Lumens (Light source only): 3730 lm
Efficacy (Light source): 165 lm/W
CRI: >80
Warranty
Warranty: 5 Years
