IMO 24 Module IP65 Distribution Board – E-24W
Part No Description
E-24W 24 Module IP65 Distribution Board

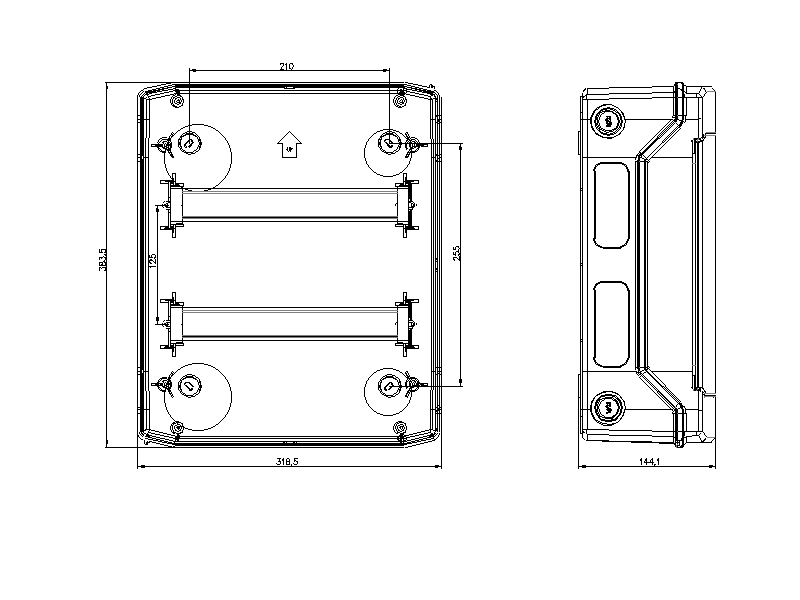

24-Way IP65 Enclosure, 319 x 384 x 144mm
Transparent Door, Suitable for Photovoltaic Applications
Each enclosure comes with a set of accessories:
- Divisible blanking plates included from E-06W upwards
- 4 x wall plugs and screws
- 4 x internal screw caps
- Application identifier stickers
Key Features
- High Thermal Stability – ASA Plastic
- Transparent Polycarbonate Door
- UV Stable / Halogen Free
- Internal Terminal Busbar Current Rating 63A
- Rated Insulation Voltage 1500VDC
- IP65 Rating – Inside / Outside Use
- Earth & Neutral Bars Included
- Suitable for Photovoltaic Applications
- Key Accessory
| Brand | IMO |
| Range | Distribution Boxes |
| Type | Modular/Distribution |
| Material | Acrylonitrile Acrylic Styrene |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Internal Mounting Plate Included | No |
| Main Colour | Grey RAL7035 |
| Door/Lid Type | Transparent Lid, Screw Fixing |
| Gland Plate | No |
| External Height (mm) | 384 |
| External Width (mm) | 319 |
| External Depth (mm) | 144 |
| Lock Type | 1 x Thumb grip wing lock |
| Weight | 1.7 kg |
| EAN | 5056207440809 |
Warranty: 2 Years
