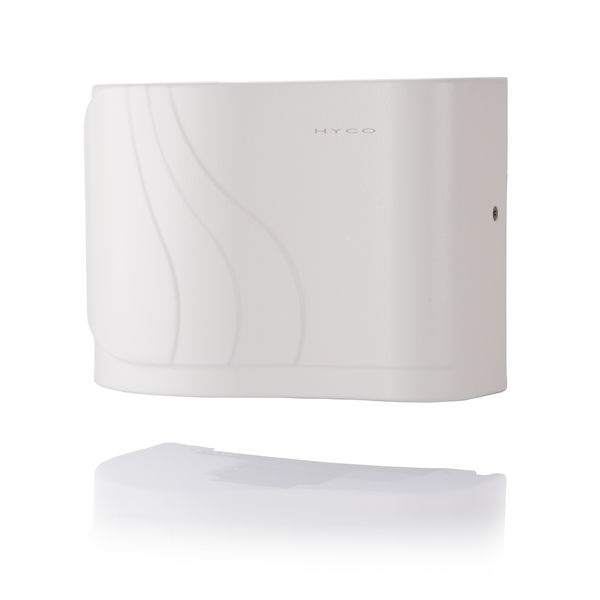

Hyco Cyclone 1.6 kW Automatic Traditional Hand Dryer White – HD1600
Part No Description
HD1600 Cyclone 1.6 kW Automatic Traditional Hand Dryer White
The Cyclone is a popular choice for projects requiring basic effectiveness and reliable performance, making it suitable for a range of applications. Where specification is for a challenging environment which is sensitive to high air speeds, heat level and noise disruption this hand dryer is an ideal solution. This will avoid the necessity to consider a less hygienic option such as paper towels. Suitable for a wide number of applications including schools, offices, restaurants and shops.
Features
- Traditional style
- Low air speed makes the hand dryer suitable for young school children
- Metal case
- Stylish design in ivory white
- 1.6 kW power rating
- Vandal resistant
Technical Specification
Outer Casing: White metal case
Heating Element: 1500 W
Motor: 100 W
Carbon brush
2850 RPM
Current: 7 amps
Air Speed: 12 m/s
Air Volume: 181 m3/h
Operation: Touch free automatic.
Safety: Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating: IPX1
Installation:
Full fixing pack supplied.
Cable entry bottom right at the base of the unit.
Electrical Connection:
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1m).
Class I
Approvals: CE, UKCA
Standard Warranty: 3 years parts or replacement warranty.
Data Tables
Power Consumption 13.3 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| HD1600 | Ivory white | 1.6 | 73 | 30 | 12 |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (mm) |
|---|---|---|---|---|
| HD1600 | 206 | 268 | 150 | 3.5 |
Dimensions: H 206mm x W 268mm x D 150mm
Weight: 3.5 Kg
