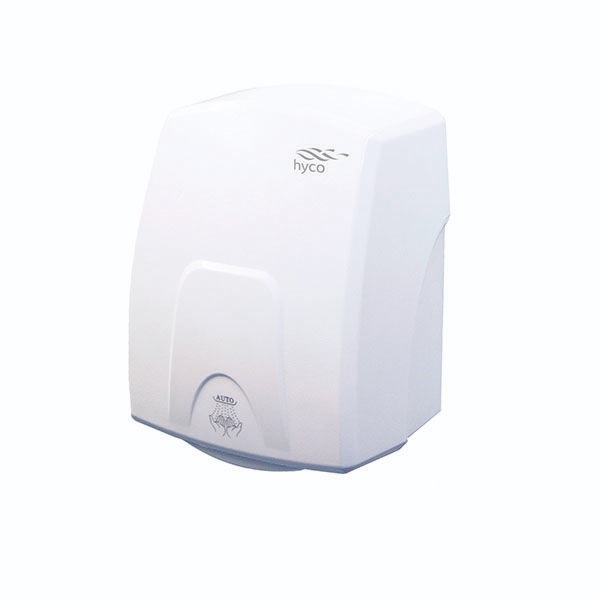

Hyco Contour 1.5 kW Automatic Traditional Hand Dryer White – CTRW
Part No Description
CTRW Contour 1.5 kW Automatic Traditional Hand Dryer White
Where project specification requires a more traditional, low speed hand dryer the Contour offers a stylish, unassuming solution that is versatile in its application. This is the ideal cost-effective option where budget is restricted. Despite being an economical choice this hand dryer maintains performance quality and aesthetic appeal. The compact ergonomic design with curved lines gives a contemporary look whilst the robust, durable design specification supports product reliability. Suitable for a wide number of applications including offices, restaurants and shops.
Features
- Compact stylish design
- Traditional high powered hand dryer
- Low air speed
- Hygienic automatic operation reduces the risk of spreading germs
- White finish
- Strong durable ABS cover
- 1.5 kW power rating
Technical Specification
Outer Casing: Durable ABS cover
Heating Element: 1430 W
Motor: 70 W
Carbon Brush
Current: 6.5 amps
Air Speed: 15 m/s
Air Volume: 88 m³/h
Operation: Touch free automatic.
Safety: Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating: IP22
Installation:
Full fixing pack supplied.
Cable entry bottom right at the base of the unit.
Electrical Connection:
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1m).
Class II
Approvals: CE, UKCA
Standard Warranty: 3 years parts or replacement warranty.
Data Tables
Power Consumption 10.4 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| CTRW | White | 1.5 | 76 | 25 | 15 |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| CTRW | 253 | 198 | 145 | 1.7 |
Dimensions: H 253mm x W 198mm x D 145mm
Weight: 1.7 Kg
