Greenbrook 7 Day Mechanical Timer Socket Box Mount 16A – T101A

T101A               7 Day Mechanical Timer Socket Box Mount 16A

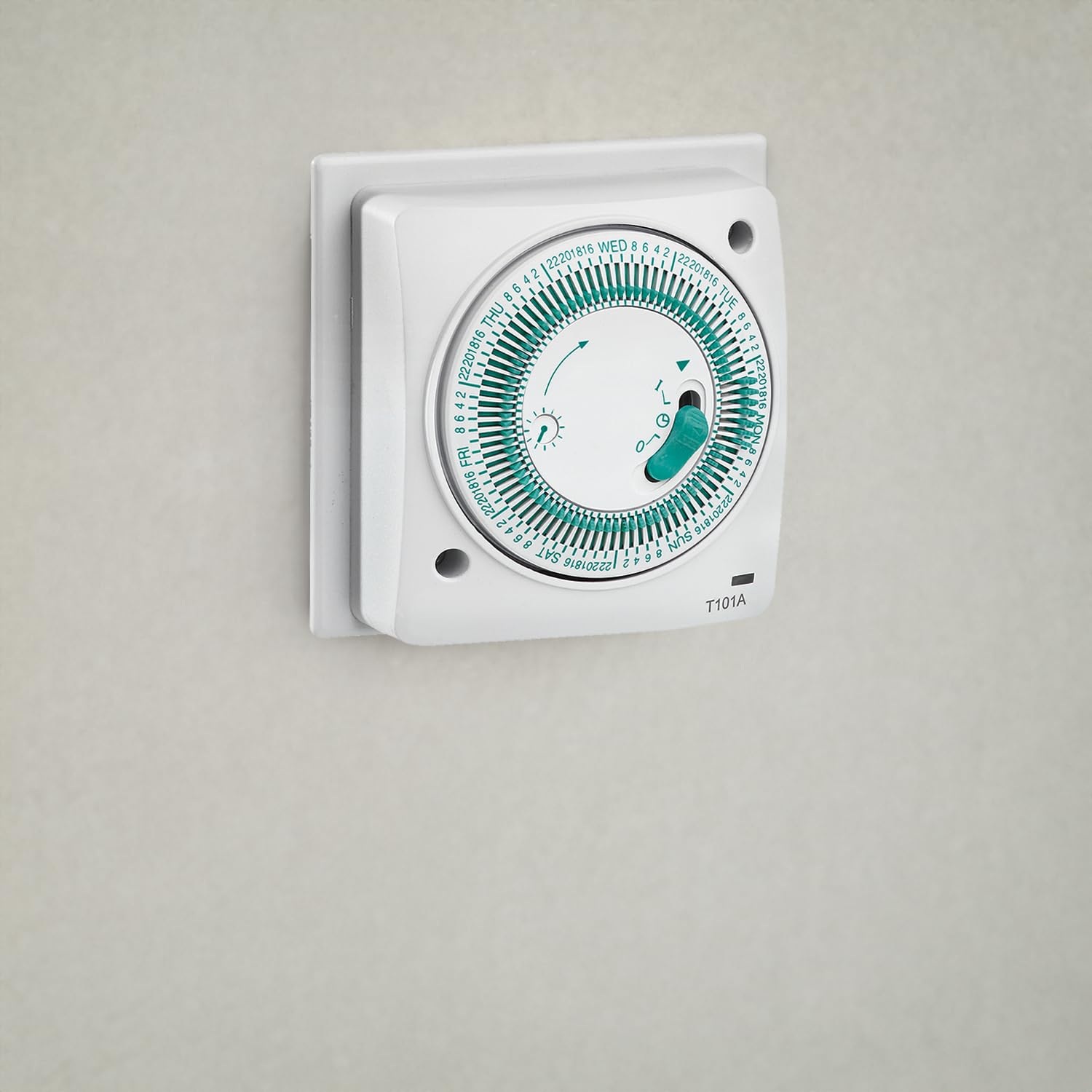

Greenbrook T101A 7 Day Mechanical Timer 16A – Socket Box Mounted

The Greenbrook T101A 7 Day Mechanical Timer is a reliable hard-wired timer designed to provide automatic weekly control of electrical appliances. Ideal for heating applications, the timer is rated at 16A and is suitable for controlling immersion heaters up to 3kW.

Featuring a simple mechanical dial, the T101A provides 84 ON/OFF settings across a 7-day programme, with a minimum switching time of 2 hours. An ON / Timed / OFF selector provides convenient manual override, allowing the connected appliance to be switched on or off independently of the programmed schedule when required.

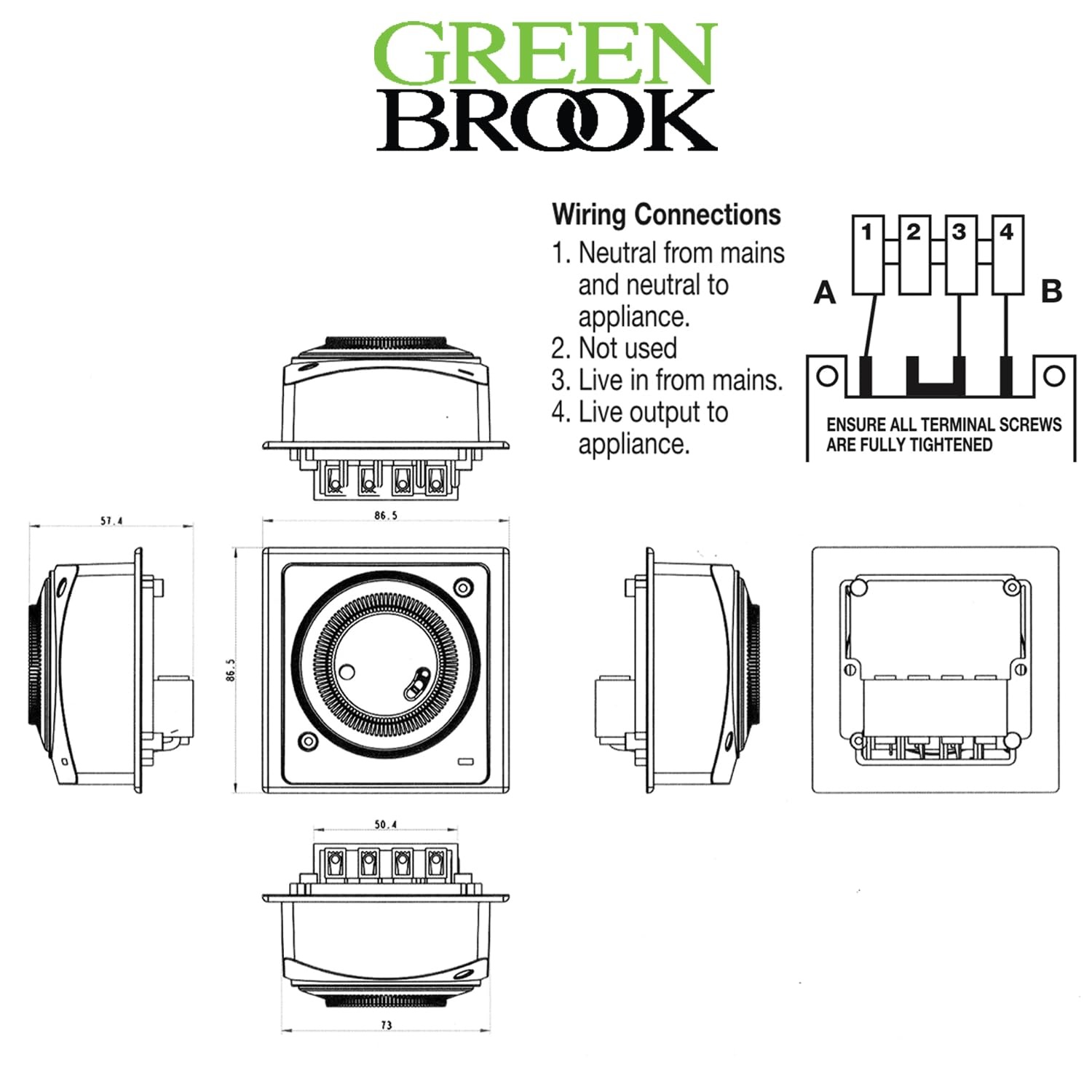

The timer is designed for flush mounting and will fit directly onto a 35mm deep socket box fitted with an earth terminal. It can also be fitted to a 35mm dual appliance socket box, making it suitable for installation alongside a fused spur or socket outlet. A built-in Timer ON status indicator provides a clear indication when the timer is operating.

Key Features

• 7-day mechanical timer
• Ideal for heating and immersion heater applications
• 16A maximum load
• Suitable for immersion heaters up to 3kW
• 84 ON/OFF settings
• 2-hour minimum switching time
• ON / Timed / OFF manual override
• Timer ON status indicator
• Single-channel operation
• Fits directly onto a 35mm deep socket box
• Suitable for 35mm dual appliance socket boxes
• Flush-mounted installation
• Durable polycarbonate construction
• White matt finish
• IP20 rated
• Operating temperature range of -10°C to +40°C
• 1-year Greenbrook guarantee
• CE and UKCA compliant

Technical Specification
