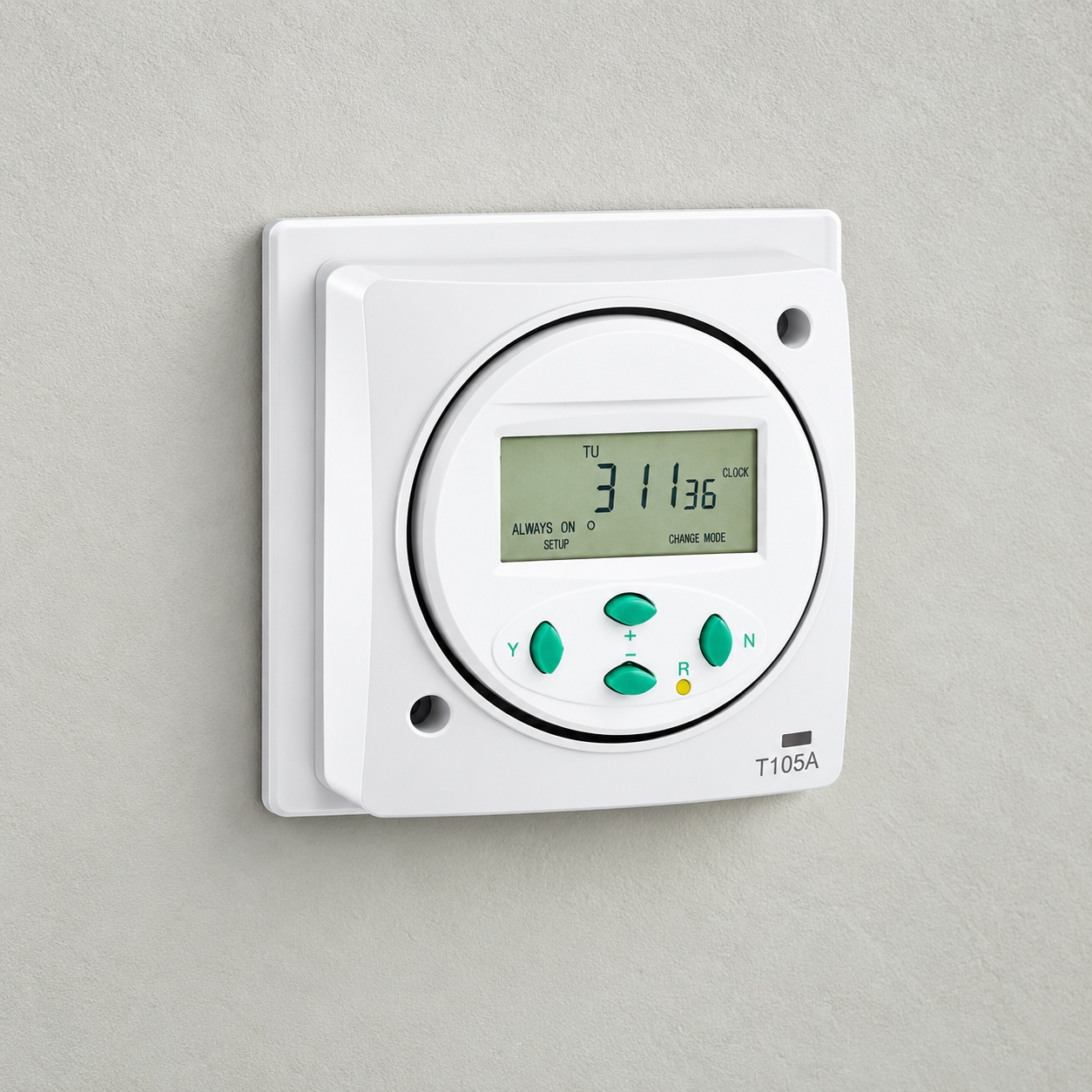

Greenbrook 7 Day Electronic Timer Socket Box Mount 16A – T105A

Greenbrook T105A 16A 7 Day Electronic Timer – Socket Box Mount

The Greenbrook T105A 7 Day Electronic Timer is a versatile hard-wired digital timer designed to provide accurate and convenient control of electrical appliances throughout the week. Rated at 16A, it is particularly suitable for heating applications, including immersion heaters up to 3kW.

Featuring an easy-to-read digital display and 1-minute settings, the T105A provides precise control over operating times, making it ideal where more accurate scheduling is required. A manual override function allows the connected appliance to be controlled independently of the programmed settings when required.

The T105A also incorporates battery backup, helping to retain timer operation/settings in the event of an interruption to the mains supply. A built-in Timer ON status indicator provides a clear visual indication of operation.

Designed for a neat flush-mounted installation, the timer fits directly onto a 35mm deep socket box fitted with an earth terminal. It can also be installed in a 35mm dual appliance socket box, allowing the timer to be conveniently positioned alongside a fused spur or socket outlet.

Key Features

• 7 day electronic timer
• 16A maximum load
• Suitable for immersion heaters up to 3kW
• Ideal for most heating applications
• Digital display
• 1-minute settings for accurate control
• Battery backup
• Manual override function
• Timer ON status indicator
• Single-channel operation
• Fits directly onto a 35mm deep socket box
• Suitable for a 35mm dual appliance socket box
• Flush mount installation
• White matt finish
• Polycarbonate construction
• IP20 rated
• Operating temperature range: -10°C to +55°C
• 1-year Greenbrook guarantee
• CE and UKCA compliant

Technical Specification
