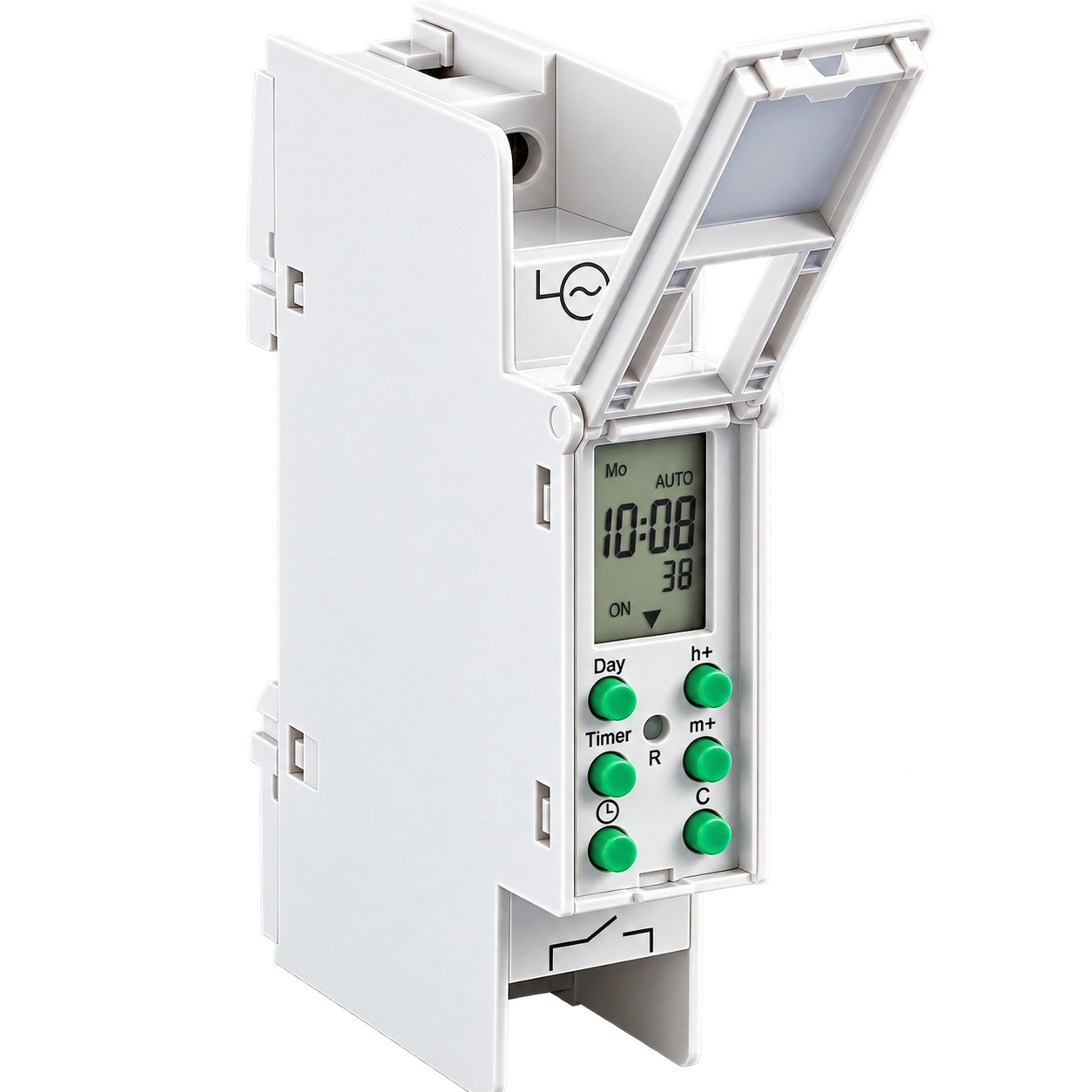

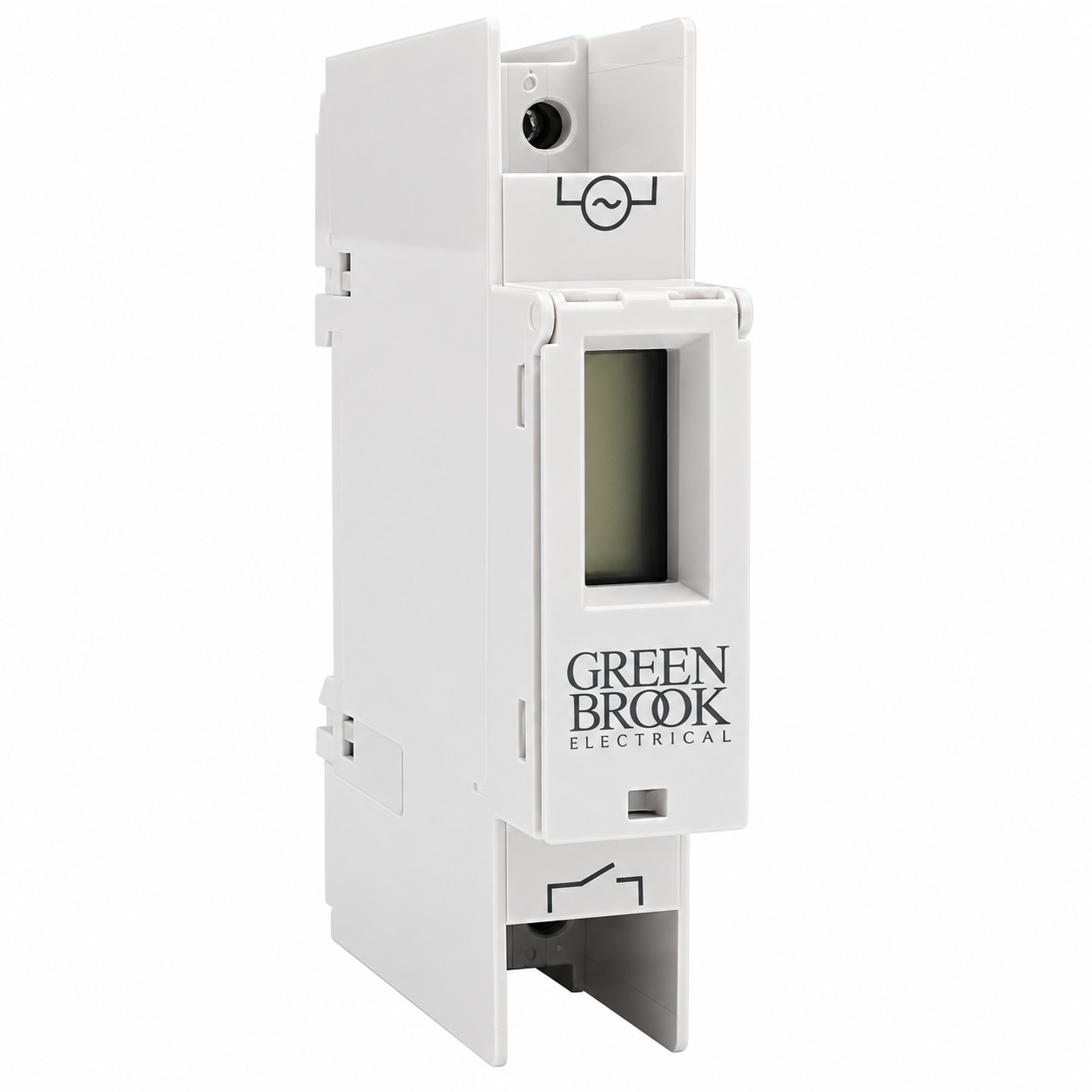

Greenbrook 7 Day Electronic Din Rail Mounted Timer – T80

The Greenbrook T80 Electronic DIN Rail Timer is a compact digital timer designed for installation within control panels and electrical enclosures, providing reliable automatic switching of connected equipment.

Offering a choice of 7-day or 24-hour programming, the T80 provides 6 programmable ON/OFF settings and a minimum switching time of just 1 minute, allowing accurate control of electrical loads throughout the day or week. It also features a volt-free contact, making it suitable for a variety of control applications.

The timer features a clear digital display, battery backup and manual override facility. Its slim 19mm-wide DIN rail design makes efficient use of space inside control panels, while the polycarbonate construction provides a durable housing for indoor installations.

Rated at 230V AC with a maximum load of 3kW, the T80 is designed for straightforward hard-wired installation and is supplied with a 1-year Greenbrook guarantee.

Key Features

• Electronic digital DIN rail timer
• Designed for use within control panels
• 7-day or 24-hour programming
• 6 programmable ON/OFF settings
• 1-minute minimum switching time
• Volt-free contact
• Digital display
• Manual override facility
• Battery backup
• Single-channel operation
• Maximum load 3kW

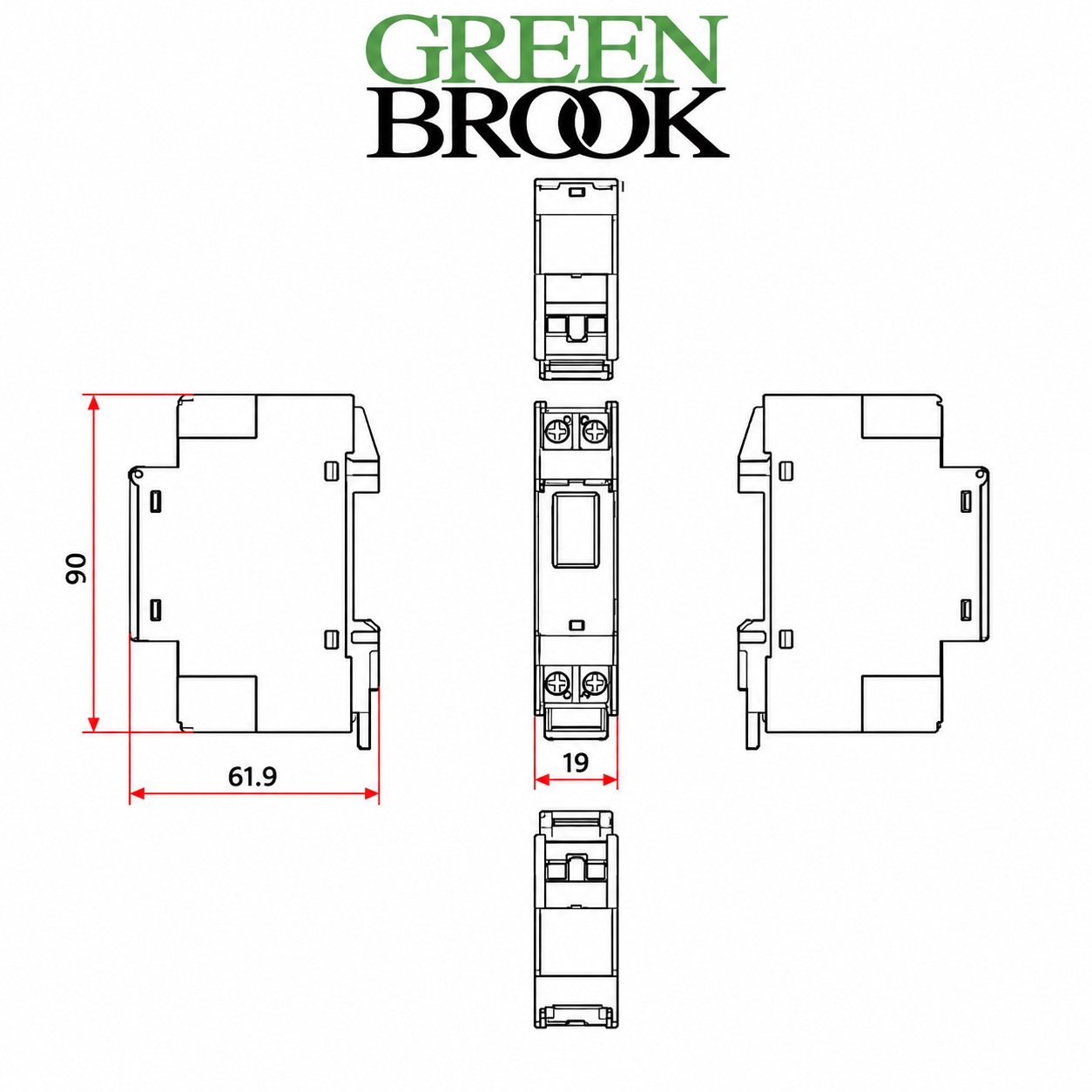

• Slim 19mm width
• DIN rail mounting
• Hard-wired connection
• Durable polycarbonate body
• IP20 rated
• Class II
• Suitable for indoor use
• Easy to set
• UKCA compliant
• 1-year Greenbrook guarantee

Technical Specification
